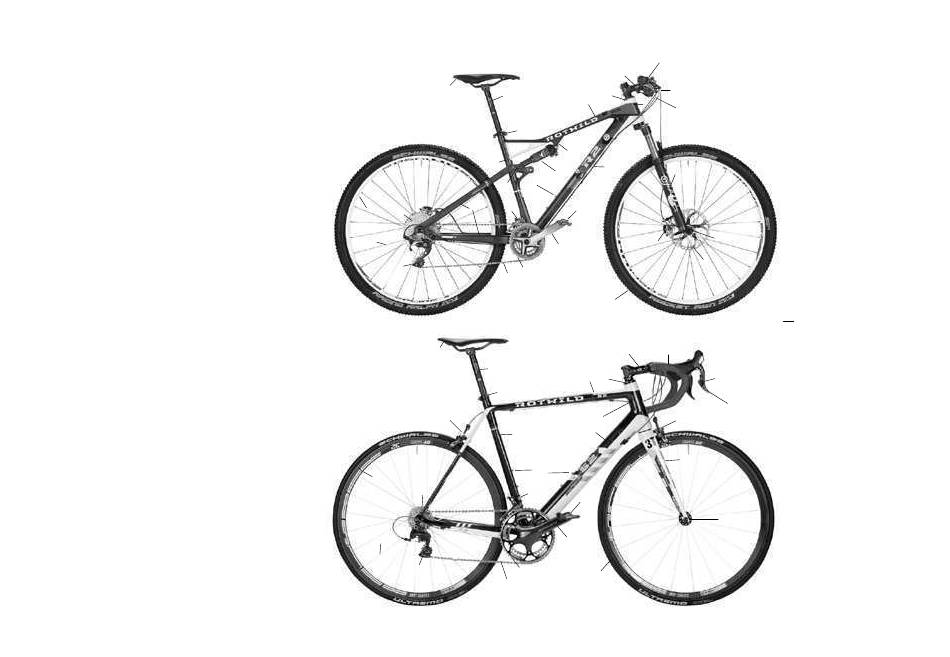

OVERVIEW MOUNTAIN BIKE AND ROAD BIKE
. Top tube
2. Down tube
3. Seat tube
4. Head tube
5. Stem
6. Headset
7. Rim brake
8. Brake lever
9. Shift lever
0. Suspension fork / fork
. Hub
2. Rear derailleur
3. Front derailleur
4. chain
5. chain rings
6. crank
7. Pedals
8. Tyres / tube
9. Rim
20. Spoke
2. Sprocket
22. Seat post
23. Saddle
24. Bottle cage mountings
25. Rear shock
26. Disc mounting
27. Rear frame / swingarm
28. Rear shock mounting, main frame
29. Rear shock linkage
30. Seat clamp
3. Handlebar
32. Disc brake
These illustrations are examples, the equipment and
specification of your personal bike can differ.
