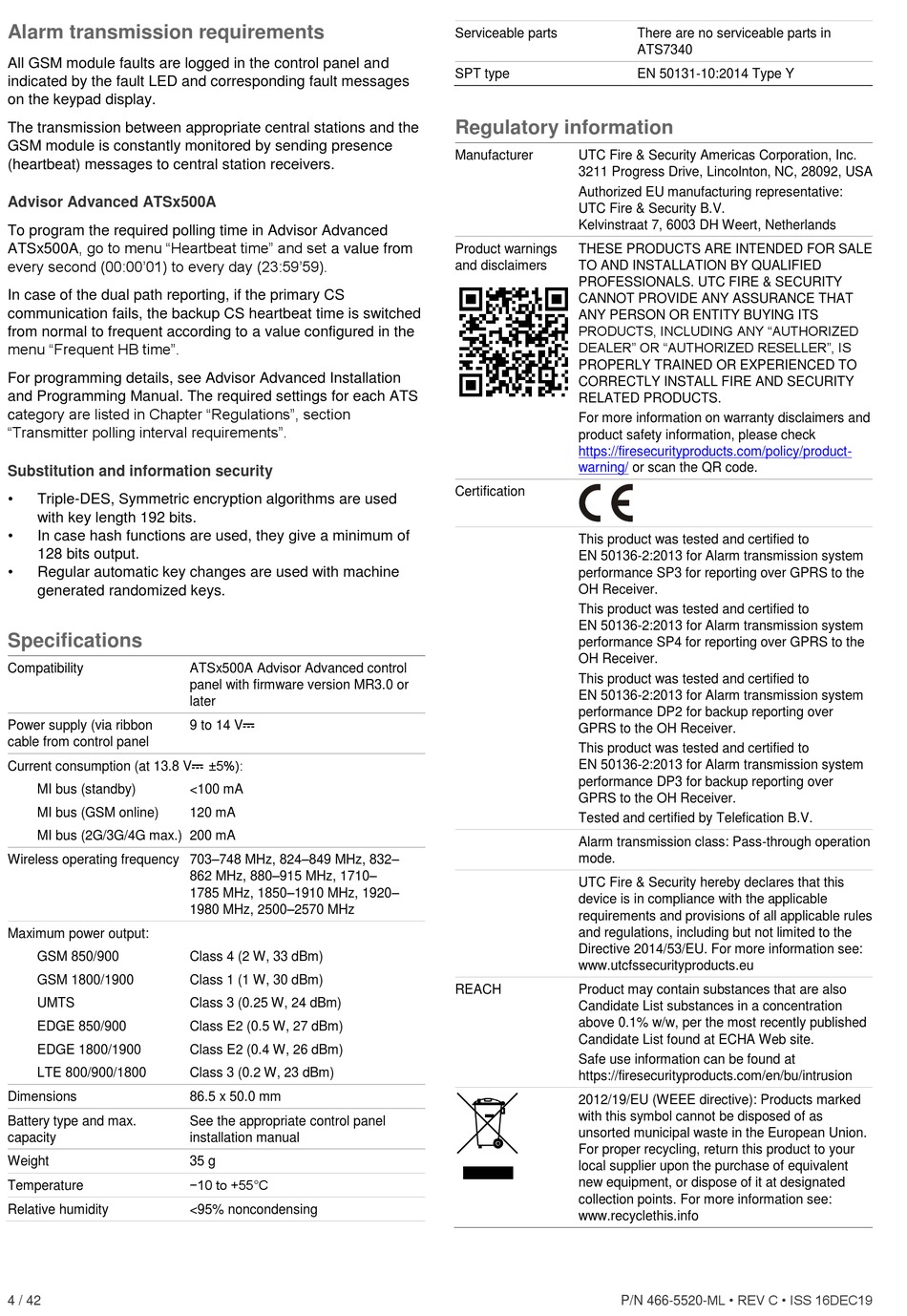

Alarm transmission requirements
All GSM module faults are logged in the control panel and
indicated by the fault LED and corresponding fault messages
on the keypad display.
The transmission between appropriate central stations and the
GSM module is constantly monitored by sending presence
(heartbeat) messages to central station receivers.
Advisor Advanced ATSx500A
To program the required polling time in Advisor Advanced
ATSx500A, go to menu "Heartbeat time" and set a value from
every second (00:00'01) to every day (23:59'59).
In case of the dual path reporting, if the primary CS
communication fails, the backup CS heartbeat time is switched
from normal to frequent according to a value configured in the
menu "Frequent HB time".
For programming details, see Advisor Advanced Installation
and Programming Manual. The required settings for each ATS
category are listed in Chapter "Regulations", section
"Transmitter polling interval requirements".
Substitution and information security
•
Triple-DES, Symmetric encryption algorithms are used
with key length 192 bits.
•
In case hash functions are used, they give a minimum of
128 bits output.
•
Regular automatic key changes are used with machine
generated randomized keys.

Specifications

Compatibility
Power supply (via ribbon
cable from control panel
Current consumption (at 13.8 V
MI bus (standby)
MI bus (GSM online)
MI bus (2G/3G/4G max.) 200 mA
Wireless operating frequency 703–748 MHz, 824–849 MHz, 832–
Maximum power output:
GSM 850/900
GSM 1800/1900
UMTS
EDGE 850/900
EDGE 1800/1900
LTE 800/900/1800
Dimensions
Battery type and max.
capacity
Weight
Temperature
Relative humidity
4 / 42
ATSx500A Advisor Advanced control
panel with firmware version MR3.0 or
later
9 to 14 V
±5%):
<100 mA
120 mA
862 MHz, 880–915 MHz, 1710–
1785 MHz, 1850–1910 MHz, 1920–
1980 MHz, 2500–2570 MHz
Class 4 (2 W, 33 dBm)
Class 1 (1 W, 30 dBm)
Class 3 (0.25 W, 24 dBm)
Class E2 (0.5 W, 27 dBm)
Class E2 (0.4 W, 26 dBm)
Class 3 (0.2 W, 23 dBm)
86.5 x 50.0 mm
See the appropriate control panel
installation manual
35 g
−10 to +55°C
<95% noncondensing
Serviceable parts
SPT type

Regulatory information

Manufacturer UTC Fire & Security Americas Corporation, Inc.
3211 Progress Drive, Lincolnton, NC, 28092, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, Netherlands
Product warnings THESE PRODUCTS ARE INTENDED FOR SALE
and disclaimers TO AND INSTALLATION BY QUALIFIED
PROFESSIONALS. UTC FIRE & SECURITY
CANNOT PROVIDE ANY ASSURANCE THAT
ANY PERSON OR ENTITY BUYING ITS
PRODUCTS, INCLUDING ANY "AUTHORIZED
DEALER" OR "AUTHORIZED RESELLER", IS
PROPERLY TRAINED OR EXPERIENCED TO
CORRECTLY INSTALL FIRE AND SECURITY
RELATED PRODUCTS.
For more information on warranty disclaimers and
product safety information, please check
https://firesecurityproducts.com/policy/product-
warning/
Certification
This product was tested and certified to
EN 50136-2:2013 for Alarm transmission system
performance SP3 for reporting over GPRS to the
OH Receiver.
This product was tested and certified to
EN 50136-2:2013 for Alarm transmission system
performance SP4 for reporting over GPRS to the
OH Receiver.
This product was tested and certified to
EN 50136-2:2013 for Alarm transmission system
performance DP2 for backup reporting over
GPRS to the OH Receiver.
This product was tested and certified to
EN 50136-2:2013 for Alarm transmission system
performance DP3 for backup reporting over
GPRS to the OH Receiver.
Tested and certified by Telefication B.V.
Alarm transmission class: Pass-through operation
mode.
UTC Fire & Security hereby declares that this
device is in compliance with the applicable
requirements and provisions of all applicable rules
and regulations, including but not limited to the
Directive 2014/53/EU. For more information see:
www.utcfssecurityproducts.eu
REACH Product may contain substances that are also
Candidate List substances in a concentration
above 0.1% w/w, per the most recently published
Candidate List found at ECHA Web site.
Safe use information can be found at
https://firesecurityproducts.com/en/bu/intrusion
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as
unsorted municipal waste in the European Union.
For proper recycling, return this product to your
local supplier upon the purchase of equivalent
new equipment, or dispose of it at designated
collection points. For more information see:
www.recyclethis.info
P/N 466-5520-ML • REV C • ISS 16DEC19
There are no serviceable parts in
ATS7340
EN 50131-10:2014 Type Y
or scan the QR code.
