Specifications; Da: Installations Vejledning - Interlogix ATS7310 Installationsanleitung

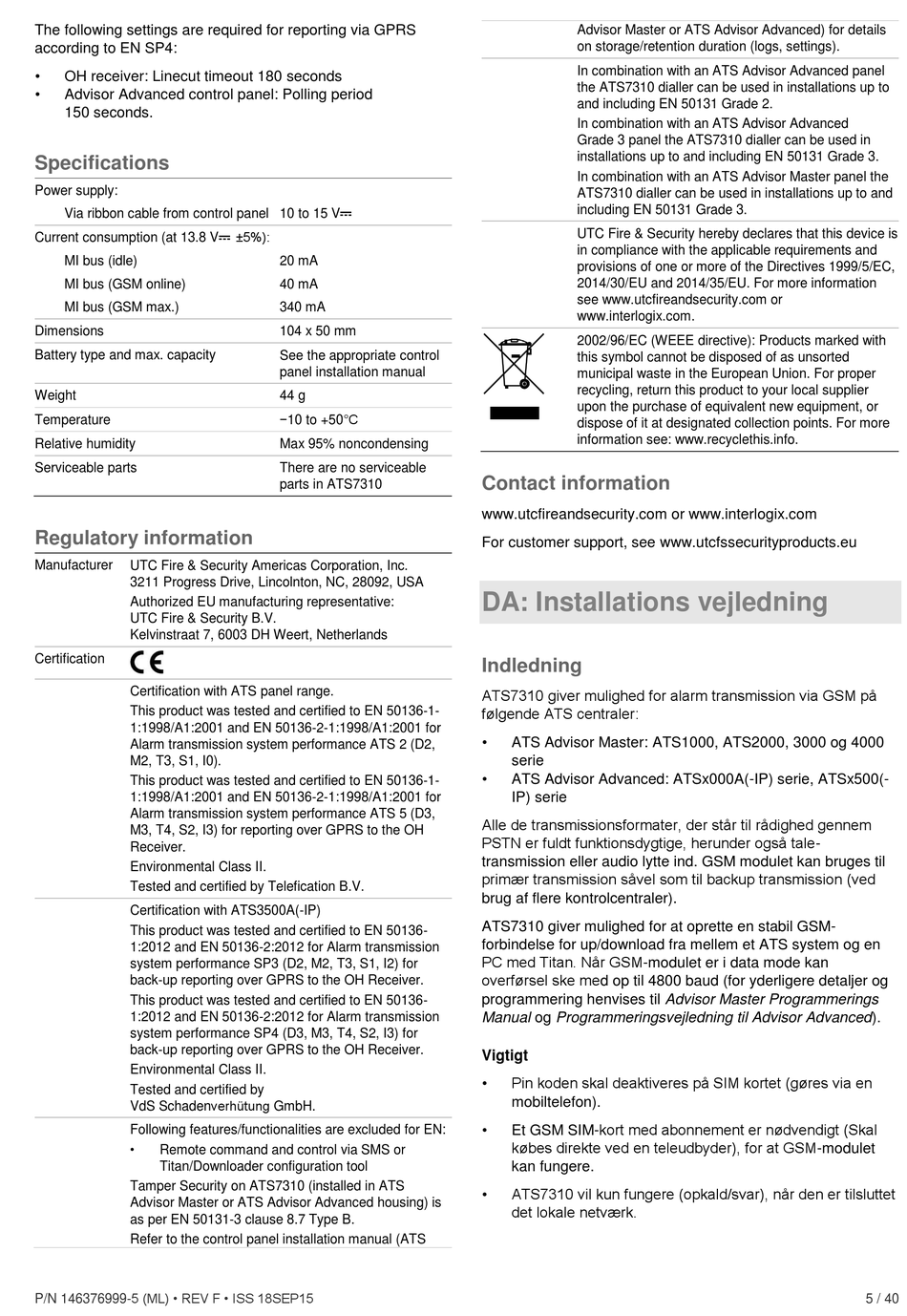

The following settings are required for reporting via GPRS
according to EN SP4:
•
OH receiver: Linecut timeout 180 seconds
•
Advisor Advanced control panel: Polling period
150 seconds.

Specifications

Power supply:
Via ribbon cable from control panel 10 to 15 V
Current consumption (at 13.8 V
MI bus (idle)
MI bus (GSM online)
MI bus (GSM max.)
Dimensions
Battery type and max. capacity
Weight
Temperature
Relative humidity
Serviceable parts
Regulatory information
Manufacturer UTC Fire & Security Americas Corporation, Inc.
3211 Progress Drive, Lincolnton, NC, 28092, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, Netherlands
Certification
Certification with ATS panel range.
This product was tested and certified to EN 50136-1-
1:1998/A1:2001 and EN 50136-2-1:1998/A1:2001 for
Alarm transmission system performance ATS 2 (D2,
M2, T3, S1, I0).
This product was tested and certified to EN 50136-1-
1:1998/A1:2001 and EN 50136-2-1:1998/A1:2001 for
Alarm transmission system performance ATS 5 (D3,
M3, T4, S2, I3) for reporting over GPRS to the OH
Receiver.
Environmental Class II.
Tested and certified by Telefication B.V.
Certification with ATS3500A(-IP)
This product was tested and certified to EN 50136-
1:2012 and EN 50136-2:2012 for Alarm transmission
system performance SP3 (D2, M2, T3, S1, I2) for
back-up reporting over GPRS to the OH Receiver.
This product was tested and certified to EN 50136-
1:2012 and EN 50136-2:2012 for Alarm transmission
system performance SP4 (D3, M3, T4, S2, I3) for
back-up reporting over GPRS to the OH Receiver.
Environmental Class II.
Tested and certified by
VdS Schadenverhütung GmbH.
Following features/functionalities are excluded for EN:
•
Remote command and control via SMS or
Titan/Downloader configuration tool
Tamper Security on ATS7310 (installed in ATS
Advisor Master or ATS Advisor Advanced housing) is
as per EN 50131-3 clause 8.7 Type B.
Refer to the control panel installation manual (ATS
P/N 146376999-5 (ML) • REV F • ISS 18SEP15
±5%):
20 mA
40 mA
340 mA
104 x 50 mm
See the appropriate control
panel installation manual
44 g
−10 to +50°C
Max 95% noncondensing
There are no serviceable
parts in ATS7310
Advisor Master or ATS Advisor Advanced) for details
on storage/retention duration (logs, settings).
In combination with an ATS Advisor Advanced panel
the ATS7310 dialler can be used in installations up to
and including EN 50131 Grade 2.
In combination with an ATS Advisor Advanced
Grade 3 panel the ATS7310 dialler can be used in
installations up to and including EN 50131 Grade 3.
In combination with an ATS Advisor Master panel the
ATS7310 dialler can be used in installations up to and
including EN 50131 Grade 3.
UTC Fire & Security hereby declares that this device is
in compliance with the applicable requirements and
provisions of one or more of the Directives 1999/5/EC,
2014/30/EU and 2014/35/EU. For more information
see www.utcfireandsecurity.com or
www.interlogix.com.
2002/96/EC (WEEE directive): Products marked with
this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more
information see: www.recyclethis.info.
Contact information
www.utcfireandsecurity.com or www.interlogix.com
For customer support, see www.utcfssecurityproducts.eu

DA: Installations vejledning

Indledning
ATS7310 giver mulighed for alarm transmission via GSM på
følgende ATS centraler:
•
ATS Advisor Master: ATS1000, ATS2000, 3000 og 4000
serie
•
ATS Advisor Advanced: ATSx000A(-IP) serie, ATSx500(-
IP) serie
Alle de transmissionsformater, der står til rådighed gennem
PSTN er fuldt funktionsdygtige, herunder også tale-
transmission eller audio lytte ind. GSM modulet kan bruges til
primær transmission såvel som til backup transmission (ved
brug af flere kontrolcentraler).
ATS7310 giver mulighed for at oprette en stabil GSM-
forbindelse for up/download fra mellem et ATS system og en
PC med Titan. Når GSM-modulet er i data mode kan
overførsel ske med op til 4800 baud (for yderligere detaljer og
programmering henvises til Advisor Master Programmerings
Manual og Programmeringsvejledning til Advisor Advanced).
Vigtigt
• Pin koden skal deaktiveres på SIM kortet (gøres via en
mobiltelefon).
• Et GSM SIM-kort med abonnement er nødvendigt (Skal
købes direkte ved en teleudbyder), for at GSM-modulet
kan fungere.
• ATS7310 vil kun fungere (opkald/svar), når den er tilsluttet
det lokale netværk.
