Setting of the end positions

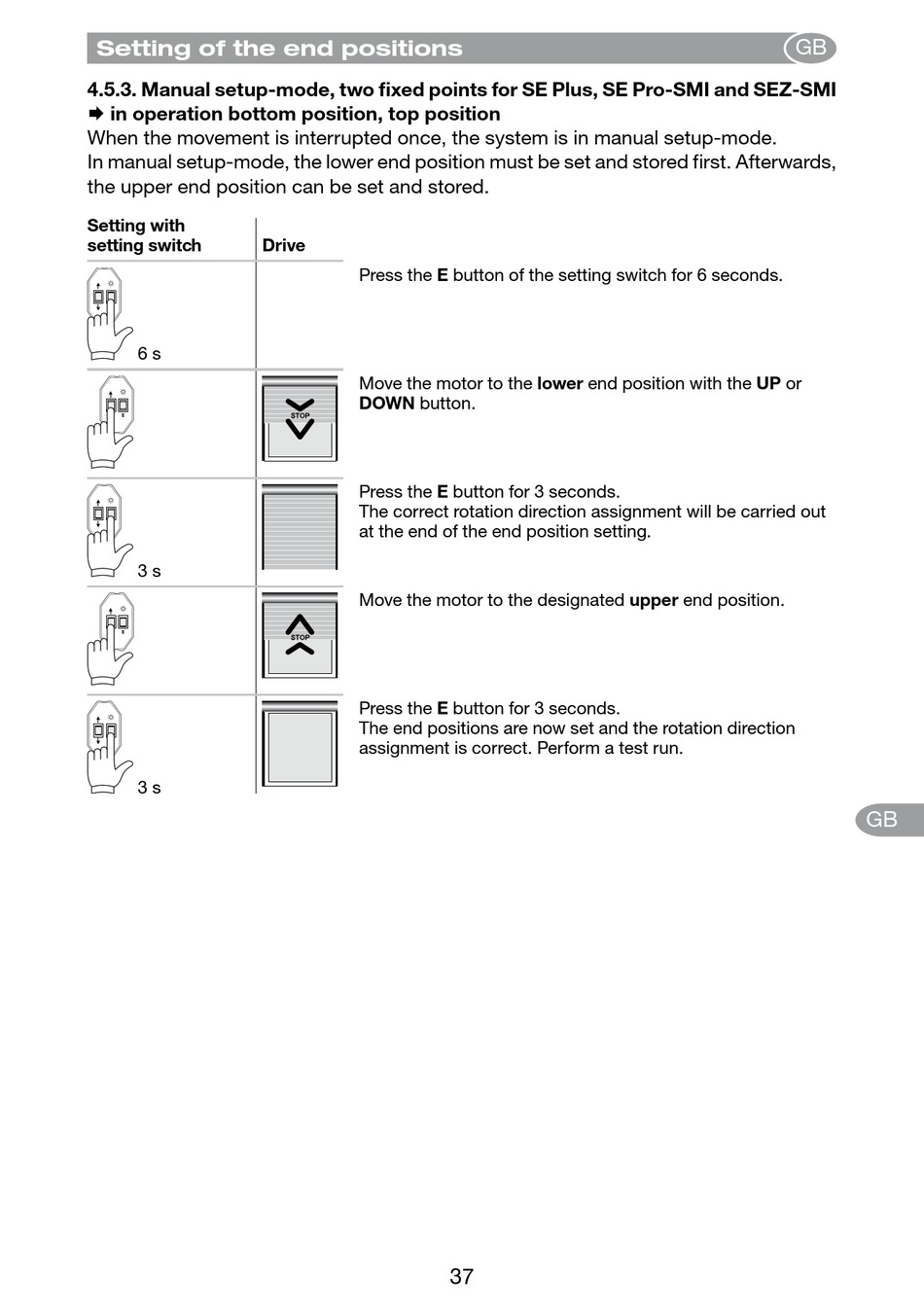

4.5.3. Manual setup-mode, two fixed points for SE Plus, SE Pro-SMI and SEZ-SMI

 in operation bottom position, top position
When the movement is interrupted once, the system is in manual setup­mode.
In manual setup­mode, the lower end position must be set and stored first. Afterwards,
the upper end position can be set and stored.
Setting with
setting switch
E
6 s
E
E
3 s
E
E
3 s
Drive
Press the E button of the setting switch for 6 seconds.
Move the motor to the lower end position with the UP or
DOWN button.
Press the E button for 3 seconds.
The correct rotation direction assignment will be carried out
at the end of the end position setting.
Move the motor to the designated upper end position.
Press the E button for 3 seconds.
The end positions are now set and the rotation direction
assignment is correct. Perform a test run.
