2 Instrument Components

Instrument
components part
1 of 2

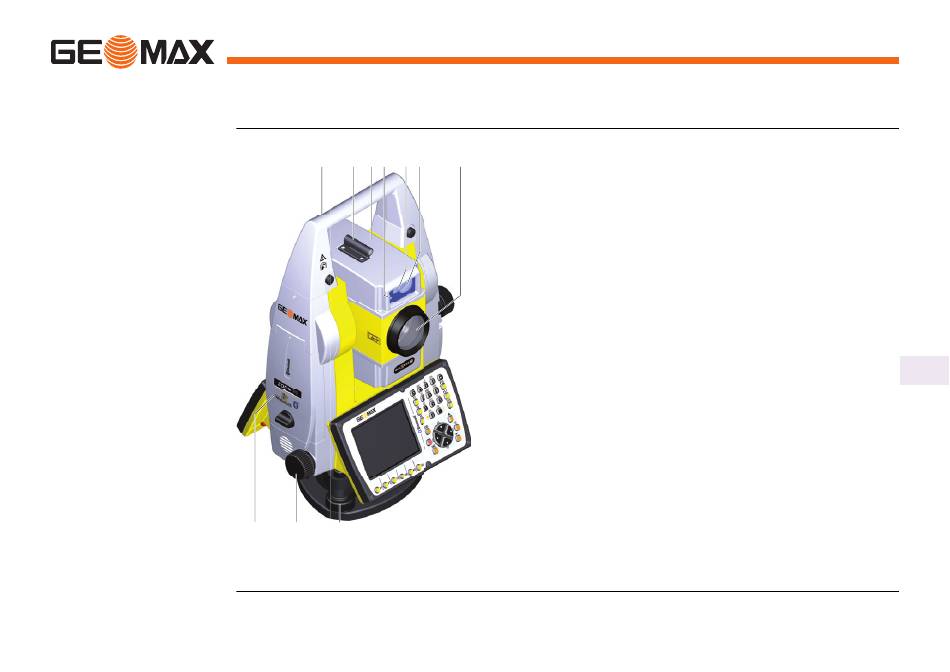

Instrument Components
a b c d e f
h i j
009835_001
www.rusgeocom.ru
g
a) Carry handle
b) Optical sight
c) Telescope, integrating EDM, AiM,
NavLight, Scout
d) NavLight flashing diode - yellow
and red
e) Scout, transmitter
f) Scout, receiver
g) Coaxial optics for angle and
distance measurement, and exit
port of visible laser beam for
distance measurements
h) Communication side cover
i) Horizontal drive
j) Tribrach securing screw
