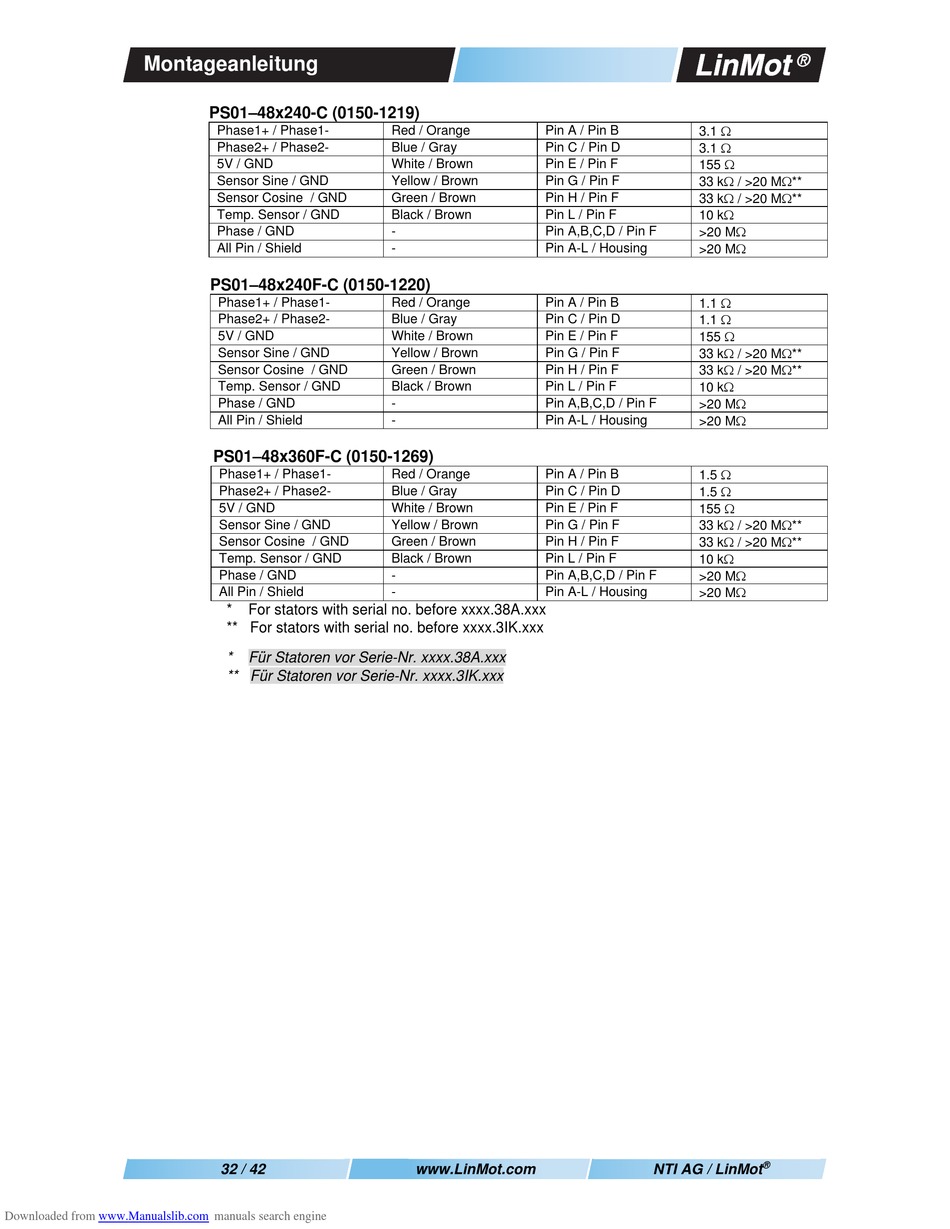

PS01–48x240-C (0150-1219)
Phase1+ / Phase1-
Phase2+ / Phase2-
5V / GND
Sensor Sine / GND
Sensor Cosine / GND
Temp. Sensor / GND
Phase / GND
All Pin / Shield
PS01–48x240F-C (0150-1220)
Phase1+ / Phase1-
Phase2+ / Phase2-
5V / GND
Sensor Sine / GND
Sensor Cosine / GND
Temp. Sensor / GND
Phase / GND
All Pin / Shield
PS01–48x360F-C (0150-1269)
Phase1+ / Phase1-
Phase2+ / Phase2-
5V / GND
Sensor Sine / GND
Sensor Cosine / GND
Temp. Sensor / GND
Phase / GND
All Pin / Shield
* For stators with serial no. before xxxx.38A.xxx
** For stators with serial no. before xxxx.3IK.xxx
* Für Statoren vor Serie-Nr. xxxx.38A.xxx
** Für Statoren vor Serie-Nr. xxxx.3IK.xxx
32 / 42
manuals search engine
Red / Orange Pin A / Pin B
Blue / Gray Pin C / Pin D
White / Brown Pin E / Pin F
Yellow / Brown Pin G / Pin F
Green / Brown Pin H / Pin F
Black / Brown Pin L / Pin F
- Pin A,B,C,D / Pin F
- Pin A-L / Housing
Red / Orange Pin A / Pin B
Blue / Gray Pin C / Pin D
White / Brown Pin E / Pin F
Yellow / Brown Pin G / Pin F
Green / Brown Pin H / Pin F
Black / Brown Pin L / Pin F
- Pin A,B,C,D / Pin F
- Pin A-L / Housing
Red / Orange Pin A / Pin B
Blue / Gray Pin C / Pin D
White / Brown Pin E / Pin F
Yellow / Brown Pin G / Pin F
Green / Brown Pin H / Pin F
Black / Brown Pin L / Pin F
- Pin A,B,C,D / Pin F
- Pin A-L / Housing
www.LinMot.com
3.1 
3.1 
155 
33 k / >20 M**
33 k / >20 M**
10 k
>20 M
>20 M
1.1 
1.1 
155 
33 k / >20 M**
33 k / >20 M**
10 k
>20 M
>20 M
1.5 
1.5 
155 
33 k / >20 M**
33 k / >20 M**
10 k
>20 M
>20 M
®
NTI AG / LinMot
