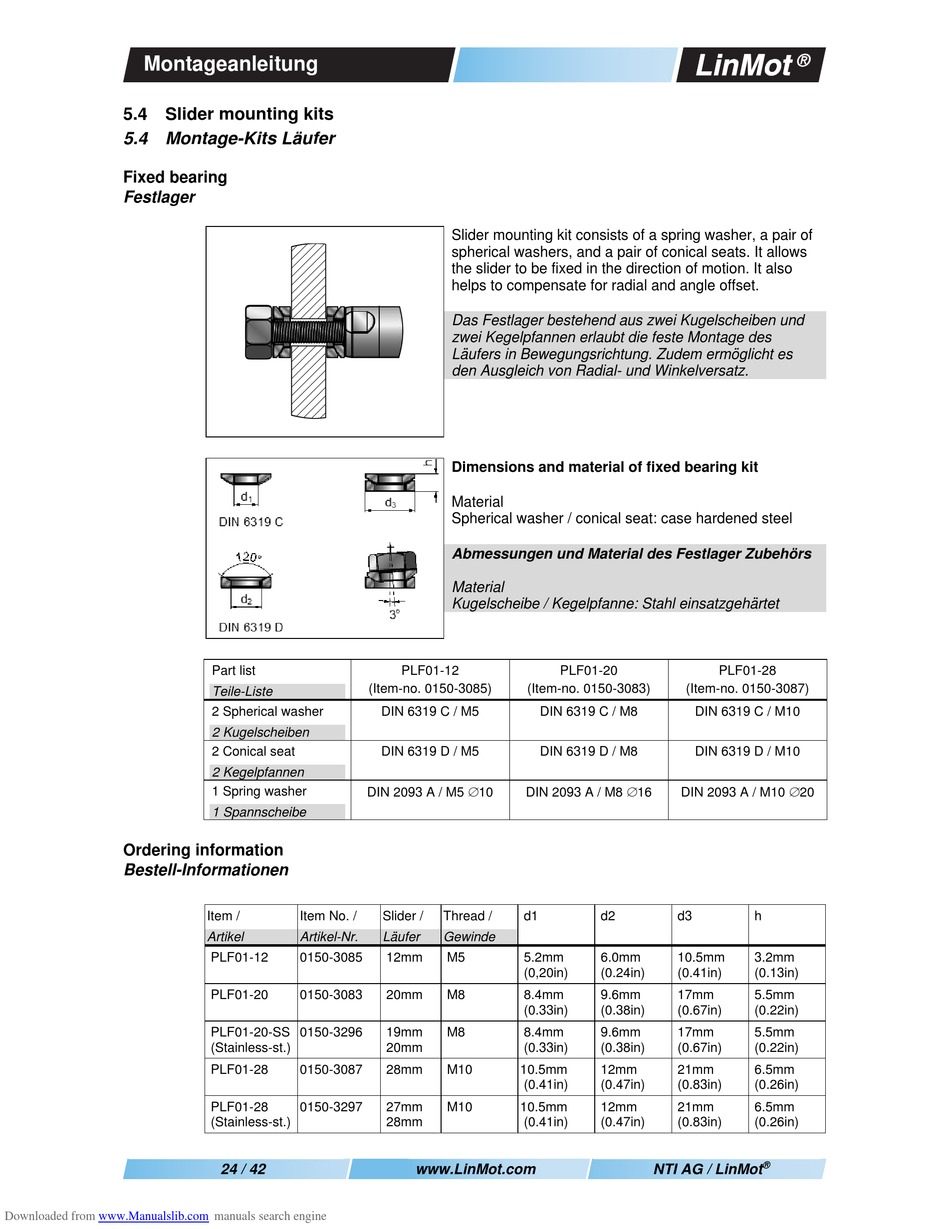

5.4 Slider mounting kits

5.4 Montage-Kits Läufer
Fixed bearing
Festlager
Ordering information
Bestell-Informationen
Downloaded from www.Manualslib.com
Part list
(Item-no. 0150-3085)
Teile-Liste
2 Spherical washer DIN 6319 C / M5
2 Kugelscheiben
2 Conical seat DIN 6319 D / M5
2 Kegelpfannen
DIN 2093 A / M5 10
1 Spring washer
1 Spannscheibe
Item / Item No. / Slider /
Artikel Artikel-Nr. Läufer
PLF01-12 0150-3085 12mm
PLF01-20 0150-3083 20mm
PLF01-20-SS 0150-3296 19mm
(Stainless-st.) 20mm
PLF01-28 0150-3087 28mm
PLF01-28 0150-3297 27mm
(Stainless-st.) 28mm
24 / 42
manuals search engine
Slider mounting kit consists of a spring washer, a pair of
spherical washers, and a pair of conical seats. It allows
the slider to be fixed in the direction of motion. It also
helps to compensate for radial and angle offset.
Das Festlager bestehend aus zwei Kugelscheiben und
zwei Kegelpfannen erlaubt die feste Montage des
Läufers in Bewegungsrichtung. Zudem ermöglicht es
den Ausgleich von Radial- und Winkelversatz.
Dimensions and material of fixed bearing kit
Material
Spherical washer / conical seat: case hardened steel
Abmessungen und Material des Festlager Zubehörs
Material
Kugelscheibe / Kegelpfanne: Stahl einsatzgehärtet
PLF01-12 PLF01-20
(Item-no. 0150-3083)
DIN 6319 C / M8
DIN 6319 D / M8
DIN 2093 A / M8 16
Thread / d1
Gewinde
M5 5.2mm
(0,20in)
M8 8.4mm
(0.33in)
M8 8.4mm
(0.33in)
M10 10.5mm
(0.41in)
M10 10.5mm
(0.41in)
www.LinMot.com
PLF01-28
(Item-no. 0150-3087)
DIN 6319 C / M10
DIN 6319 D / M10
DIN 2093 A / M10 20
d2 d3 h
6.0mm 10.5mm 3.2mm
(0.24in) (0.41in) (0.13in)
9.6mm 17mm 5.5mm
(0.38in) (0.67in) (0.22in)
9.6mm 17mm 5.5mm
(0.38in) (0.67in) (0.22in)
12mm 21mm 6.5mm
(0.47in) (0.83in) (0.26in)
12mm 21mm 6.5mm
(0.47in) (0.83in) (0.26in)
®
NTI AG / LinMot
