Removing the Double Furnace Solids Module
10. Install the combustion tube for vertical operation (see section "Removing the combus-
tion tube" in the operating manual of the analyzer).
12

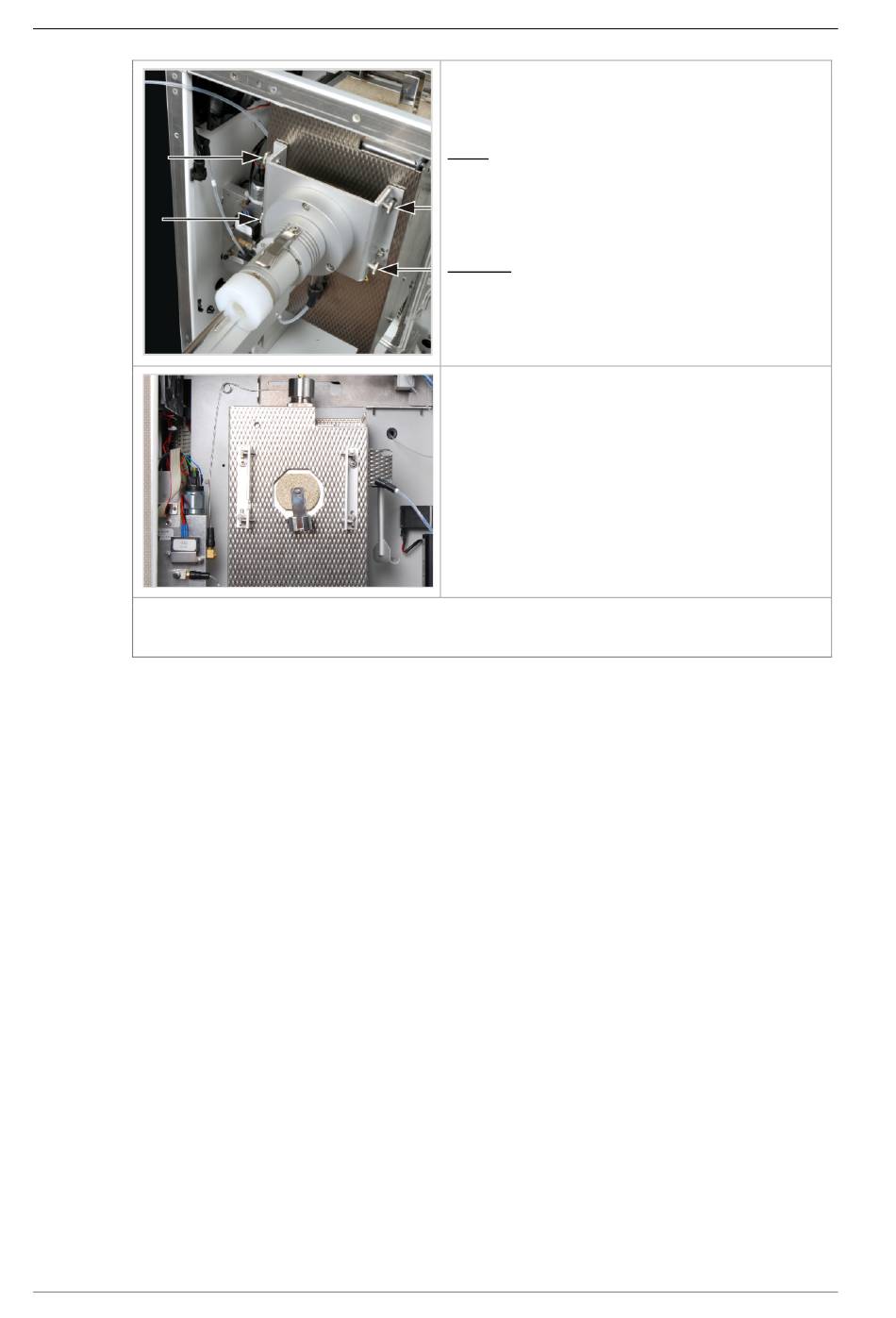

8. Loosen the four knurled head screws at the
holding plate and pull the solids module out
of the opening of the combustion furnace.
Note:
The gas transfer hose and holding plate may
remain connected to the solids module. This
makes it easier to install the solids module the
next time.
Caution:
Do not unscrew the angle profiles from the fur-
nace! They are preadjusted and guarantee the
correct position of the solids module during instal-
lation.
9. Remove the sealing plug from the vertical
opening of the combustion furnace and
place it onto the horizontal opening of the
combustion furnace.
Edition 05/2011 Double Furnace Solids Module
