Installing the Double Furnace Solids Module

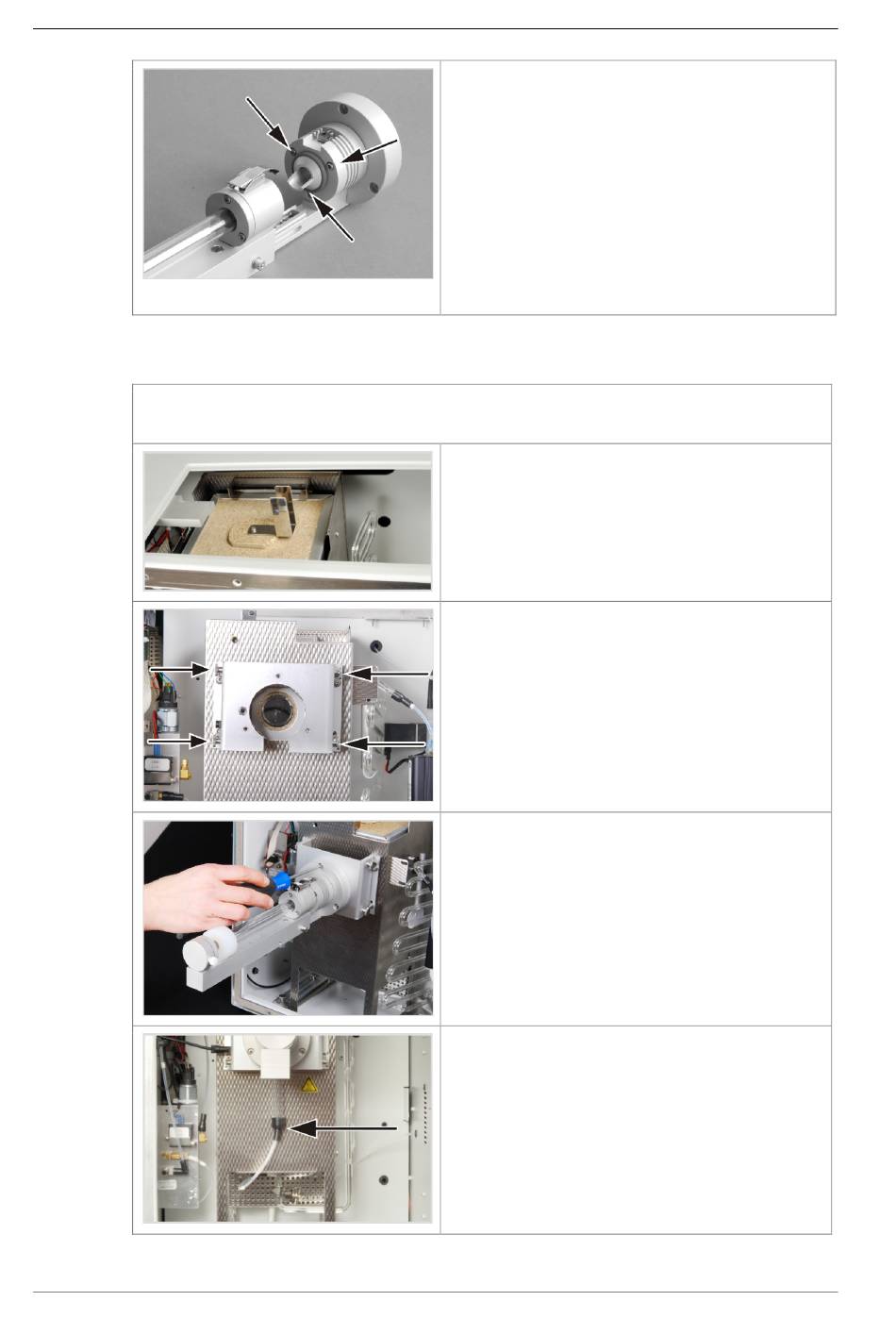

Installing the solids module

1. Remove the combustion tube for vertical operation (see section "Removing the com-
bustion tube" in the operating manuals of the analyzers).
6
6. Release the three hexagon socket screws
with the corresponding angular screwdriver
by half a turn. Do not fully unscrew the hexa-
gon socket screws.
7. Slide the filled combustion tube up to the
stop at the inner ring into the Double Furnace
Solids Module. The adapter of the gas outlet
must then point down.
8. Tighten the hexagon socket screws tightly.
9. Close the furnace lock.
2. Remove the sealing plug from the horizontal
opening of the combustion furnace and
place it onto the vertical opening of the com-
bustion furnace.
3. Attach the holding plate with the four knurled
head screws to the angular profiles in front
of the horizontal opening of the combustion
furnace.
4. Insert the solids module into the horizontal
opening of the combustion furnace. The
adapter of the combustion tube points down.
5. Attach the solids module with three hexagon
socket screws to the holding plate.
6. Attach the gas transfer hose to the adapter
of the combustion tube.
