Double Furnace Solids Module
Installing the Double Furnace Solids Module

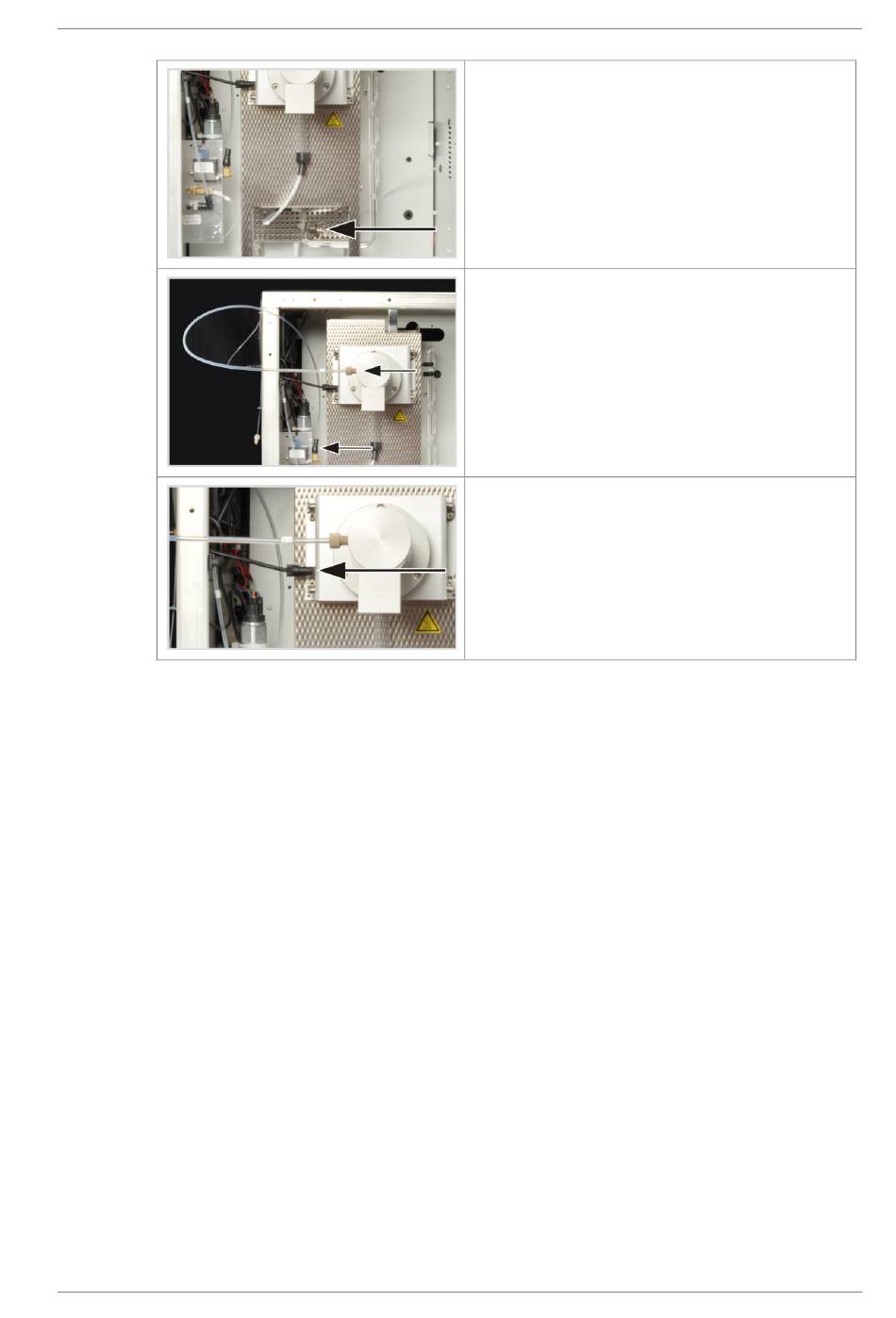

7. Combine the gas transfer hose and the inlet
of the condensation coil (spherical joint).
8. Secure the spherical joint with the fork clamp
and tighten the knurled head screw of the
gas clamp finger-tight.
9. Attach the gas inlet hose to the carrier gas
outlet of the gas box by way of FAST con-
nectors.
10. Screw the other end of the hose to the end
of the Double Furnace Solids Module using
the Fingertight connection.
11. Connect the plug-in connector of the analyz-
er to the left-hand side of the Double Fur-
nace Solids Module.
12. Attach the protective conductor connection
and close the side wall.
