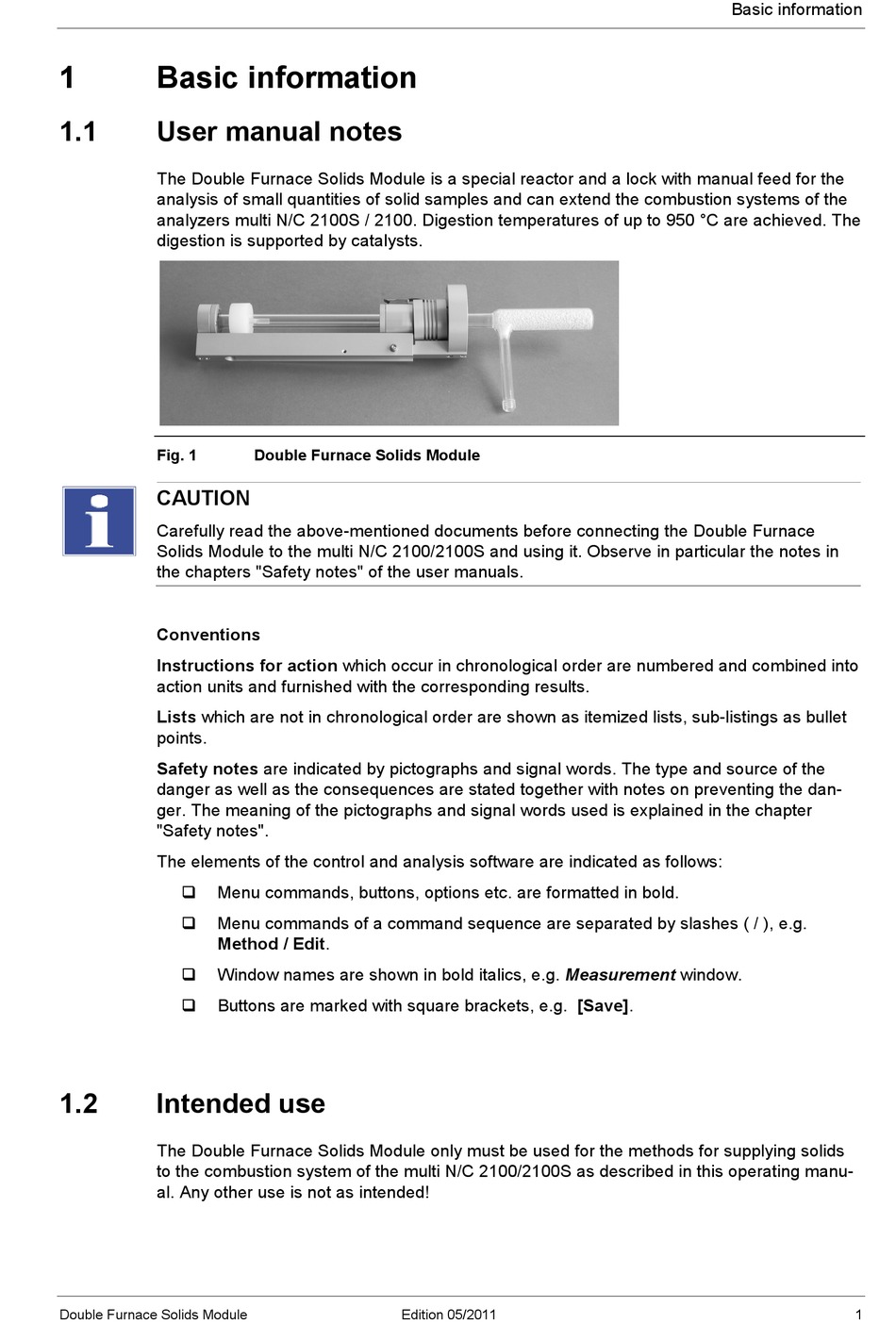

1

Basic information

1.1

User manual notes

The Double Furnace Solids Module is a special reactor and a lock with manual feed for the
analysis of small quantities of solid samples and can extend the combustion systems of the
analyzers multi N/C 2100S / 2100. Digestion temperatures of up to 950 °C are achieved. The
digestion is supported by catalysts.
Fig. 1
CAUTION
Carefully read the above-mentioned documents before connecting the Double Furnace
Solids Module to the multi N/C 2100/2100S and using it. Observe in particular the notes in
the chapters "Safety notes" of the user manuals.

Conventions

Instructions for action which occur in chronological order are numbered and combined into
action units and furnished with the corresponding results.
Lists which are not in chronological order are shown as itemized lists, sub-listings as bullet
points.
Safety notes are indicated by pictographs and signal words. The type and source of the
danger as well as the consequences are stated together with notes on preventing the dan-
ger. The meaning of the pictographs and signal words used is explained in the chapter
"Safety notes".
The elements of the control and analysis software are indicated as follows:
Menu commands, buttons, options etc. are formatted in bold.

Menu commands of a command sequence are separated by slashes ( / ), e.g.

Method / Edit.
Window names are shown in bold italics, e.g. Measurement window.

Buttons are marked with square brackets, e.g. [Save].

1.2

Intended use

The Double Furnace Solids Module only must be used for the methods for supplying solids
to the combustion system of the multi N/C 2100/2100S as described in this operating manu-
al. Any other use is not as intended!
Double Furnace Solids Module
Double Furnace Solids Module
Edition 05/2011
