8

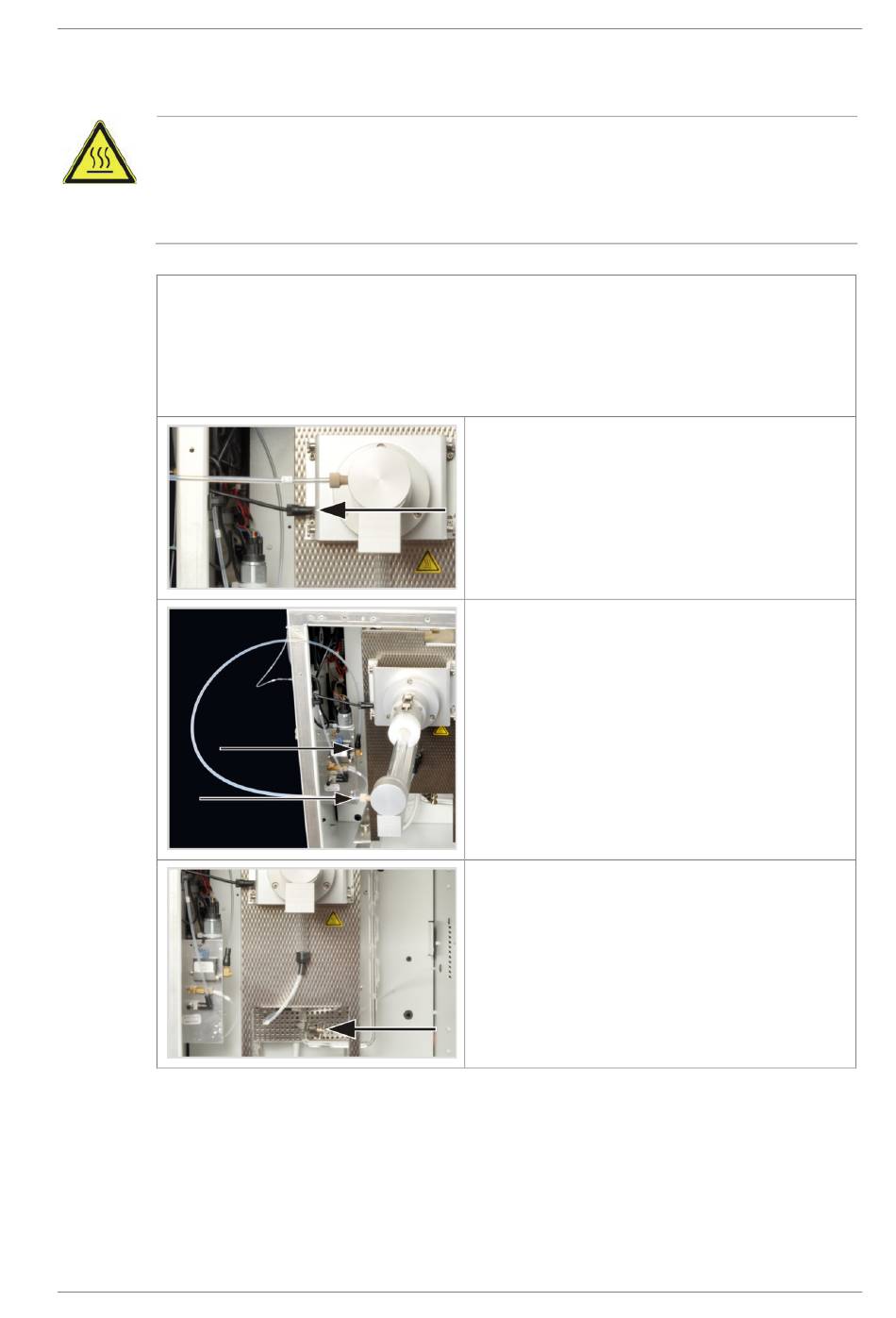

Removing the Double Furnace Solids Module

CAUTION
There is a risk of burning on the combustion furnace! Only remove the combustion tube
when the device is cold or allow the device to cool down sufficiently!
Before switching off set the furnace temperature in multiWin to 20 °C and exit multiWin.
Otherwise there is a risk of burns when checking the system for leaks after installation!
1. In the window Options / tab Device components set a furnace temperature of 20
°C.
2. Exit the software multiWin.
3. Switch the analyzer off on the main switch, pull the mains plug from the mains outlet
and disconnect the gas supply.
Double Furnace Solids Module
Removing the Double Furnace Solids Module
4. Disconnect the plug-in connector on the left-
hand side of the solids module.
5. Pull the gas inlet hose out of the FAST con-
nector at the carrier gas outlet of the gas box
and remove the FAST connector from the
terminal.
6. Unscrew the other end of the hose from the
solids module.
7. Remove the fork clamp at the spherical joint
between the gas transfer hose and the con-
densation coil inlet.
Edition 05/2011 11
