Installing the Double Furnace Solids Module

The Double Furnace Solids Module can only be installed if a combined combustion furnace
for horizontal and vertical operation has been installed.

Filling the combustion tube of the solids module

CAUTION!
Alkaline salts (hand perspiration) causes crystallization in the quartz glass when heating
combustion tubes in the combustion furnace. This shortens the service life of the combustion
tube.
Where possible do not touch the cleaned combustion tube with your hands for filling. Wear
protective gloves during the filling of the combustion tube.
Only fill fully dried combustion tubes. If necessary, dry the combustion tube before filling.
Wipe any finger marks on the combustion tube with a cloth wetted with pure alcohol.
Double Furnace Solids Module
Installing the Double Furnace Solids Module

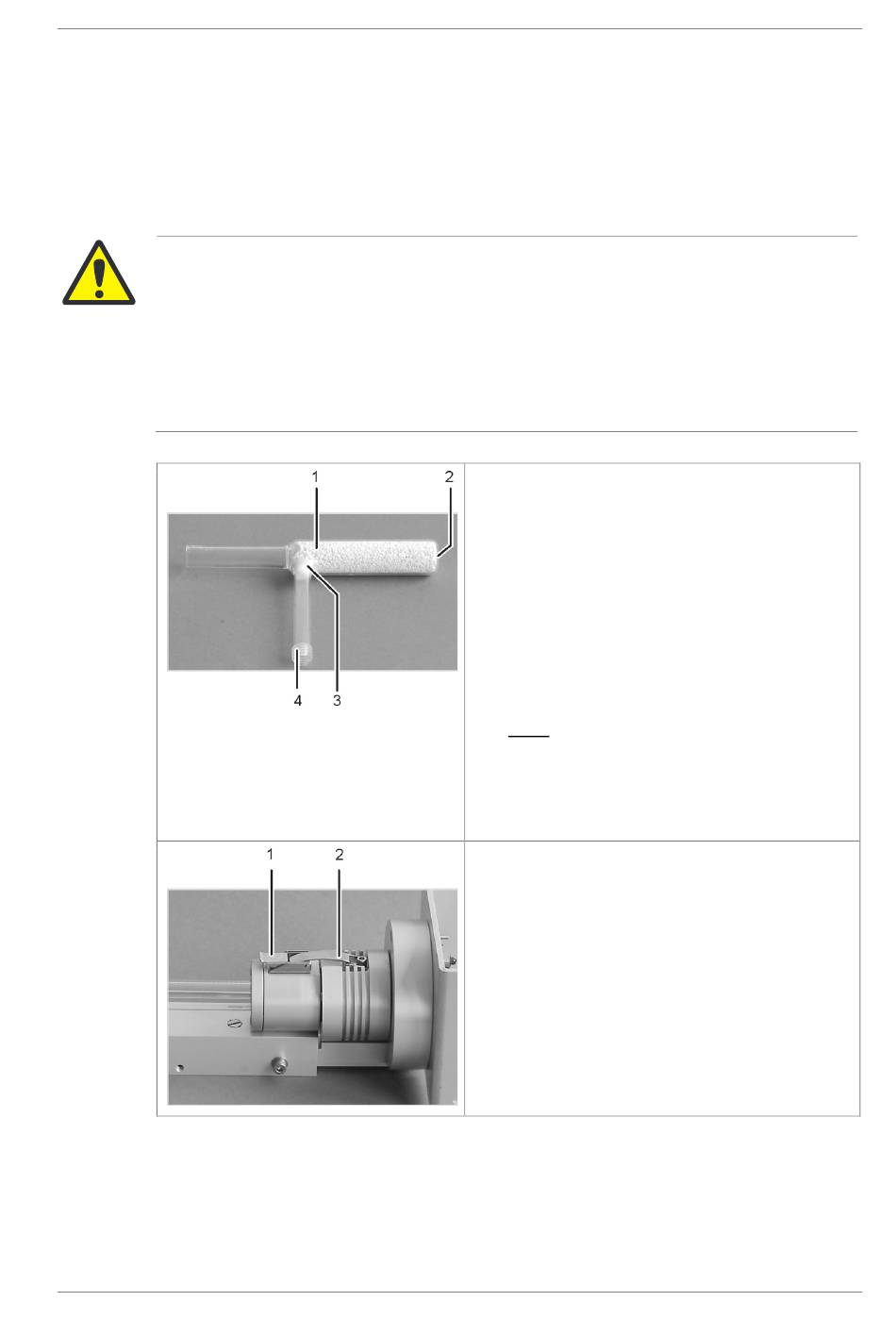

1. To fill rotate the adapter (4) of the combus-
tion tube upwards.
2. Insert the quartz wool into the combustion
tube, carefully push it down with a glass rod
and compact it (2).
3. Carefully fill approx. 60 g CeO
lyst multi N/C) via the adapter into the sleeve
of the combustion tube (1).
4. Seal the adapter of the combustion tube with
some quartz wool (3).
Note:
The quartz wool is used to retain the catalyst.
Seal the adapter to make sure that no cata-
lyst can enter the gas path. However, do not
compact the quartz wool too densely.
5. Open the furnace lock:
− Pull the interlock (1) upwards.
− Pull the bracket (2) out of its anchorage.
− Pull the furnace lock open.
Edition 05/2011
(special cata-
