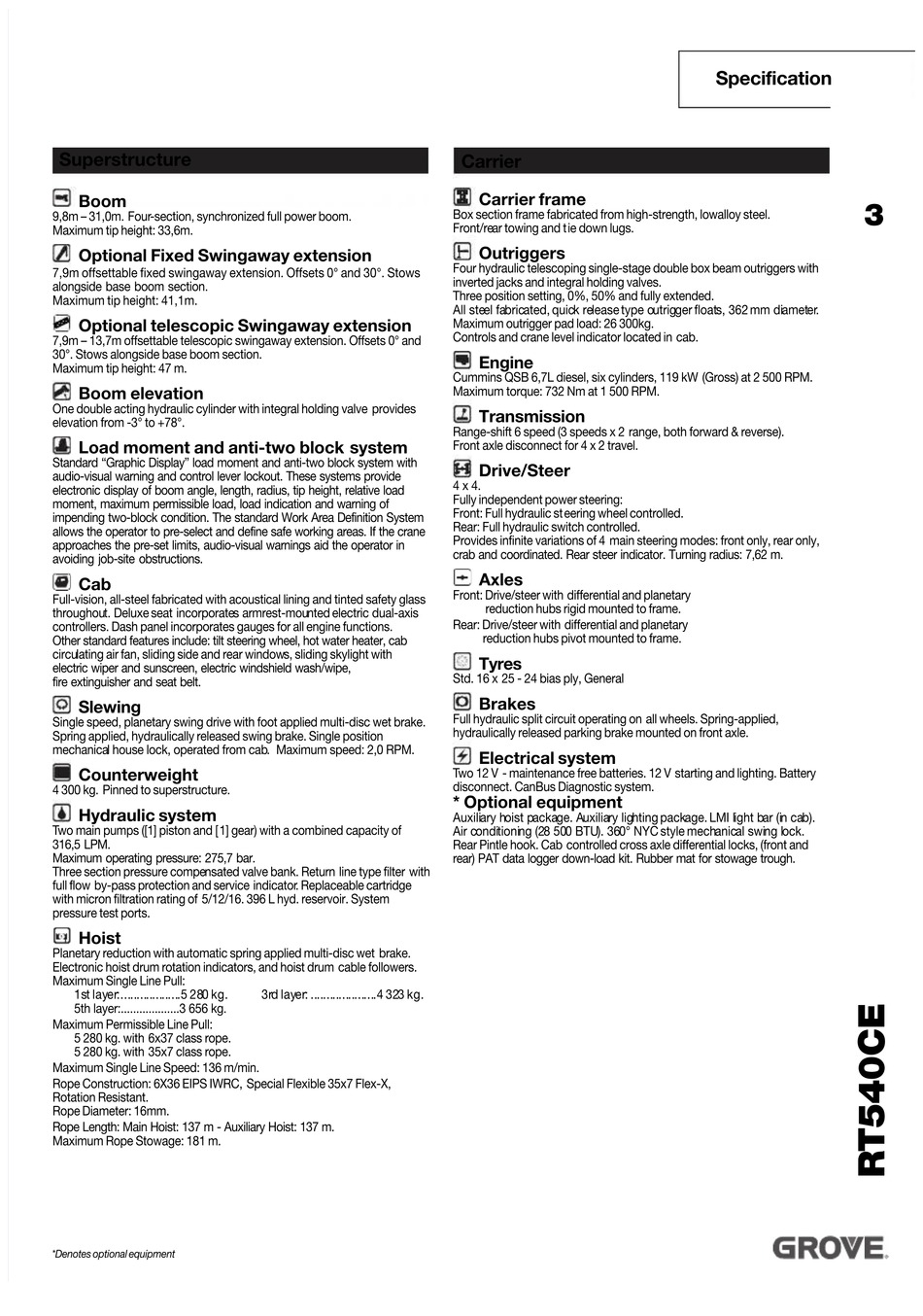

Superstructure
Boom
9,8m – 31,0m. Four-section, synchronized full power boom.
Maximum tip height: 33,6m.
Optional Fixed Swingaway extension
7,9m offsettable fixed swingaway extension. Offsets 0° and 30°. Stows
alongside base boom section.
Maximum tip height: 41,1m.
Optional telescopic Swingaway extension
7,9m – 13,7m offsettable telescopic swingaway extension. Offsets 0° and
30°. Stows alongside base boom section.
Maximum tip height: 47 m.
Boom elevation
One double acting hydraulic cylinder with integral holding valve provides
elevation from -3° to +78°.
Load moment and anti-two block system
Standard "Graphic Display" load moment and anti-two block system with
audio-visual warning and control lever lockout. These systems provide
electronic display of boom angle, length, radius, tip height, relative load
moment, maximum permissible load, load indication and warning of
impending two-block condition. The standard Work Area Definition System
allows the operator to pre-select and define safe working areas. If the crane
approaches the pre-set limits, audio-visual warnings aid the operator in
avoiding job-site obstructions.
Cab
Full-vision, all-steel fabricated with acoustical lining and tinted safety glass
throughout. Deluxe seat incorporates armrest-mounted electric dual-axis
controllers. Dash panel incorporates gauges for all engine functions.
Other standard features include: tilt steering wheel, hot water heater, cab
circulating air fan, sliding side and rear windows, sliding skylight with
electric wiper and sunscreen, electric windshield wash/wipe,
fire extinguisher and seat belt.
Slewing
Single speed, planetary swing drive with foot applied multi-disc wet brake.
Spring applied, hydraulically released swing brake. Single position
mechanical house lock, operated from cab. Maximum speed: 2,0 RPM.
Counterweight
4 300 kg. Pinned to superstructure.
Hydraulic system
Two main pumps ([1] piston and [1] gear) with a combined capacity of
316,5 LPM.
Maximum operating pressure: 275,7 bar.
Three section pressure compensated valve bank. Return line type filter with
full flow by-pass protection and service indicator. Replaceable cartridge
with micron filtration rating of 5/12/16. 396 L hyd. reservoir. System
pressure test ports.
Hoist
Planetary reduction with automatic spring applied multi-disc wet brake.
Electronic hoist drum rotation indicators, and hoist drum cable followers.
Maximum Single Line Pull:
1st layer:...................5 280 kg.
5th layer:...................3 656 kg.
Maximum Permissible Line Pull:
5 280 kg. with 6x37 class rope.
5 280 kg. with 35x7 class rope.
Maximum Single Line Speed: 136 m/min.
Rope Construction: 6X36 EIPS IWRC, Special Flexible 35x7 Flex-X,
Rotation Resistant.
Rope Diameter: 16mm.
Rope Length: Main Hoist: 137 m - Auxiliary Hoist: 137 m.
Maximum Rope Stowage: 181 m.
*Denotes optional equipment
3rd layer: .....................4 323 kg.
Carrier
Carrier frame
Box section frame fabricated from high-strength, lowalloy steel.
Front/rear towing and tie down lugs.
Outriggers
Four hydraulic telescoping single-stage double box beam outriggers with
inverted jacks and integral holding valves.
Three position setting, 0%, 50% and fully extended.
All steel fabricated, quick release type outrigger floats, 362 mm di a meter.
Maximum outrigger pad load: 26 300kg.
Controls and crane level indicator located in cab.
Engine
Cummins QSB 6,7L diesel, six cylinders, 119 kW (Gross) at 2 500 RPM.
Maximum torque: 732 Nm at 1 500 RPM.
Transmission
Range-shift 6 speed (3 speeds x 2 range, both forward & reverse).
Front axle disconnect for 4 x 2 travel.
Drive/Steer
4 x 4.
Fully independent power steering:
Front: Full hydraulic steering wheel controlled.
Rear: Full hydraulic switch controlled.
Provides infinite variations of 4 main steering modes: front only, rear only,
crab and coordinated. Rear steer indicator. Turning radius: 7,62 m.
Axles
Front: Drive/steer with differential and planetary
reduction hubs rigid mounted to frame.
Rear: Drive/steer with differential and planetary
reduction hubs pivot mounted to frame.
Tyres
Std. 16 x 25 - 24 bias ply, General
Brakes
Full hydraulic split circuit operating on all wheels. Spring-applied,
hydraulically released parking brake mounted on front axle.
Electrical system
Two 12 V - maintenance free batteries. 12 V starting and lighting. Battery
disconnect. CanBus Diagnostic system.
* Optional equipment
Auxili a ry hoist package. Auxiliary lighting package. LMI l i ght bar (i n cab).
Air condi t ioni n g (28 500 BTU). 360° NYC style mechanical swi n g l o ck.
Rear Pintle hook. Cab controlled cross axle differential locks, (front and
rear) PAT data logger down-load kit. Rubber mat for stowage trough.
