6. Packaging / 7. Starting, operation

6. Packaging

Has everything been supplied?
Check the scope of supply:
„
Completely assembled level probe
„
Inspect the pressure transducer for possible damage during transportation. Should
there be any obvious damage, inform the transport company and tecsis without delay.
„
Keep the packaging, as it offers optimal protection during transportation (e.g. changing
installation location, shipment for repair).
„
Ensure that the connection contacts will not be damaged.

7. Starting, operation

Diaphragm test for your safety
It is necessary that before starting the pressure transducer you test the diaphragm, as this is a
!
safety-relevant component.
„
Pay attention to any liquid leaking out, for this points to a diaphragm damage.
„
Use the pressure transducer only if the diaphragm is undamaged.
„
Use the pressure transducer only if it is in a faultless condition as far as the
Warning
safety-relevant features are concerned.
Mechanical connection
(A)
18 Betriebsanleitung/Operating instructions
(B)
„

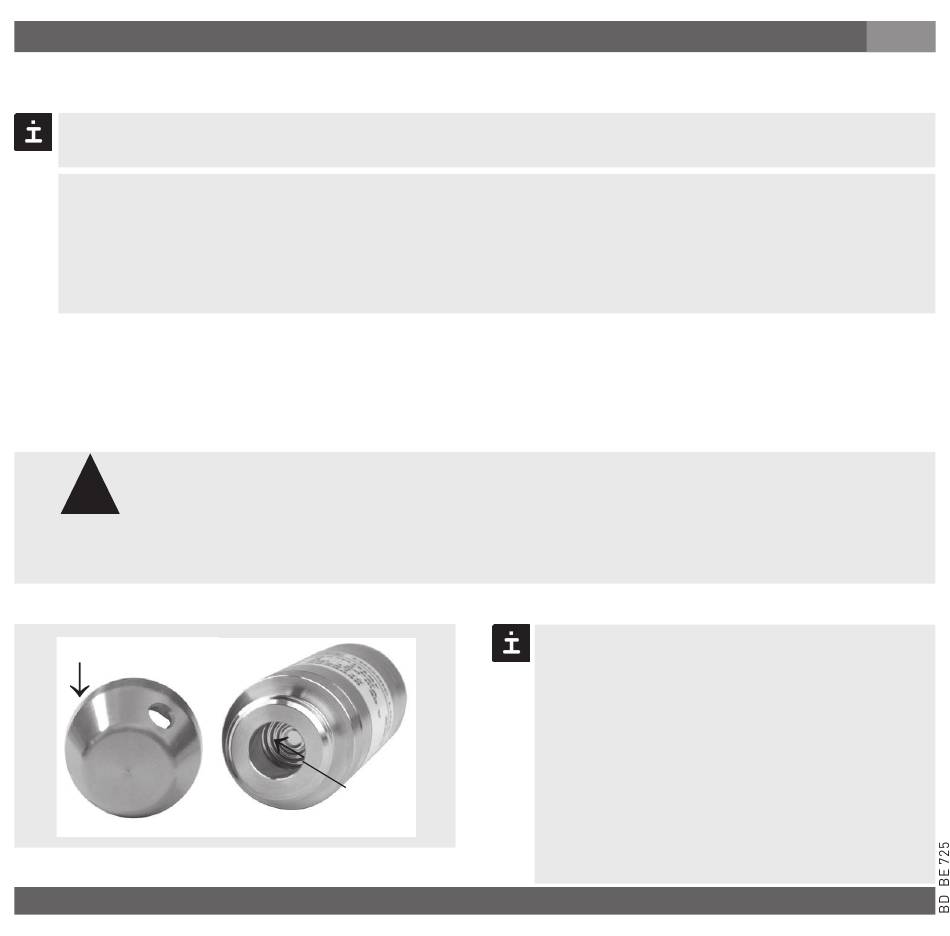

The protection cap (A) protects the
secluded diaphragm (B) from dama-
ging the level probe during trans-
port and immersion. Remove the
protection cap if used with viscous or
contaminated media.
„
An additional strain relief is not
necessary because the cable has a
max. tensile strength of 1000 N (500
N with FEP).
