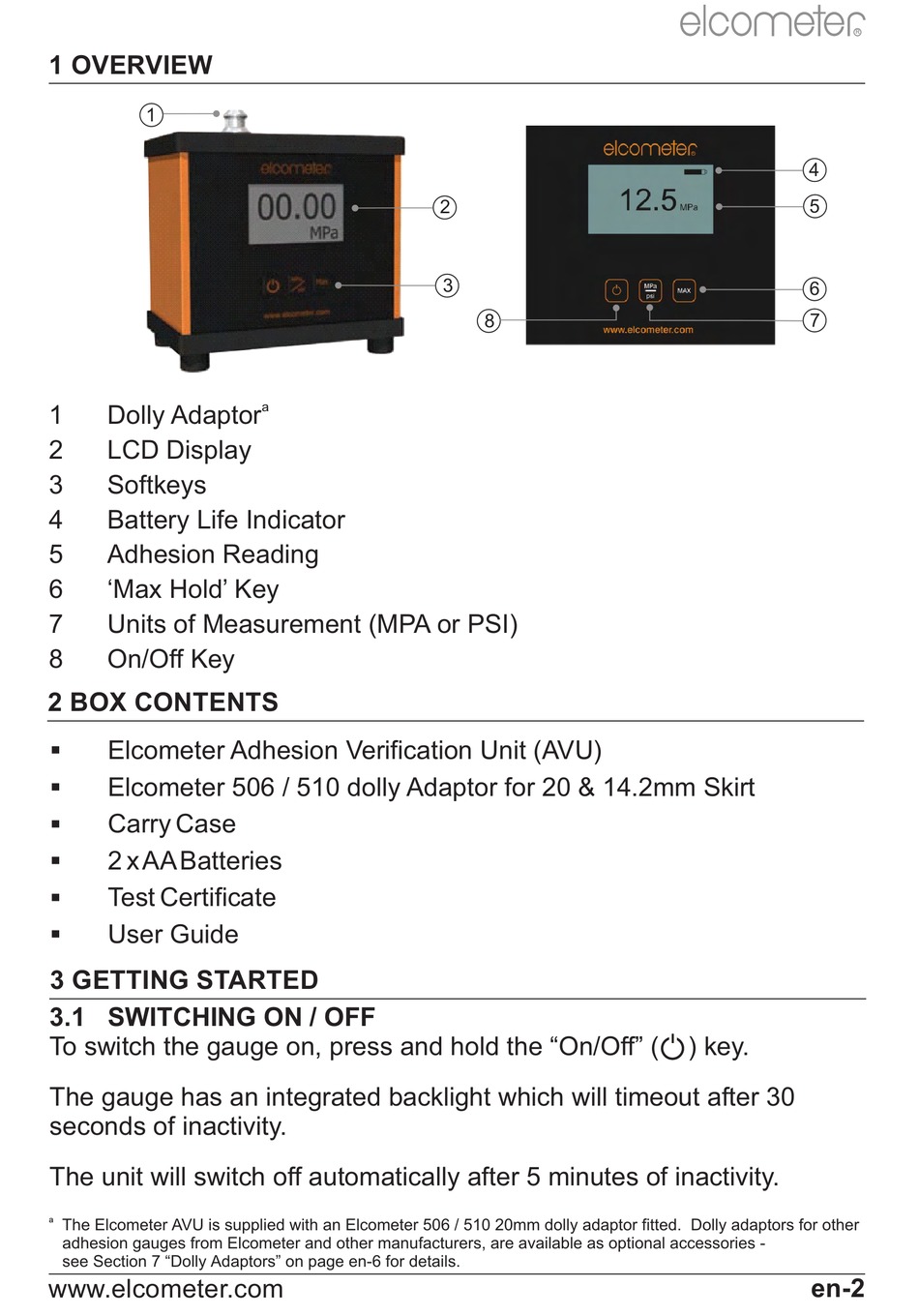

1 OVERVIEW

1
1 Dolly Adaptor
2 LCD Display
3 Softkeys
4 Battery Life Indicator
5 Adhesion Reading
6 'Max Hold' Key
7 Units of Measurement (MPA or PSI)
8 On/Off Key

2 BOX CONTENTS

Elcometer Adhesion Verification Unit (AVU)

Elcometer 506 / 510 dolly Adaptor for 20 & 14.2mm Skirt

Carry Case

2 x AA Batteries

Test Certificate

User Guide


3 GETTING STARTED

3.1 SWITCHING ON / OFF
To switch the gauge on, press and hold the "On/Off" (
The gauge has an integrated backlight which will timeout after 30
seconds of inactivity.
The unit will switch off automatically after 5 minutes of inactivity.
a
The Elcometer AVU is supplied with an Elcometer 506 / 510 20mm dolly adaptor fitted. Dolly adaptors for other
adhesion gauges from Elcometer and other manufacturers, are available as optional accessories -
see Section 7 "Dolly Adaptors" on page en-6 for details.
www.elcometer.com
a
2
3
8
R
4
5
6
7
) key.
en-2
