Crossover – Quickstart
LOW Section Setup
Choose the LOW crossover frequency (Linkwitz Riley low pass filter) with the
19
LOW X-OVER switch: 50, 60, 70, 85, 100 or 120Hz. The roll-off is 24 dB/octave.
Use the PHASE switch and the PHASE control to shift the LOW signal phase from
20
-180° to +180° for phase aligning subwoofer and main speaker positions.
If you switch the LOW Mono/Stereo Switch to Mono – both LOW Outputs L and
21
R feed a LOW mono signal.
The output level of the subwoofer can be varied from -10dB to +10dB with the
22
LOW Level control.
MID-HI Section Setup
Choose a MID-HI crossover frequency (Linkwitz Riley high pass filter) with the
23
MID-HI X-OVER switch: 50, 60, 70, 85, 100 or 120Hz.
24
Select the roll-off with the ROLL-OFF Switch: 12 or 24 dB/octave.
Normally the crossover frequency is equal to the LOW setting.
The MID-HI crossover can be disabled with the MID-HI X-OVER On/Off switch in
25
case the top speakers shall operate full range.

Basic Controls

The Crossover is equiped with a 20Hz low cut filter. If on (20Hz) the input signal
26
is filtered below 20Hz by 12dB/octave for both frequency ranges – LOW and
MID-HI.
With the VU meter sensitivity switch you can lower the displayed VU levels by 6
27
or 12dB in case you are running hot signal levels.
You can select the VU meter source: the LOW frequency range, the MID-HI
28
frequency range or the input signal.
6
Downloaded from www.Manualslib.com manuals search engine

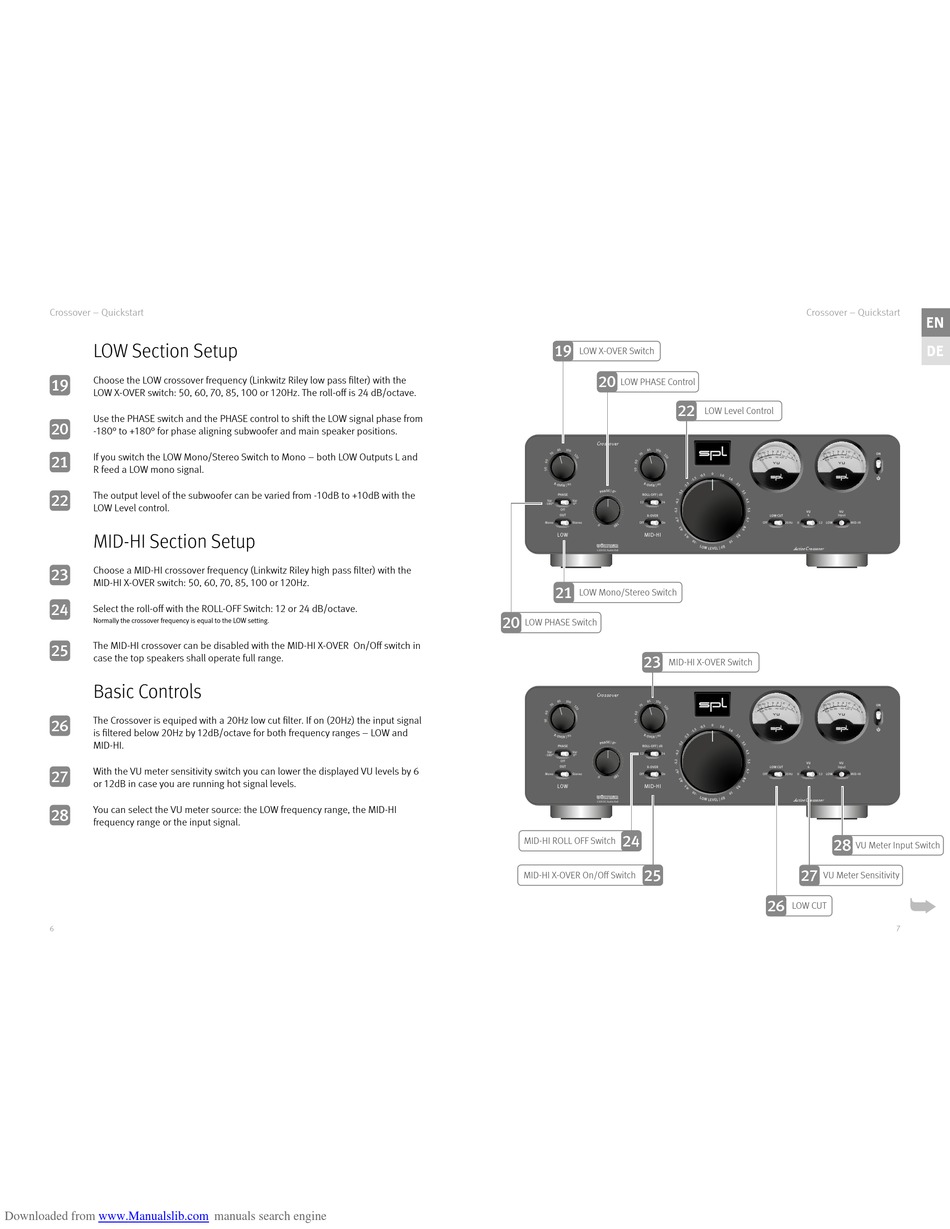

19
