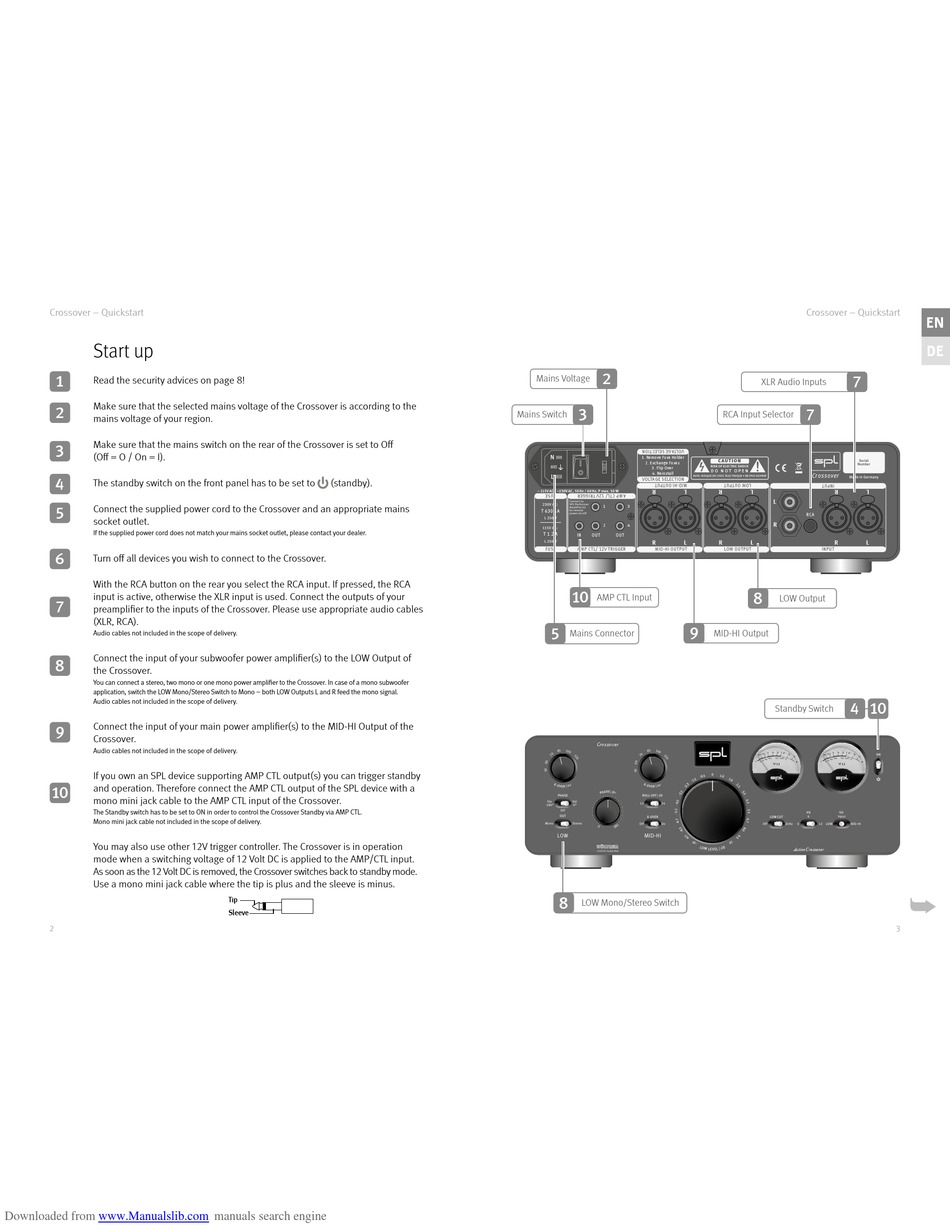

Crossover – Quickstart
Start up
1
Read the security advices on page 8!
Make sure that the selected mains voltage of the Crossover is according to the
2
mains voltage of your region.
Make sure that the mains switch on the rear of the Crossover is set to Off
3
(Off = O / On = I).
4
The standby switch on the front panel has to be set to
5
Connect the supplied power cord to the Crossover and an appropriate mains
socket outlet.
If the supplied power cord does not match your mains socket outlet, please contact your dealer.
6
Turn off all devices you wish to connect to the Crossover.
With the RCA button on the rear you select the RCA input. If pressed, the RCA
input is active, otherwise the XLR input is used. Connect the outputs of your
7
preamplifier to the inputs of the Crossover. Please use appropriate audio cables
(XLR, RCA).
Audio cables not included in the scope of delivery.
Connect the input of your subwoofer power amplifier(s) to the LOW Output of
8
the Crossover.
You can connect a stereo, two mono or one mono power amplifier to the Crossover. In case of a mono subwoofer
application, switch the LOW Mono/Stereo Switch to Mono – both LOW Outputs L and R feed the mono signal.
Audio cables not included in the scope of delivery.
Connect the input of your main power amplifier(s) to the MID-HI Output of the
9
Crossover.
Audio cables not included in the scope of delivery.
If you own an SPL device supporting AMP CTL output(s) you can trigger standby
and operation. Therefore connect the AMP CTL output of the SPL device with a
10
mono mini jack cable to the AMP CTL input of the Crossover.
The Standby switch has to be set to ON in order to control the Crossover Standby via AMP CTL.
Mono mini jack cable not included in the scope of delivery.
You may also use other 12V trigger controller. The Crossover is in operation
mode when a switching voltage of 12 Volt DC is applied to the AMP/CTL input.
As soon as the 12 Volt DC is removed, the Crossover switches back to standby mode.
Use a mono mini jack cable where the tip is plus and the sleeve is minus.
