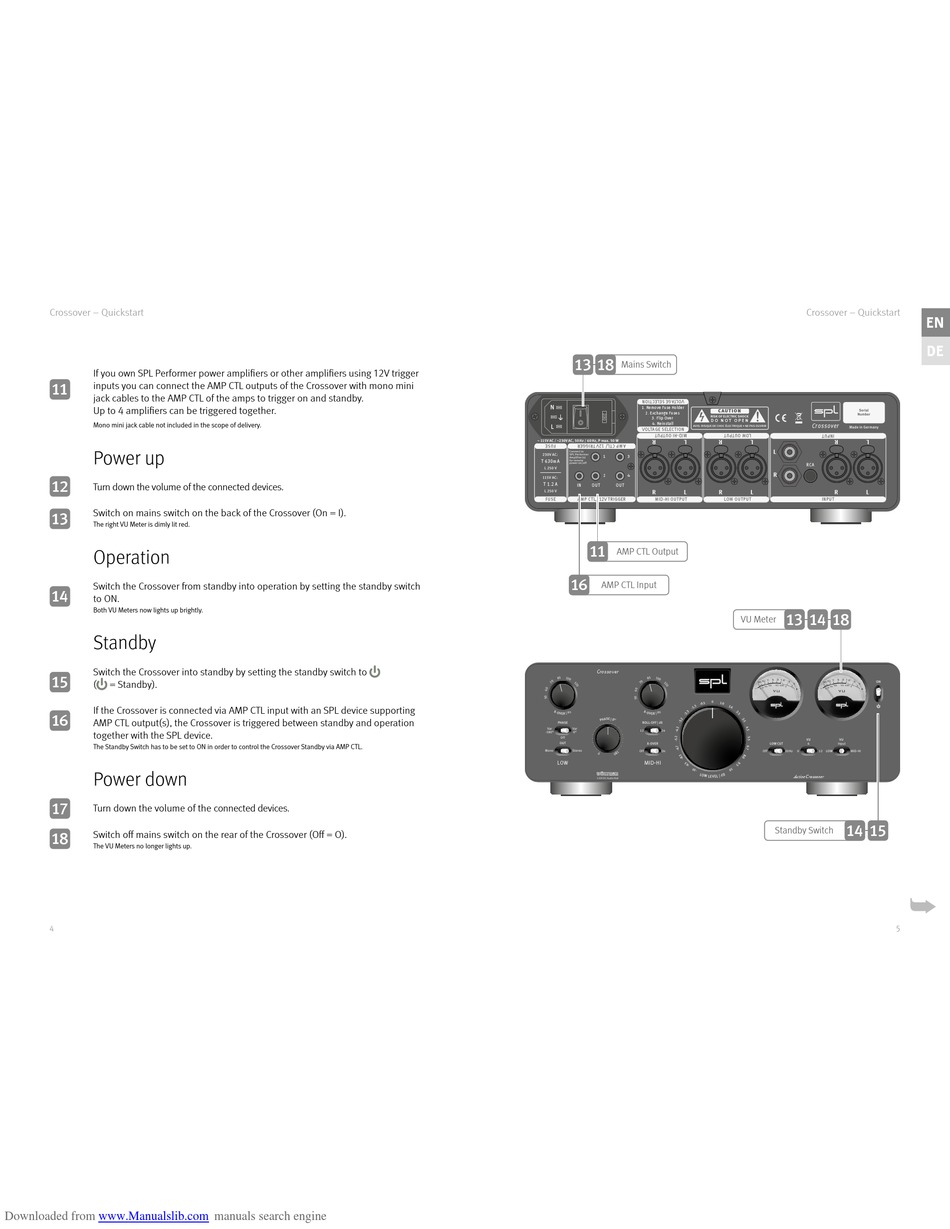

Crossover – Quickstart
If you own SPL Performer power amplifiers or other amplifiers using 12V trigger
inputs you can connect the AMP CTL outputs of the Crossover with mono mini
11
jack cables to the AMP CTL of the amps to trigger on and standby.
Up to 4 amplifiers can be triggered together.
Mono mini jack cable not included in the scope of delivery.
Power up
12
Turn down the volume of the connected devices.
Switch on mains switch on the back of the Crossover (On = I).
13
The right VU Meter is dimly lit red.
Operation
Switch the Crossover from standby into operation by setting the standby switch
14
to ON.
Both VU Meters now lights up brightly.
Standby
Switch the Crossover into standby by setting the standby switch to
15
(
= Standby).
If the Crossover is connected via AMP CTL input with an SPL device supporting
16
AMP CTL output(s), the Crossover is triggered between standby and operation
together with the SPL device.
The Standby Switch has to be set to ON in order to control the Crossover Standby via AMP CTL.
Power down
17
Turn down the volume of the connected devices.
Switch off mains switch on the rear of the Crossover (Off = O).
18
The VU Meters no longer lights up.
