Fitting

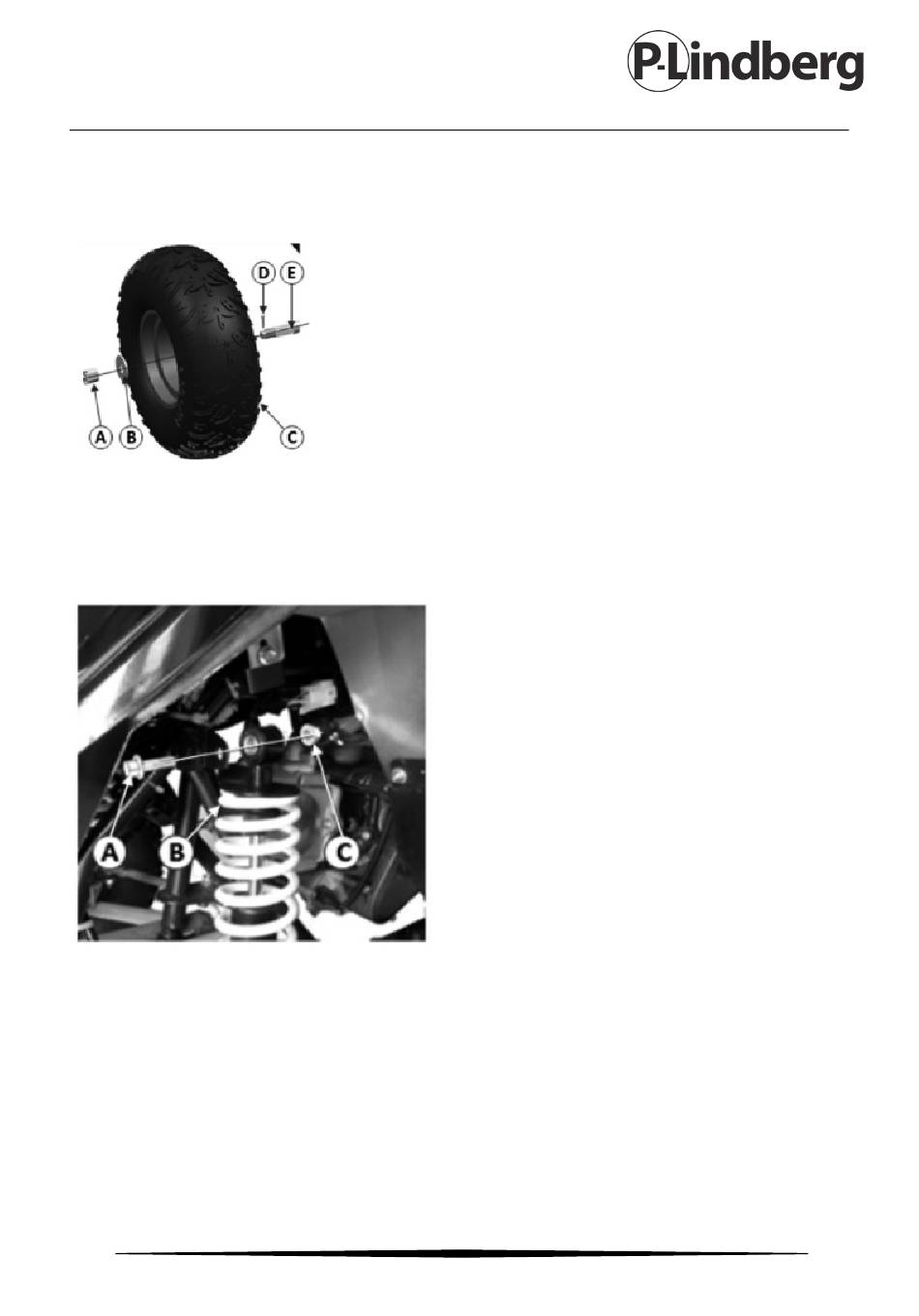

Start by fitting the rear wheels:
Next, fit the front shock absorbers:
P. Lindberg A/S
Tel.: +45 70212626
A. Nut M16 (qty. 1)
B. Washer Ø16.5 x 30 x 3 (qty. 1)
C. Rear wheel (qty. 2)
D. Split pin (qty. 2)
E. Rear axle
1. Set the wheel (C) on the axle.
2. Set the washer (B) and tighten the nut (A) securely using a
24 mm fork spanner.
3. Insert the two split pins.
A. Bolt M10 x 40 (qty. 2)
B. Shock absorber
C. Nut M10 (qty. 2)
1. Lift the frame up so that the shock
absorber's (B) assembly hole aligns with
the connecting hole.
2. Insert a bolt (A) and tighten securely using a
nut (C).
