Installation Suggestions - Kessel Practicus Einbau- Und Montageanleitung

Installation suggestions

Polyethylene
moisture barrier
Slope

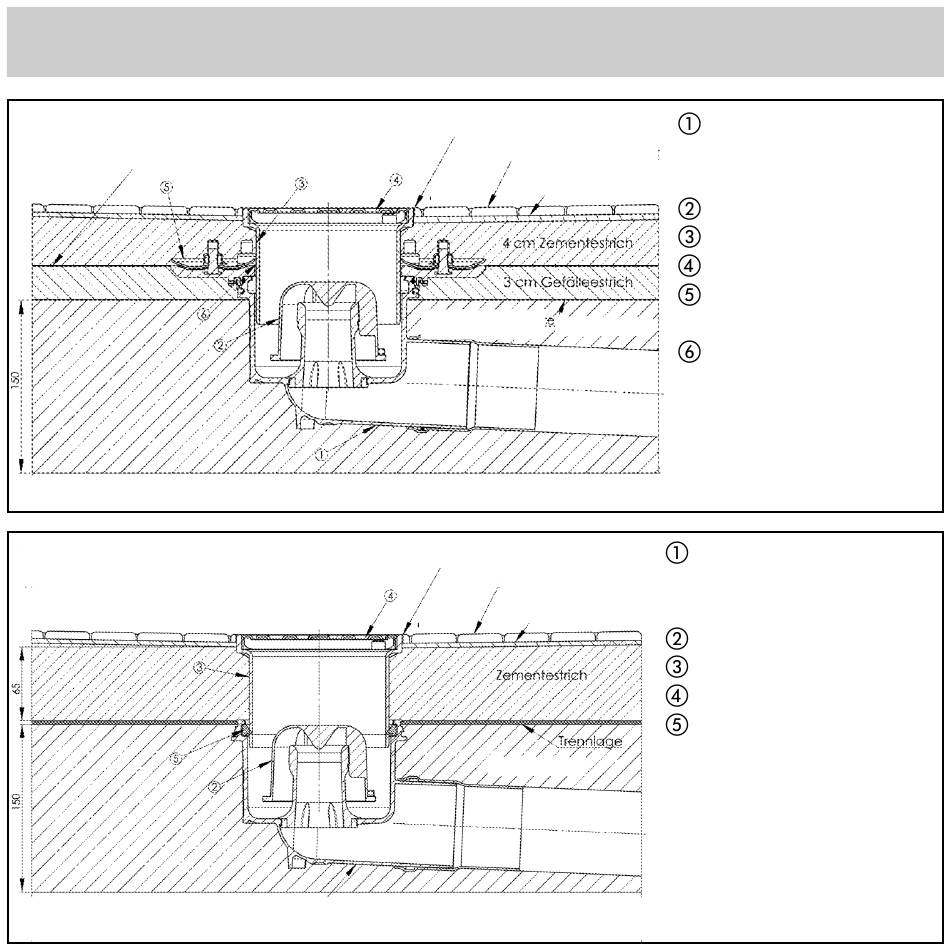

Picture shows Art.# 45170 + 48402 + 48201
Slope
Picture shows Art.# 45170 + 48201
Expansion joint 1.5 cm Tiles
Tile adhesive
Slope
Polyethylene
Concrete floor
moisture membrane
Expansion joint
1.5 cm Tiles
Tile adhesive
Slope
Concrete floor
Kessel roof drain
Side outlet
®
Practicus
Odour trap
Attachment piece
Cover with slot design
Pressure sealing
flange
Seepage water
discharge
KESSEL floor drain
Side outlet
Practicus ®
Odour trap
Attachment piece
Cover with slot design
Lip seal (included in the
delivery contents for the
attachment piece)
