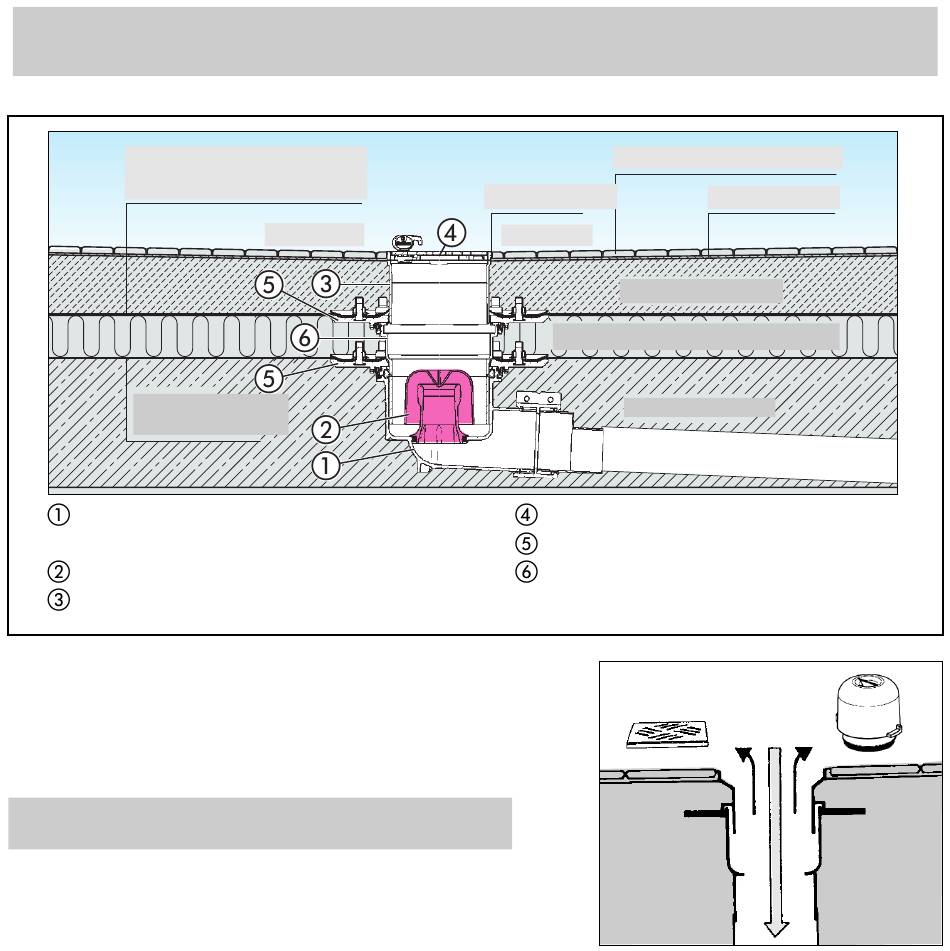

Assembly proposal
Polyethylene
moisture barrier
Folie als
Feuchtigkeitsabdichtung
Polyethylene
moisture membrane
Folie als
Dampfsperre
Drain body
KESSEL-drain Ecoguss
Odour trap
Supporting ring for odour trap
The odour trap and the supporting ring must
be removed for installation of the fire protec-
tion Fire-Kit (art. no. 48100).
Cleaning
Optimum pipe cleaning of inlet and outlet is pos-
sible following removal of the cover and the odour
trap.
Slope
®
1.5 cm Tiles
1,5 cm Fliesen geklebt
Expansion joint
Dehnfuge
Slope
Zementestrich
Thermal/Sound insulation
Wärme-/ Trittschalldämmung
Concrete floor
Betondecke
Attachment piece
Pressure sealing flange
Extension piece
Tile adhesive
Fliesenkleber
Screed
