Operating Manual DV-5110

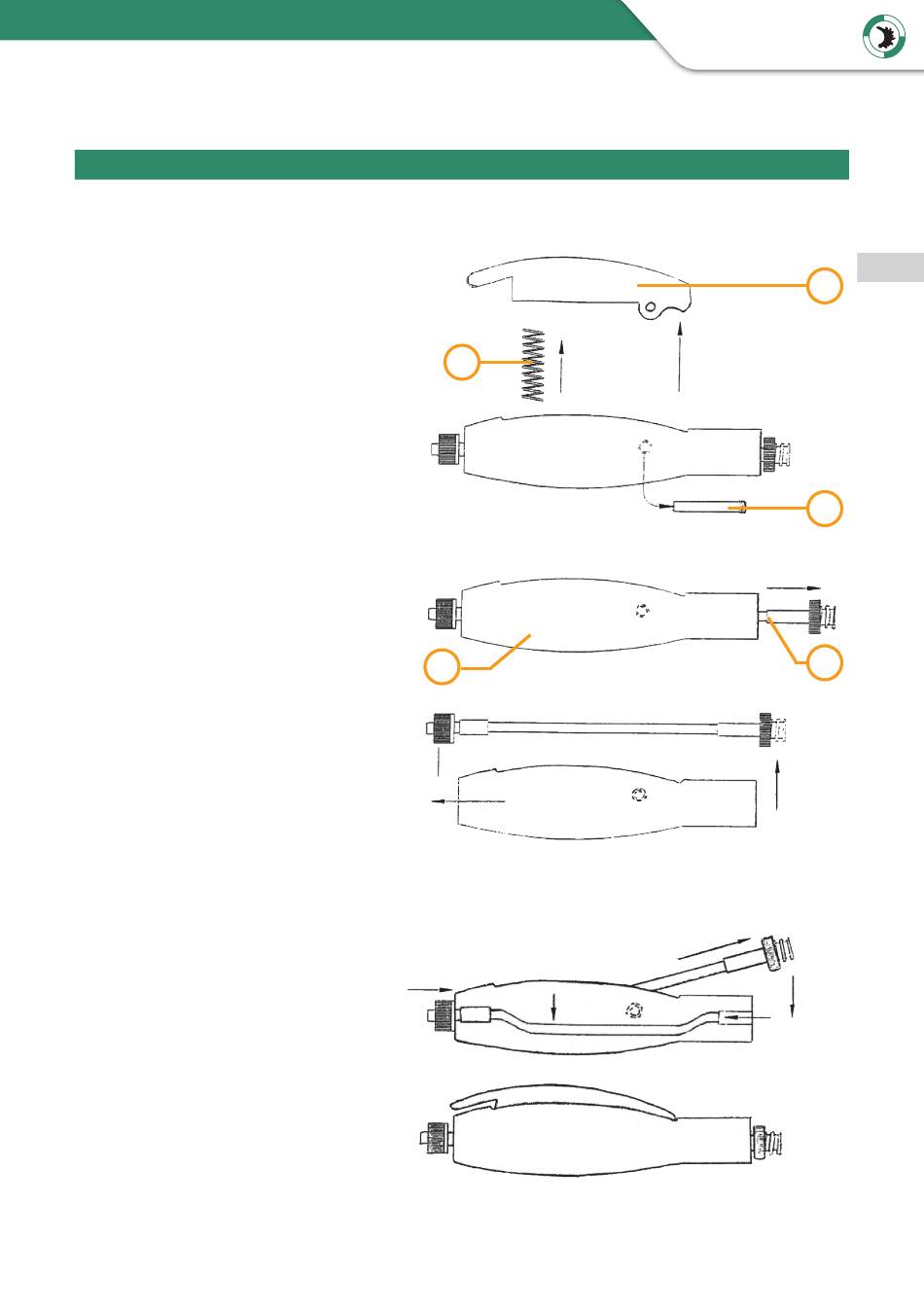

4 Pinch Tube Assembly Replacement
To change the pinch tube assembly, first remove the used.
1. Unscrew Pivot Pin (5), remove
Trigger (1) and Spring (2).
2. Pull one end of pinch tube
assembly out (6), stretching
it until fitting clears body.
3. Now pull stretched end of
pinch tube assembly up.
Then pull out the opposite
end to remove.
Insertion of a new pinch tube assembly.
1. Press the new pinch tube
assembly on one side into the
valve body, pull it long and
insert it on the other side.
2. Then install the spring, the trig-
ger and the pivot pin in reverse
order as with the extension.
2
3
11
VIEWEG
EN
1
5
6
