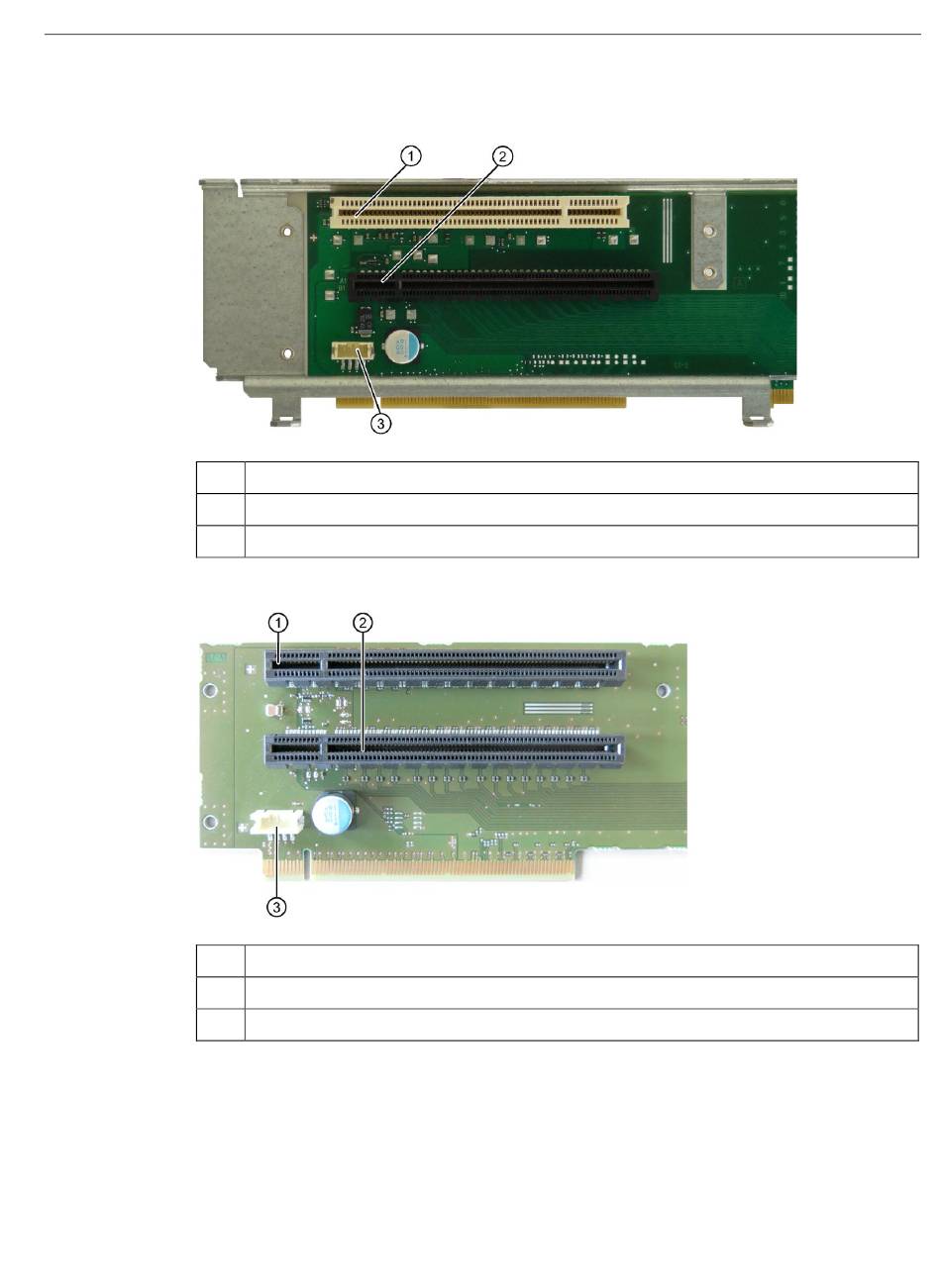

Variante 2 (IPC627D) hat einen PCI- und einen PCIe-Steckplatz.
①
②
③
Variante 3 (IPC627D) hat zwei PCIe-Steckplätze.
①
②
③
SIMATIC IPC627D/827D
Betriebsanleitung, 01/2020, A5E32990858-AD
Slot 1 PCI (TIA Portal: X100)
Slot 2 PCI Express x16 (TIA Portal: X101)
12V-Stromversorgungsanschluss
Slot 1 PCI Express x4, mechanisch x16 (TIA Portal: X100)
Slot 2 PCI Express x16 (TIA Portal: X101)
12V-Stromversorgungsanschluss
