GB

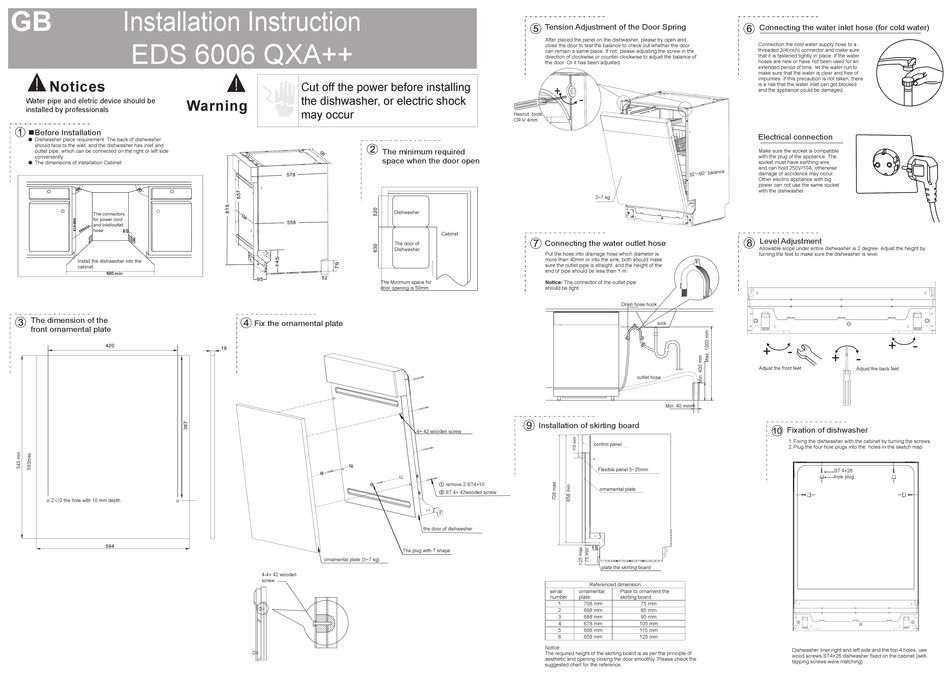

Installation Instruction

EDS 6006 QXA++
Notices
Water pipe and eletric device should be Warning
installed by professionals
„Before Installation
● Dishwasher place requirement. The back of dishwasher
should face to the wall, and the dishwasher has inlet and
outlet pipe, which can be connected on the right or left side
conveniently.
● The dimensions of installation Cabinet
The connectors
for power cord
and inlet/outlet
hose
Install the dishwasher into the
cabinet
600 min
The dimension of the
front ornamental plate
420 420
2­∅2 the hole with 10 mm depth
594 594
Cut off the power before installing
the dishwasher, or electric shock
may occur
The minimum required
space when the door open
Dishwasher
The door of
Dishwasher
95 95
The Minimum space for
door opening is 50mm
Fix the ornamental plate
19 19
ornamental plate (3~7 kg)
4­4× 42 wooden
screw
Tension Adjustment of the Door Spring
After placed the panel on the dishwasher, please try open and
close the door to test the balance to check out whether the door
can remain a same place. If not, please adjusting the screw in the
direction of clockwise or counter­clockwise to adjust the balance of
the door. Or it has been adjusted.
+ +
- -
Hexnut tools
CR­V 4mm
Cabinet
7 7
Connecting the water outlet hose
Put the hose into drainage hose which diameter is
more than 40mm or into the sink, both should make
sure the outlet pipe is straight, and the height of the
end of pipe should be less than 1 m.
Notice: The connector of the outlet pipe
should be tight.
9 9
Installation of skirting board
4× 42 wooden screw
1 remove 2­ST4×10
2 ST 4× 42wooden screw
the door of dishwasher
The plug with T shape
serial ornamental
number plate
1
2
3
4
5
6
Notice:
The required height of the skirting board is as per the principle of
aesthetic and opening closing the door smoothly. Please check the
suggested chart for the reference.
Connecting the water inlet hose (for cold water)
Connection the cold water supply hose to a
threaded 3/4(inch) connector and make sure
that it is fastened tightly in place. If the water
hoses are new or have not been used for an
extended period of time, let the water run to
make sure that the water is clear and free of
impurities. If this precaution is not taken, there
is a risk that the water inlet can get blocked
and the appliance could be damaged.
Electrical connection
Make sure the socket is compatible
with the plug of the appliance. The
socket must have earthing wire,
and can hold 250V/10A, otherwise
damage or accidence may occur.
Other electric appliance with big
power can not use the same socket
with the dishwasher.
3~7 kg
8 8 Level Adjustment
Allowable slope under entire dishwasher is 2 degree. Adjust the height by
turning the feet to make sure the dishwasher is level.
Drain hose hook
sink
+ +
Adjust the front feet
outlet hose
Min: 40 mm m
control panel
Flexible panel 5~25mm
ornamental plate
15 15
plate the skirting board
Referenced dimension
Plate to ornament the
skirting board
708 mm 75 mm
698 mm 85 mm
688 mm 95 mm
678 mm 105 mm
668 mm 115 mm
658 mm 125 mm
+ + - -
- -
+ +
- -
Adjust the back feet
Fixation of dishwasher
1. Fixing the dishwasher with the cabinet by turning the screws.
2. Plug the four hole plugs into the holes in the sketch map.
ST 4×26
hole plug
Dishwasher liner right and left side and the top 4 holes, use
wood screws ST4×26 dishwasher fixed on the cabinet (selt­
tapping screws were matching)
