5 Technical Information
Minivac Description

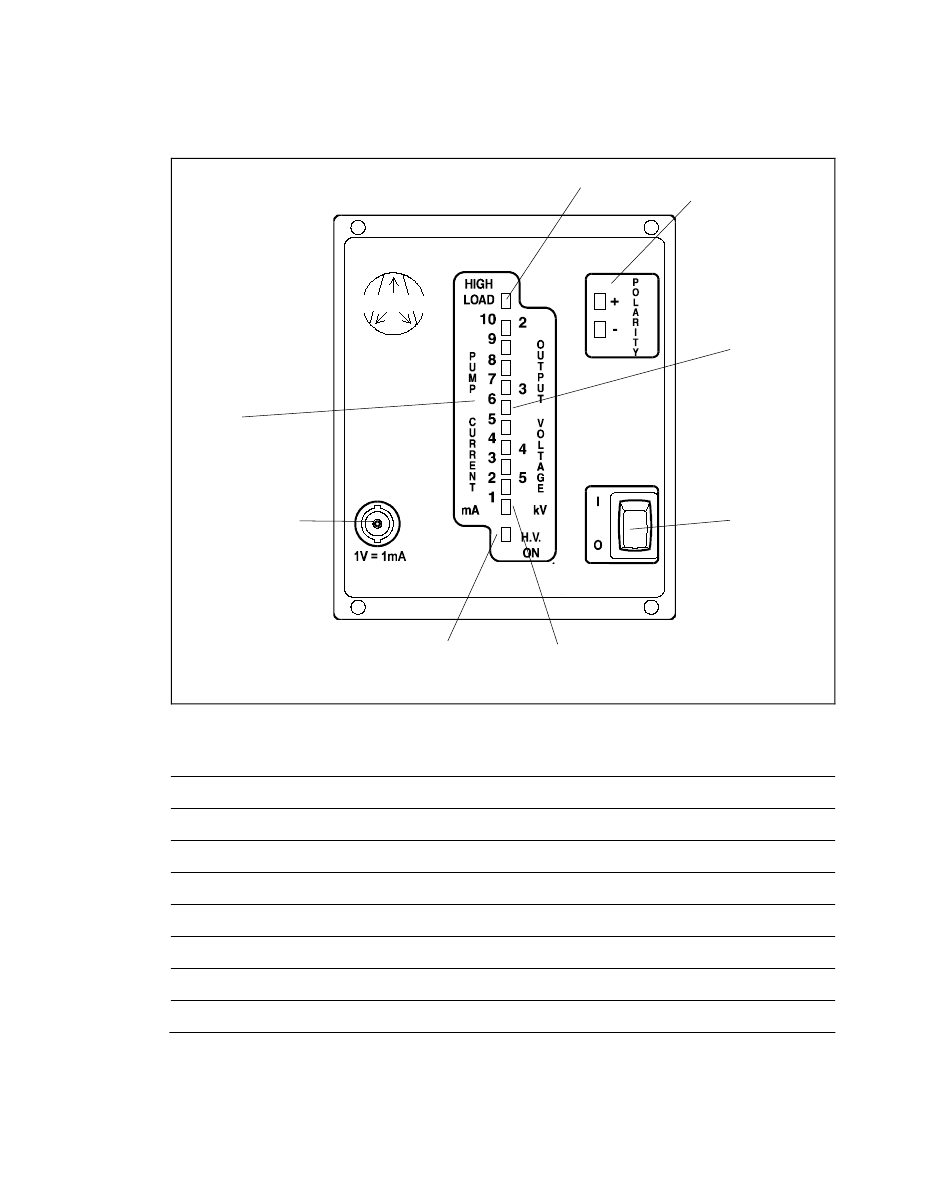

The MiniVac controller front panel controls are shown in the
following figure.7
Figure 5
1
2
3
4
5
6
7
8
52/70
Mini Vac
8
7
MiniVac Front Panel Controls
High Load LED lights up when the pump current is higher than 12 mA.
Output polarity LEDs selection indicators.
Voltage output scale (kV).
Controller power ON/OFF switch.
Current/voltage LED's bar graph indicator.
H. V. ON LED.
Recorder output connector.
Pump current scale (mA).
MiniVac Controller User Manual / 87-900-049-01 (H)
