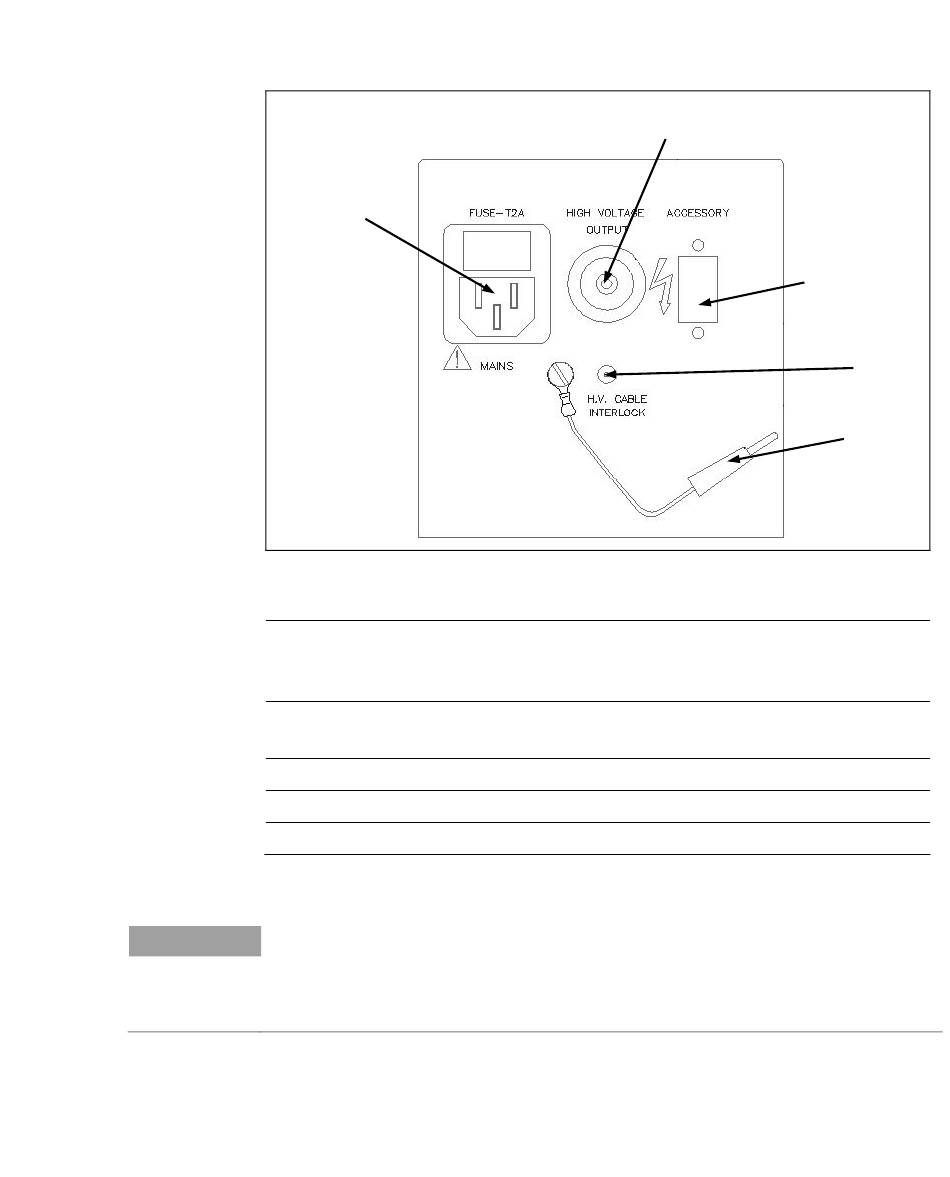

Figure 3
1
2
3
4
5
The unit is provided with a Line Voltage selector. Refer to the "INSTALLATION"
NOTE
paragraph of "TECHNICAL INFORMATION" section for details about the Line
Voltage selection operation.
MiniVac Controller User Manual / 87-900-049-01 (H)
1
Controller Rear Panel
Input module for the controller power supply. It includes the protection
fuse, the voltage changer, the power supply plug, and the EMC filter (not
included into the plug/voltage switch assembly).
High voltage output connector for the pump (KINGS or FISCHER type)
power supply.
Input/output signal connector for fittings
Controller cable Interlock.
Plug Interlock.
Instructions for Use
Use
2
3
4
5
4
