Technical Information
Description of the TPS-Compact
Scroll Pump Description

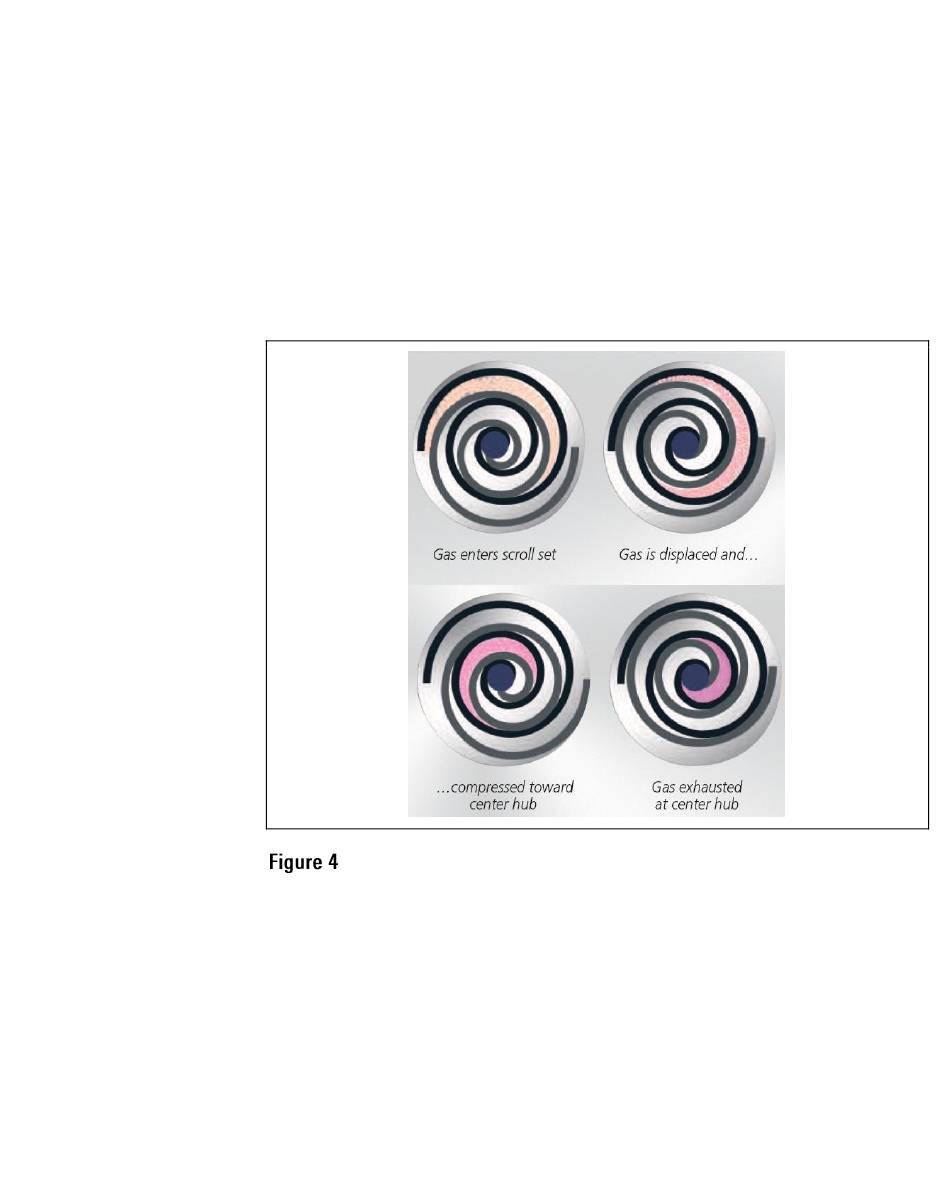

The TPS-compact internal scroll creates vacuum using a simple dual
scroll mechanism in which one of the nested scrolls orbits about the
other, creating moving zones of captured gas.
Gas enters the scroll set at the perimeter and is displaced and
compressed toward the center hub where it is exhausted.
260/314
TPS-compact User Manual / 87-901-010-01
