Quick Start Guide
DLT-V4108 Industrial PC
7.1.2 Disconnect the Power supply
1. Turn OFF DC supply source and equipment.
2. Disconnect the power cord from equipment.
3. Remove the signal cables from the connectors.
4. Remove the earthed cable from the protective earthed terminal of the equipment.

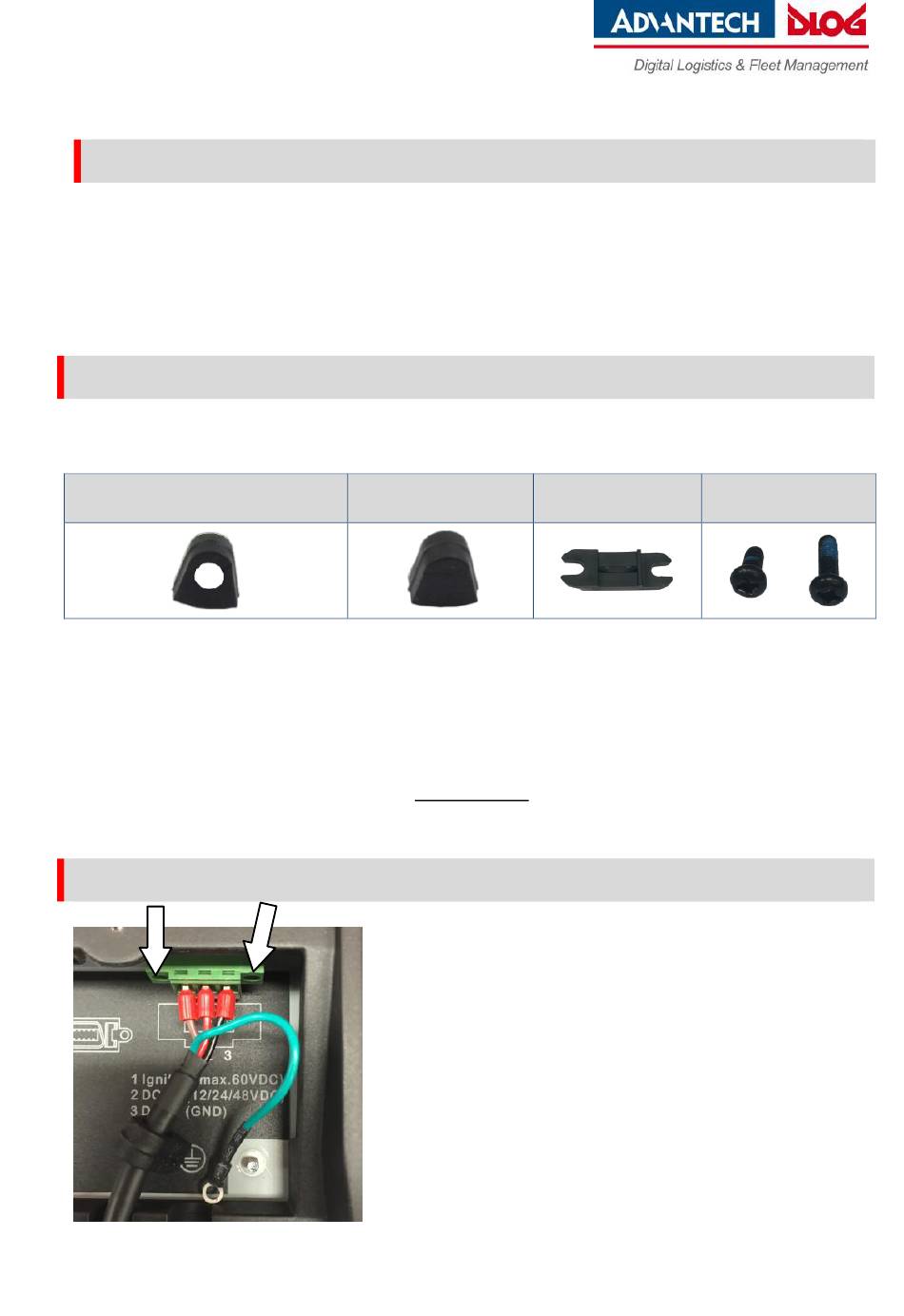

7.2 Preparing the cables, cable grommets and dummy grommets
Cable sealing set (included in the scope of delivery)
Cable grommets
(openings have different sizes)
 Lay out all cables which are ready to be connected.
 Check the cable diameters and cable elasticity as it will determine which cable grommet is the most
suitable (diameter of the opening).
IMPORTANT: The cable grommet must completely surround the cable.
The opening of the cable grommet must be slightly smaller than the cable diameter.
If the opening is too large or too small, the sealing of the device will not be ensured.
7.3 Plugging in and screwing on the power supply cable
Advantech-DLoG
Dummy grommets
 Plug the power supply cable into the power supply
plug-in location.
 Tighten both mounting screws hand-tight.
Quick Start Guide DLT-V4108, V01 PN:2005410870
Cable clips Mounting screws
