Quick Start Guide
DLT-V4108 Industrial PC
5

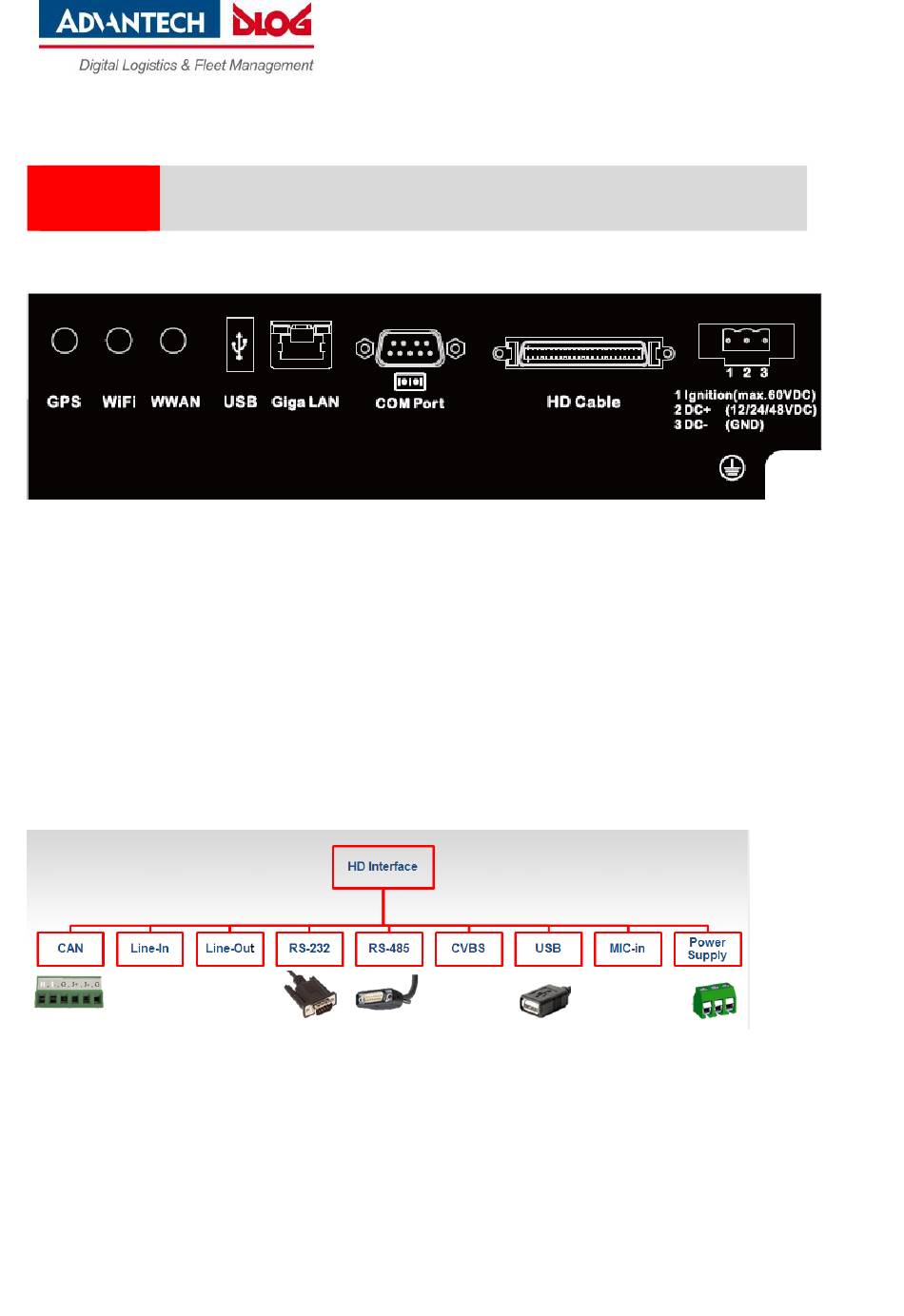

External connectors
Interfaces in the cable box under the cable cover
 GPS
 Wi-Fi interface for external antenna
 WWAN-interface for external antenna
 USB
 Giga LAN (RJ45)
 COM (12 V as default setting ) RS-232
 Power supply 12/24/48 nominal
 Optional : High Density interface (see below)
Master harness cable (HD interface):
CFast and USB 2.0 under the antenna cap
For service purpose.
