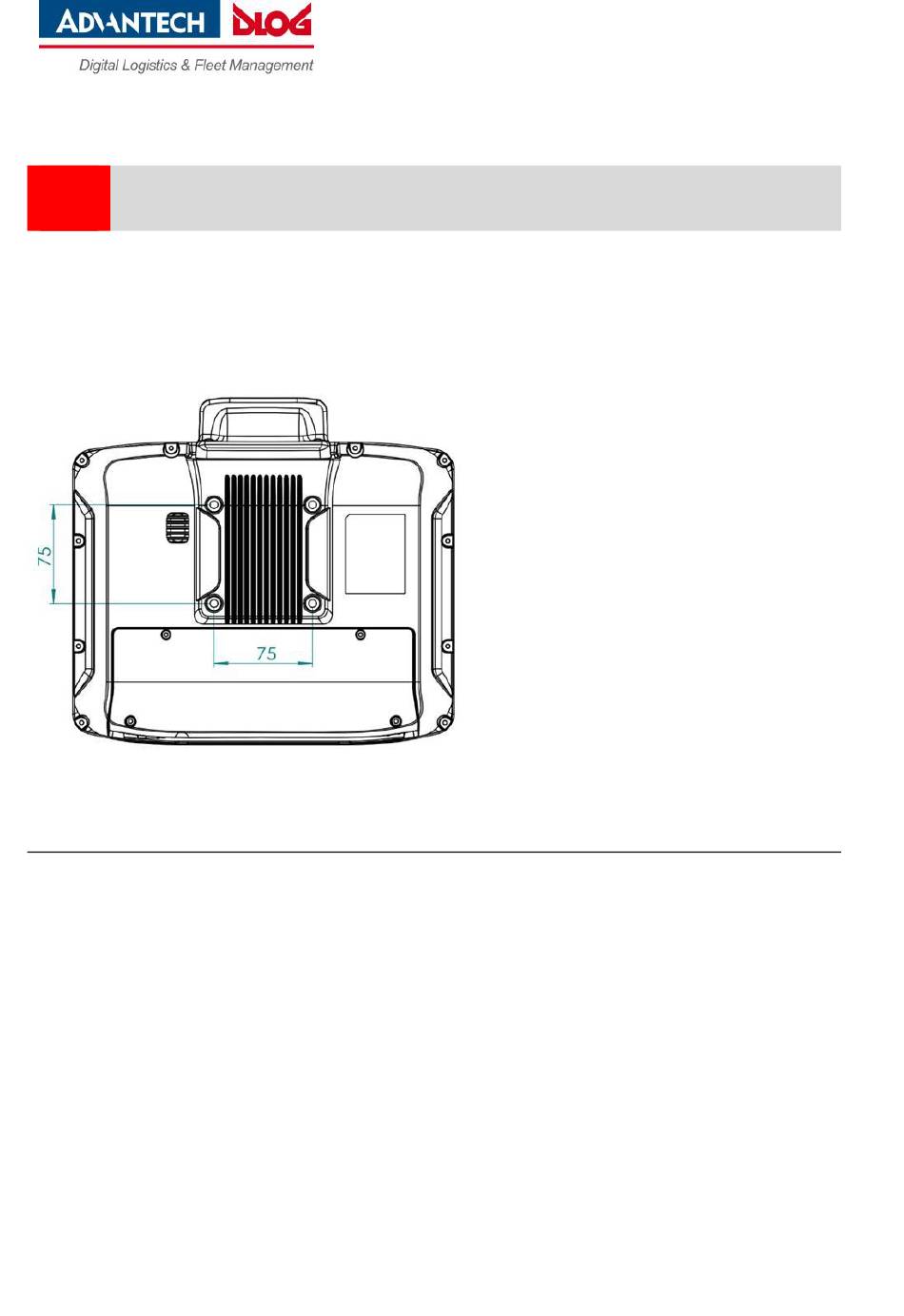

VESA-compatible drilling patterns
VESA-compatible drilling patterns for the RAM
rear side of the DLT-V4108.
Depth of thread: M6 x 8 mm DLT-V4108
NOTICE: Physical damage
Only use appropriate screws for fixing the RAM® attachment and swivel joint brackets to the VESA drill
holes: Depth of thread: M6 x 8 mm.
Screws that are too long can penetrate the back of the vehicle docking station and cause irreparable
damage. Screws that are too short do not provide secure mounting.
Use suitable mounting apparatus to avoid risk of injury.
