8. Touchscreen

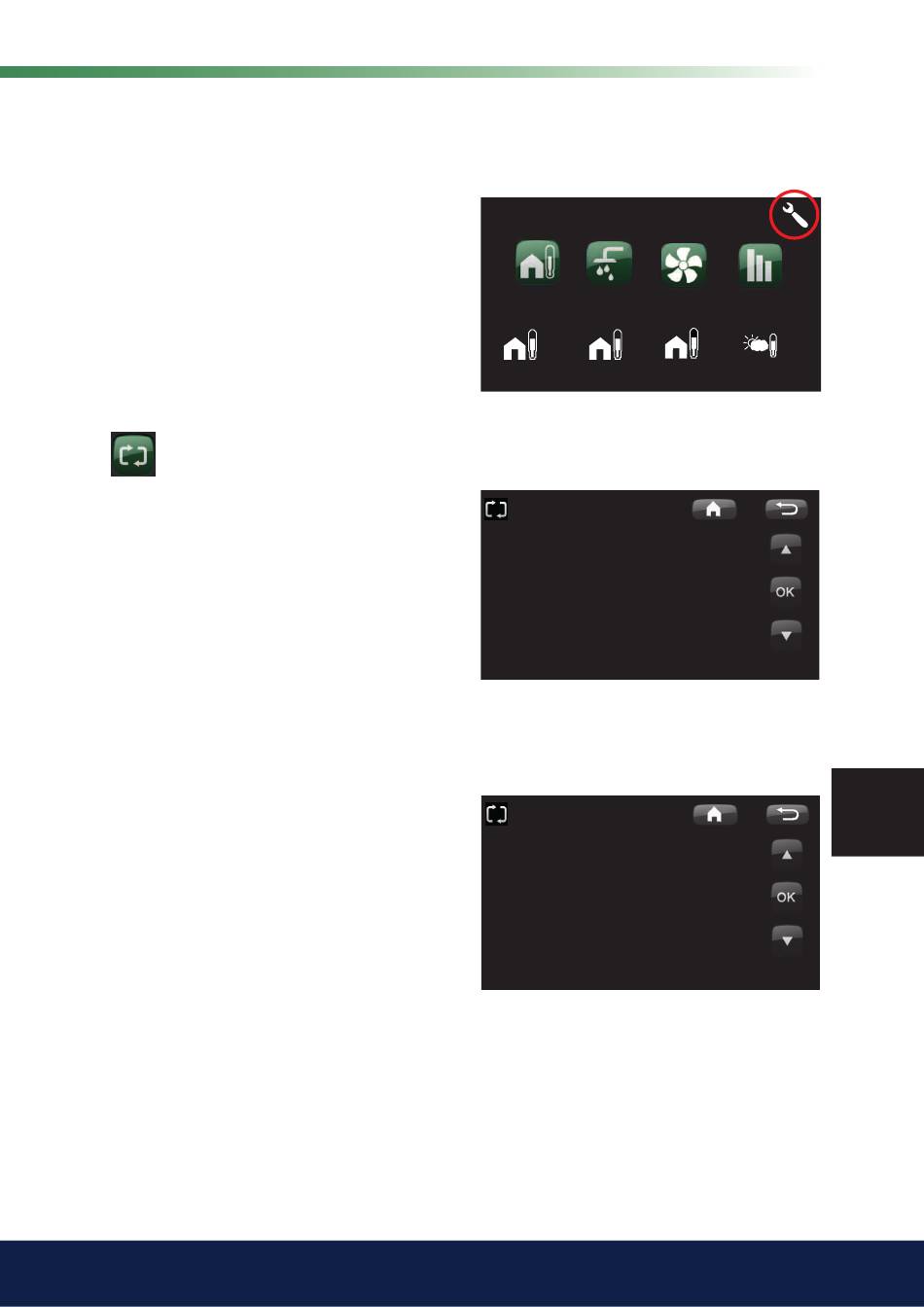

From the start menu you can access all submenus for
heating, hot water and ventilation system.
The menus for dei ning the CTC SmartControl accessories
are found behind the Advanced button, which is located
in the top right-hand corner of the start menu and is
represented by a spanner symbol.
For detailed information about all display menus available
on the main product, please see Installation and
Maintenance Manual .
8.1 Defi ne system
Check that the devices that will be controlled by the
SmartControl accessories have been dei ned. To dei ne
the ventilation unit EcoVent, EcoVent 20 should be
selected in the EcoVent line in the Advanced/Dei ne
system/ menu, as shown in the menu i gure. For the main
product CTC EcoVent i350F, the ventilation unit is pre-
dei ned (factory setting EcoVent-Yes in this line).
8.1.1 Defi ne SmartControl
accessories
SmartControl accessories are dei ned/connected to
the system in the menu Advanced/Dei ne system/
SmartControl.
Move down to the line SmartControl and press OK.
Pairing accessories with Gateway
• Select Yes in the line SmartControl to show the 7
channels (#1 to #7) available for wireless connection
of SmartControl accessories to the system.
It doesn't matter which accessory is placed on
which channel.
• Choose a line using the cursor and press the
OK button; Pair will appear on this line. Press the
OK button again.
• Press the Learn button on the accessory. See
the chapters for the respective accessories for
information on where the Learn button is located.
To connect a multi-button, choose a channel in the
same way and press the button.
Pairing should be implemented within 30 s (in the
example in the menu i gure above, 23 s remain for
establishing contact ) .
• Connect other accessories to available channels.
CTC EcoVent
Room temp. DHW Ventilation
1 2
22,2 ºC 21,2 ºC
Define system
<<
Pool
DHW circulation
External heat source
Input voltage
EcoVent
SmartControl
Remote control
Def. SmartControl
<<
SmartControl
#1 0000 Pair 23
#2 0000
#3 0000
#4 0000
#5 0000
#6 0000
#7 0000
English
Thursday 09:47
Operation
58 ºC -5 ºC
No
No
No
3x400 V
EcoVent 20
Yes
----- 0
----- 0
----- 0
----- 0
----- 0
----- 0
----- 0
EN
11
