Gateway

1.

General

1.1
Gateway (base unit) is supplied with an antenna, junction box (Y-split),
display cable and i tted connection cable (RJ10-connector).
Gateway communicates with up to seven different CTC SmartControl
accessories simultaneously.
The wireless sensors measure the temperature every 100 seconds (default
value). If a reading has changed by more than 2% since the previous
measurement, the new reading is sent to Gateway and is shown on the
display of the main product. A new reading is also sent after a preset
maximum time, as well as when a new sensor is connected and the "learn
button" is pressed.
For information about the function of the CTC SmartControl accessories
and their connection to Gateway, please see the respective chapters in this
manual.
1.2

Installation

• Place Gateway on a l at surface on the insulated top cover of the
main product and feed the connection cable (1.5 m), which is pre-
i tted in Gateway, through the opening at the top of the left side panel.
Pull down the cable along the inside of the side panel and i t it to the
antenna input on the junction box. The junction box can be attached to
the inside of the front cover with double-sided tape.
• Remove the existing display cable from the display unit of the main
product and connect it to one of the two outlets on one side of the
junction box.
• Connect the supplied display cable between the display unit and the
other outlet on the junction box.
EN
Display unit
The antenna base is magnetic and can be placed on a suitable metal surface
on top of the main product, in a place where good reception can be ensured.
1.3

First start

The SmartControl accessories are connected/dei ned via the main product
display. For more information, see the respective chapters for each
accessory.
4 CTC SmartControl

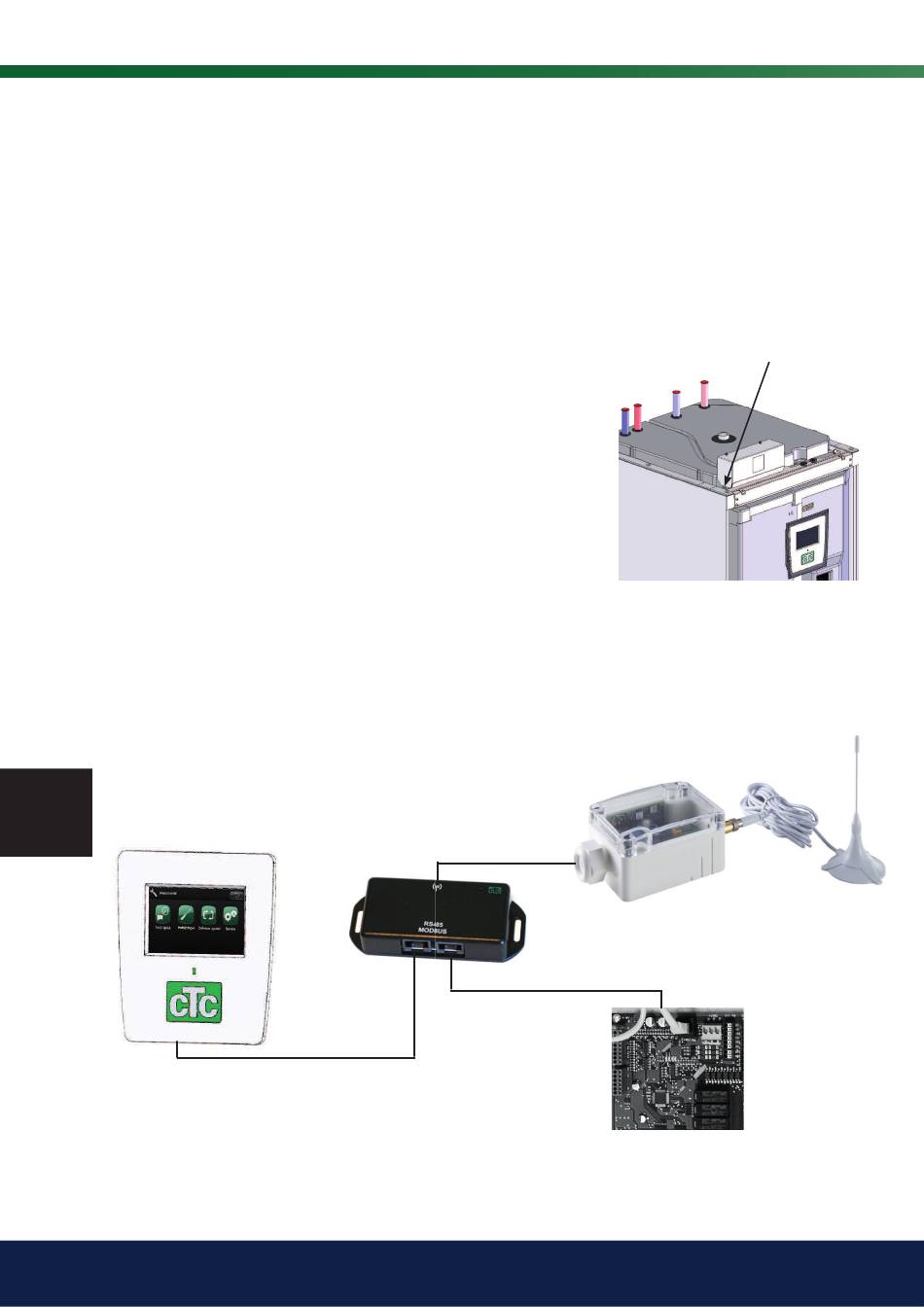

Connection cable
Junction
from Gateway
box/Y-split
Supplied display
cable
Gateway, antenna and cable
Existing display
Electrical box (circuit
cable
board A2) in main
product
Opening in left side panel
for possible cable lead-
through
