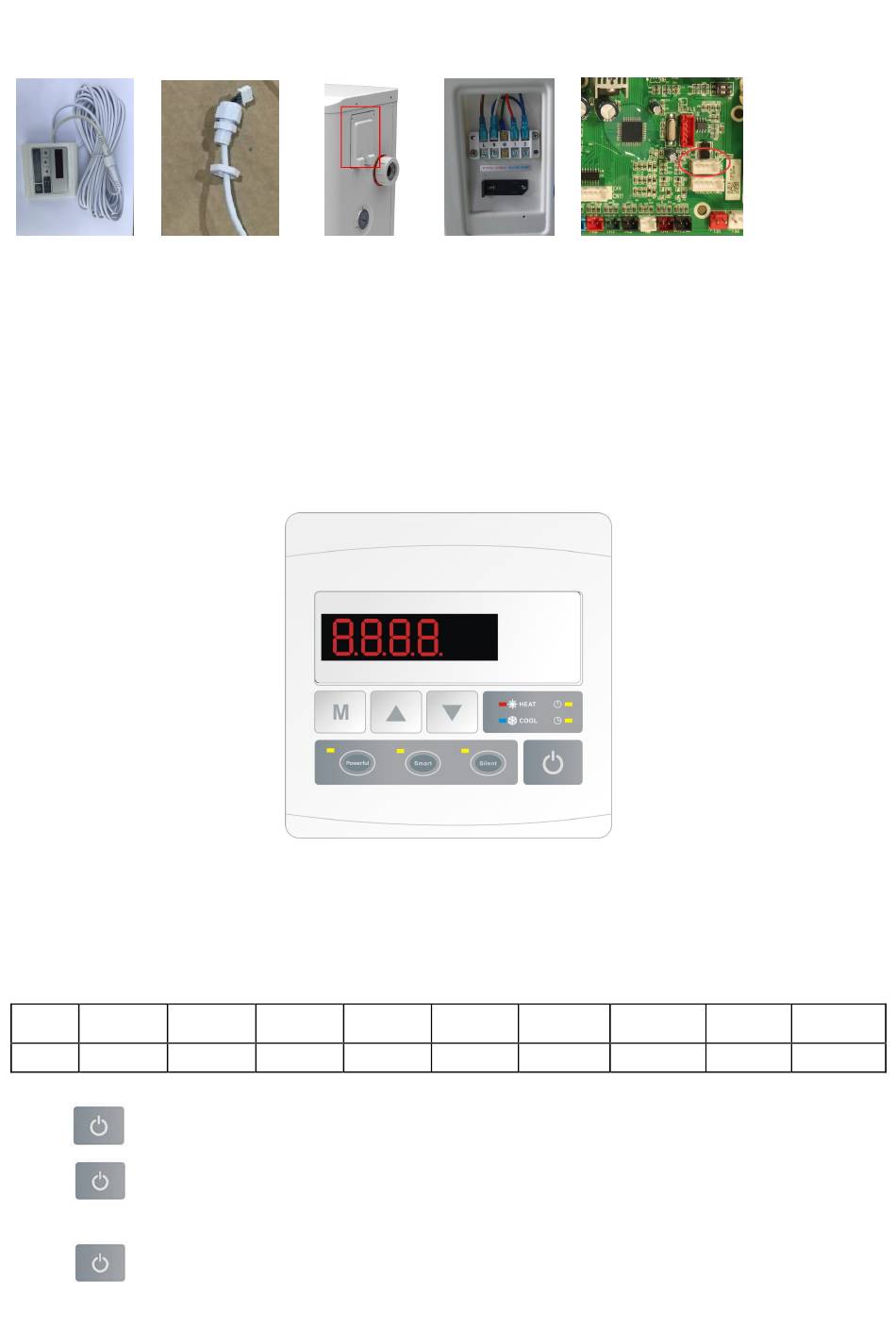

5.5 Installation of the display deportee
Photo(1)
- The side with plug connects with the control panel (photo1)
- The other side of the signal wire. (photo2)
- Open the wiring panel and put the side without plug through the electrical box. (photo3,4)
- Insert the wiring into the disignated position
6. Display Controller Operation
6.1 The buttons of LED wire controller
6.2 The keys and their operations
NOTE: Every time, when the heat pump connects to the power, the LED display shows a code for 3 seconds which
indicates the heat pump model.
Model
Z7/32
Code 1302
6.2.1 button
Press to start the heat pump unit, the LED display shows the desired water temperature for 5 seconds, then
shows the inlet water temperature and the operation mode.
Press to stop the heat pump unit and show "OFF"
Photo(2) Photo(3)
Z11/32 Z14/32
1304 1305
Photo(4)
(code:COM 1 or COM-L)
Z16/32 Z19/32
1306 1308
22
Photo(5)
on the PC board. (photo5)
Z24/32 Z24T
1311 1519
Z29/32 Z29T
1312 1520
