Gossen MetraWatt METRAVOLT 12D+L Bedienungsanleitung Seite 14

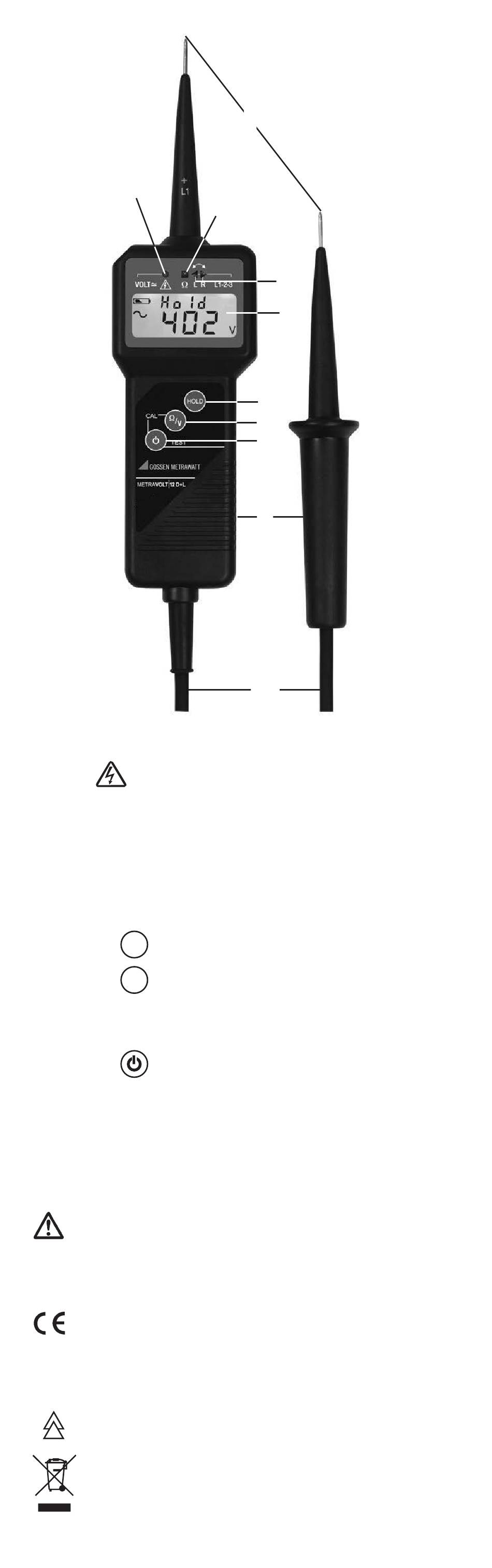

1 Test electrodes
2 Red
≥ 50 V AC / 120 V DC
3 Green LED „Ω"
for continuity 0 ... 1999 kΩ
(acoustic signal signalizes continuity)
4 RED LEDs for rotating field left/right
5 Display (LCD)
6 Button
HOLD
7 Button
Ω / V
resistance and voltage measurements and
zero balancing of the kΩ range
8 Button
function test
9 Handgear
10 Connecting line
Symbols on the instrument
Attention! Observe user instructions!
Indicates EC conformity
TR
On-time at highest nominal voltage
on
RT
Recovery time after tests with highest nominal voltage
off
Device for live working
This devices may not be disposed with the domestic
waste (WEEE 2012/19/EU).
Please contact www.gmci-service.com in regard to the
return of old devices.
14
2
3
-LED for hazardous voltages
: function to recording values
: change-over switch for
: switch on/off (manual) and
1
4
5
6
7
8
9
10
