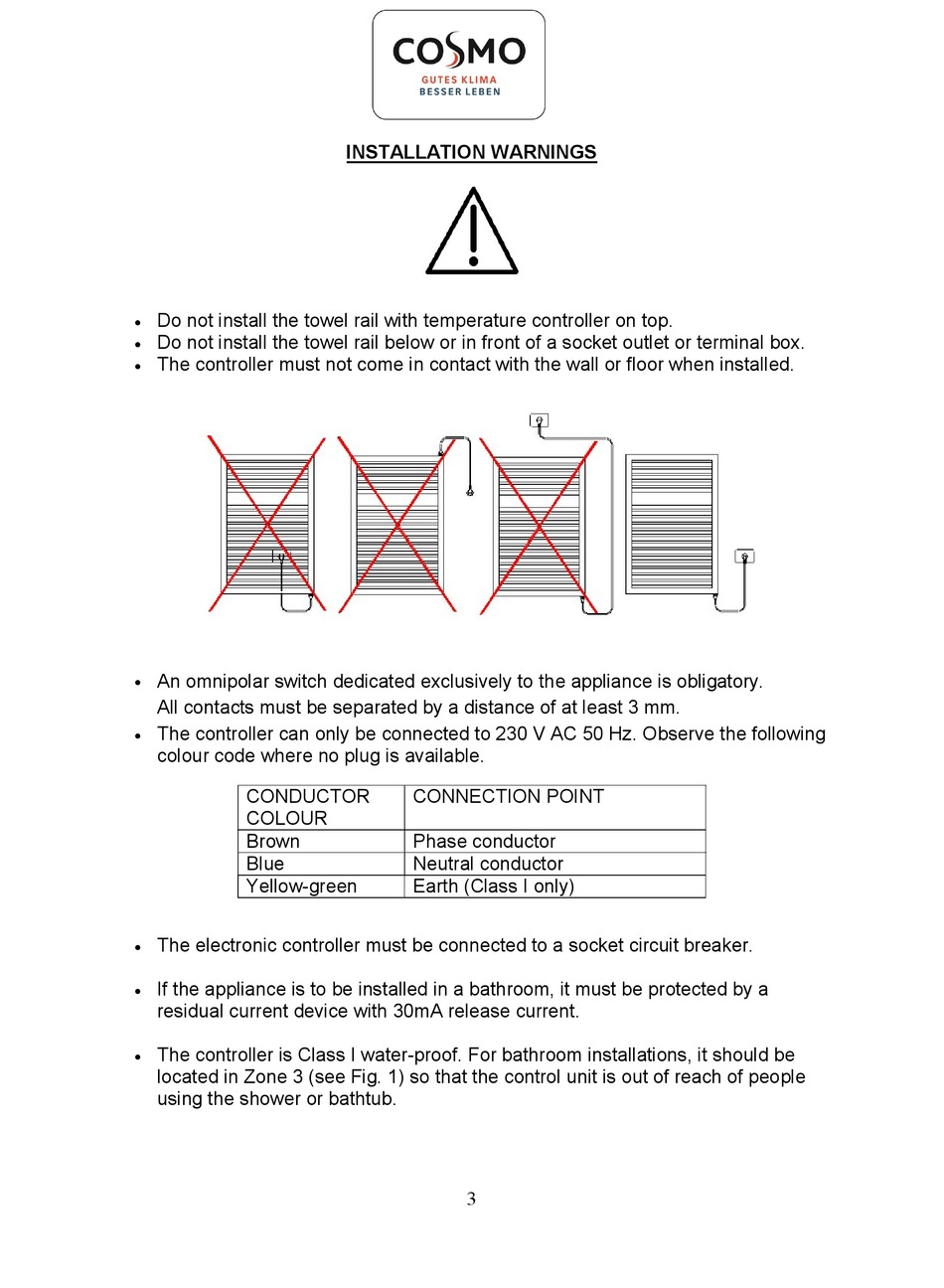

Installation Warnings - Cosmo CLASSIC Installations-, Bedienungs- Und Gebrauchsanweisung

Do not install the towel rail with temperature controller on top.

Do not install the towel rail below or in front of a socket outlet or terminal box.

The controller must not come in contact with the wall or floor when installed.

An omnipolar switch dedicated exclusively to the appliance is obligatory.

All contacts must be separated by a distance of at least 3 mm.
The controller can only be connected to 230 V AC 50 Hz. Observe the following

colour code where no plug is available.
CONDUCTOR
COLOUR
Brown
Blue
Yellow-green
The electronic controller must be connected to a socket circuit breaker.

If the appliance is to be installed in a bathroom, it must be protected by a

residual current device with 30mA release current.
The controller is Class I water-proof. For bathroom installations, it should be

located in Zone 3 (see Fig. 1) so that the control unit is out of reach of people
using the shower or bathtub.

INSTALLATION WARNINGS

CONNECTION POINT
Phase conductor
Neutral conductor
Earth (Class I only)
3
