Cable length

SSI: The maximum Clk frequency f

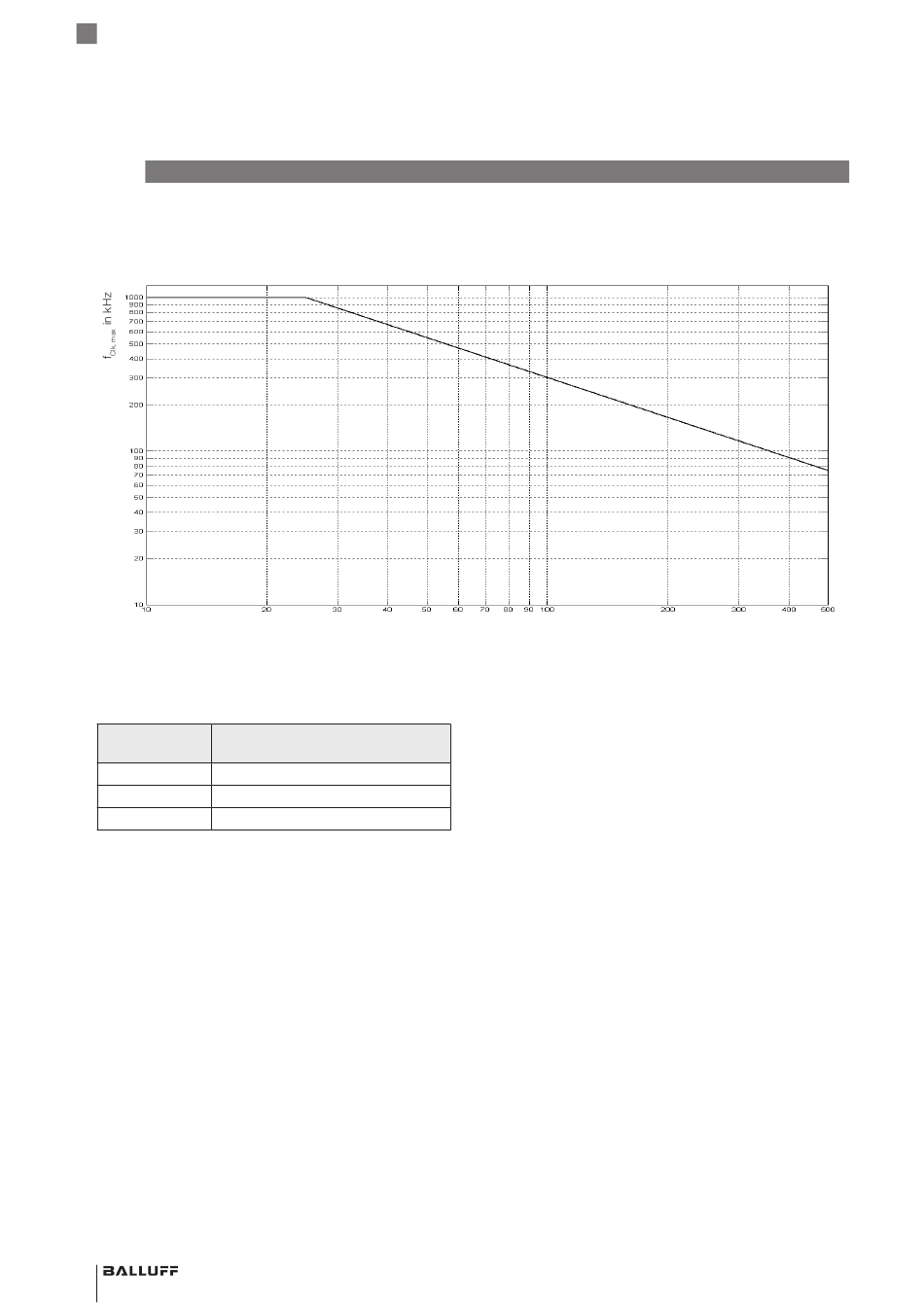

Fig. 9-1: Maximum Clk frequency depending on the cable length
BiSS C:
Clk frequency Max. cable length with runtime
compensation
2.50 MHz 100 m
1.66 MHz 200 m
1.11 MHz 400 m
Tab. 9-1: BiSS C Clk frequency
30 english
is dependent on the cable length.
Clk, max
Cable length in m
