1. Press the red "0 / 22K" button to activate the 22kHz switching (only DVB-S).
2. Press the green "13 / 18V" key to activate the 13 / 18V switch for the horizontal / vertical
control (only DVB-S).
Press the ◄Left / Right► keys to cycle through the frequencies and select a desired
3.
frequency. Confirm your selection with the OK button to perform a search for a signal at the
selected frequency peak.

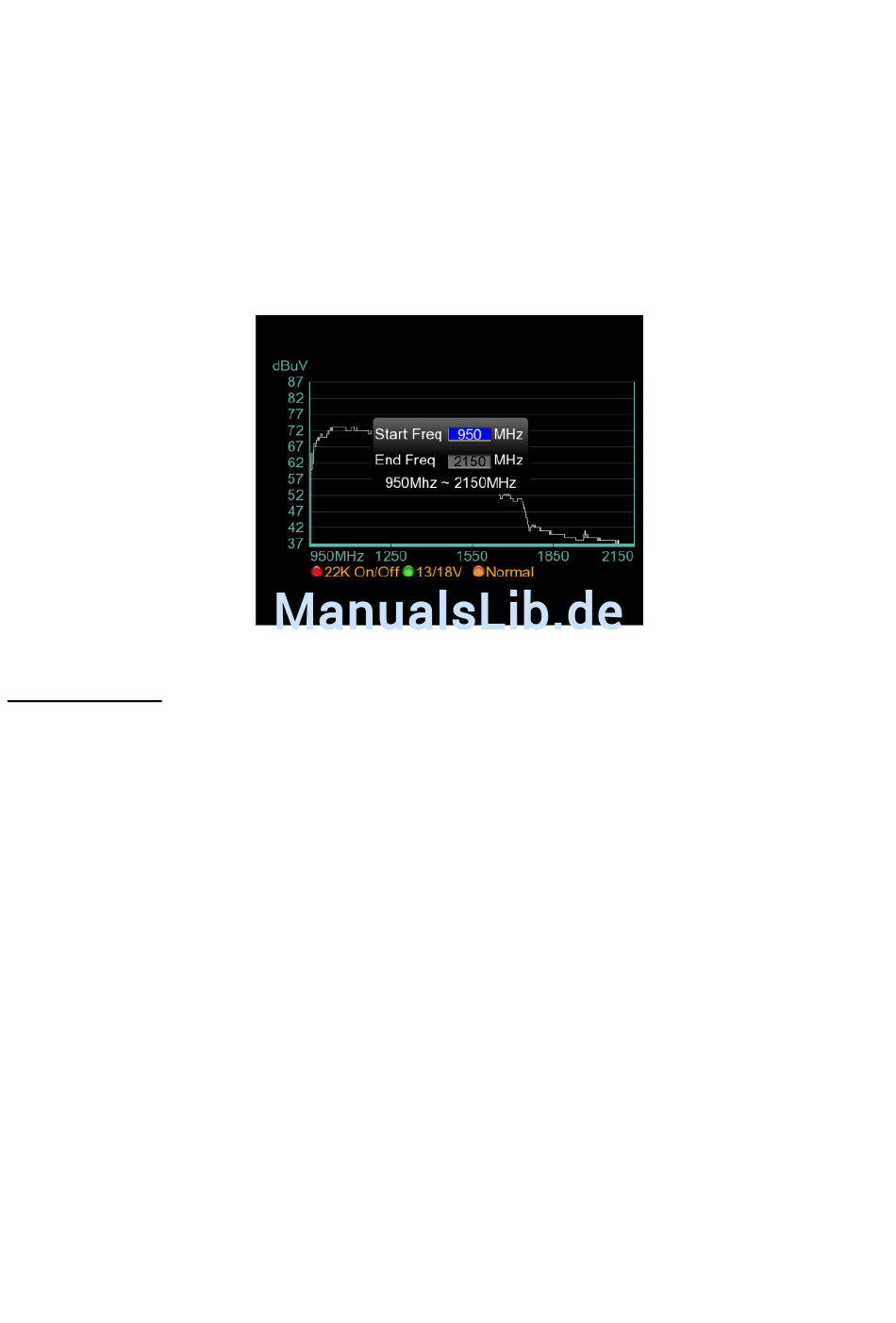

4. Press the "AN / DG" button again to set the start and stop frequencies for the spectrum
analysis. You can enter the parameters using the numeric keypad:

6.9. Live TV view

After turning on the unit or from every menu, you can repeatedly press the "Exit" button to switch to
the Live-TV view. Only if already a program search in DVB-S, DVB-C or DVB-T mode was performed
and the channels found are stored in the program list a Live TV picture is shown. The Live TV View
helps diagnosing problems in picture and sound and can also be used as a complete TV receiver
replacement due to its HDMI connector. Description of the various functions and key operations in the
live TV image:
1. MENU: Return to the main menu by pressing the Menu button.
2. AN / DG: Use to switch from the Live TV to the spectrum analyzer mode.
3. 0/22K: Press the 0/22K button once to turn the screen on or off to save battery power. The
device still runs with switched – off screen, so that a signal search can be performed only
with the acoustic signal. When a USB storage device is connected, the 0/22KHz button
toggles the recorder function, which is described in chapter 6.10.
4. FIND: Pressing the FIND button automatically takes you to the DVB-S signal search menu.
(Setting the Start-/Stop frequency)
-58-
