6.5. DVB-S/S2 Setup

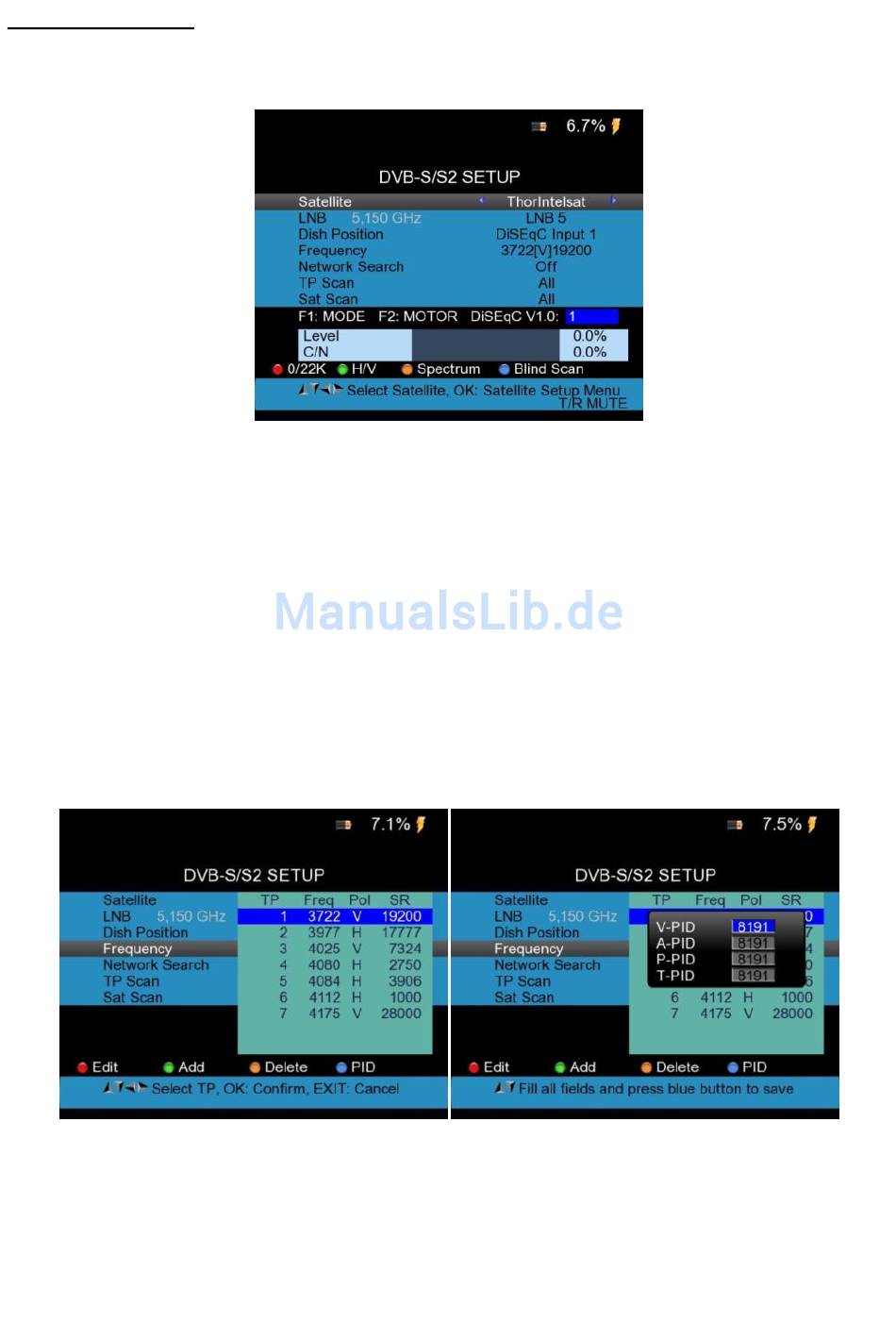

To perform a channel scan for DVB-S or DVB-S2 satellite signals after setting, use the DVB-S / S2
signal search menu, which is displayed as follows:
1. Satellite: Press the OK button to display the satellite list. Select the desired satellite using
the ▲Up / down▼ and ◄Left / Right► button. Confirm your selection with the OK button.
2. LNB: Select the appropriate LNB, for which you have set the settings in the previous menu
"LNB configuration".
3. Dish position: Displays the selected in "LNB configuration" settings for DiSEqC.
Frequency: Selects the transponder to be tested for the selected satellite with the ◄Left /
4.
Right► keys. Confirm to open a menu with the OK button. The available options are derived
from the satellite data of the selected satellite, but can be edited in the selection menu,
press the red "0 / 22KHz" button to add a new transponder (green H / V-button) or delete
(yellow AN / DG-button) or the PID information (blue FIND button):
-51-
