6.
Auto Scan: Starts the channel search over the entire DVB-C frequency spectrum with the
OK button. With the ◄Left / Right► button you can select before whether "all" stations incl.
Pay-TV will be searched or "FTA Only", with encrypted programs not listed. The channels
found are listed in a table, such as in the TP search in the previous section.
7.

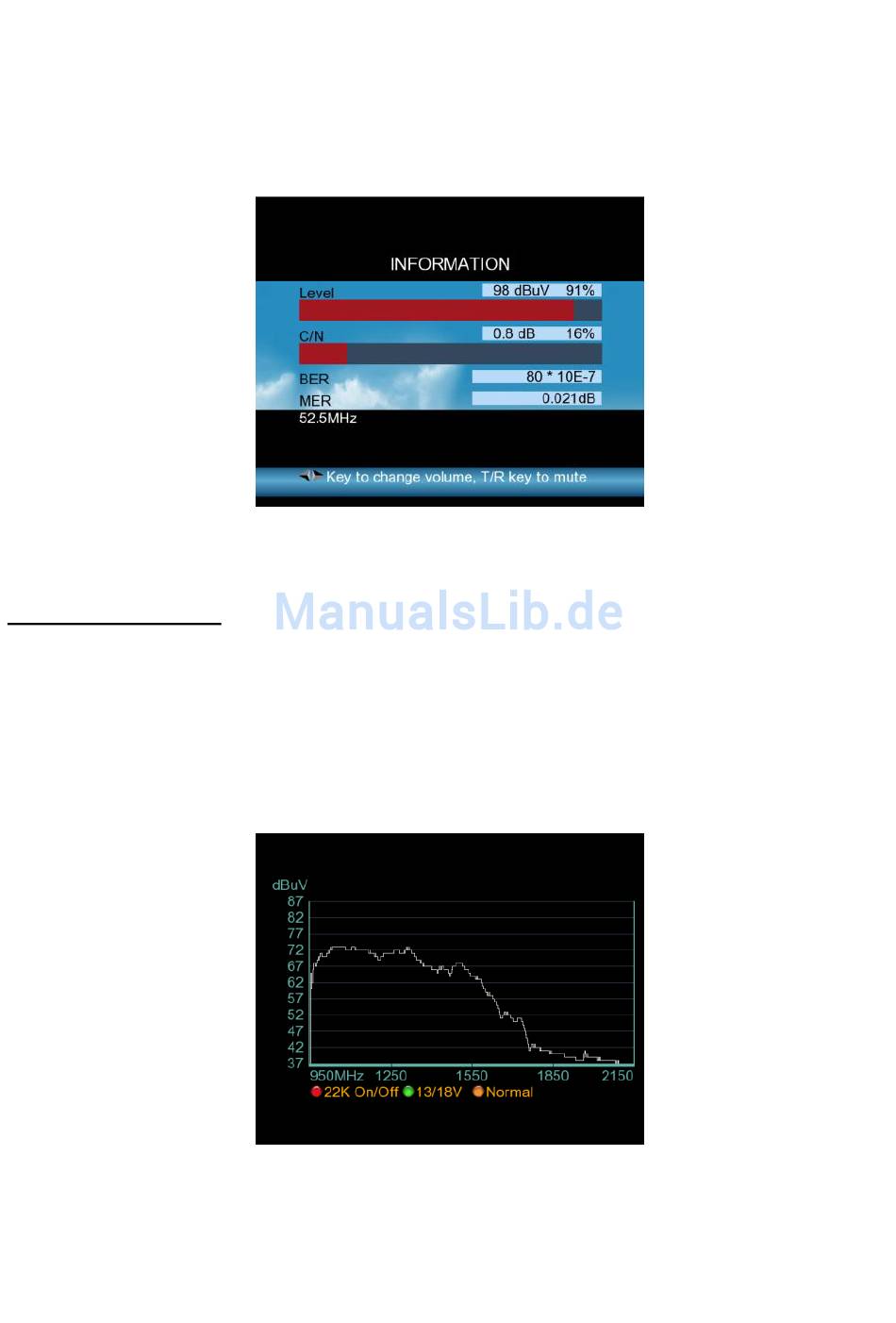

Signal Information: Press the DVB-C menu the F1 key, the information about the signal
strength and quality at the selected frequency will be displayed as follows:
8.
After completing the channel search, you can save the found stations and switch to the LIVE
TV view with the EXIT-button.
6.8. Spectrum Analyzer
The spectrum analyzer is used for graphic representation of the frequencies over the entire bandwidth
of the received signal. This can help when it is not known at what frequency a signal can be found.
Use the arrow keys ◄Left / Right► to navigate to any frequency peak and there start a targeted signal
search.
®
The PeakTech
9020 allows a spectrum analysis both in satellite systems, as well as cable or
terrestrial systems.
Select the desired function to represent the spectrum analysis, by pressing the AN/DG-button in the
DVB-S, DVB-T or DVB-C menu. The following menu will be shown:
(Display of the spectrum: e.g. DVB-S)
-57-
