6.6. DVB-T/T2 Setup

Select the DVB-T signal search from the main menu with the arrow keys to search for channels that
are transmitted over a terrestrial signal (antenna). For this purpose, a connection of the RF socket on
®
PeakTech 9020 with an antenna is necessary. It can be connected to the recommended DVB-T
antenna, as well as to still existing roof antennas. There are no DVB-T signals over the cable network
or satellite connection. The following menu for the DVB-T signal search will appear:

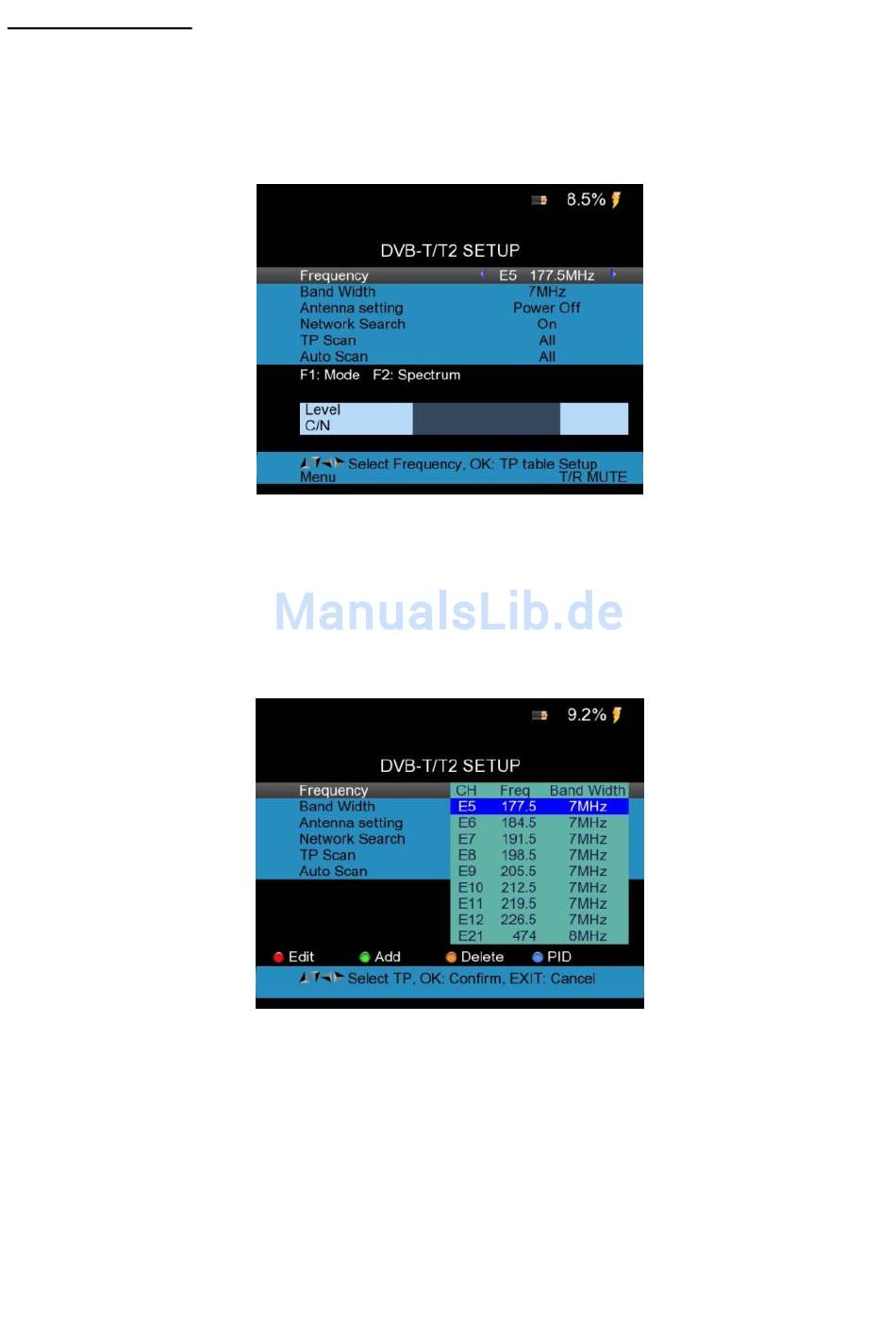

1. Frequency: Displays the selected channel with the corresponding frequency. Select the
channel with the ◄Left / Right► arrow keys or press the OK button to open the frequency
list. The available options are derived from the data of the specified DVB-T channels, but
can be changed by pressing the red "0 / 22KHz" button. In this menu you can add a new
transponder (green H / V-button) or delete (yellow ON / See DG-key) or change the PID
information (blue FIND button):
2. Bandwidth: Displays the bandwidth of the currently selected transponder.
3. Antenna setting: The device can supply voltage to an antenna if necessary. Change these
options with the ◄Left / Right► arrow buttons between "Power Off" for passive antennas,
5V / 12V or 24V for active DVB-T antennas.
