6.4. Positioner Menu

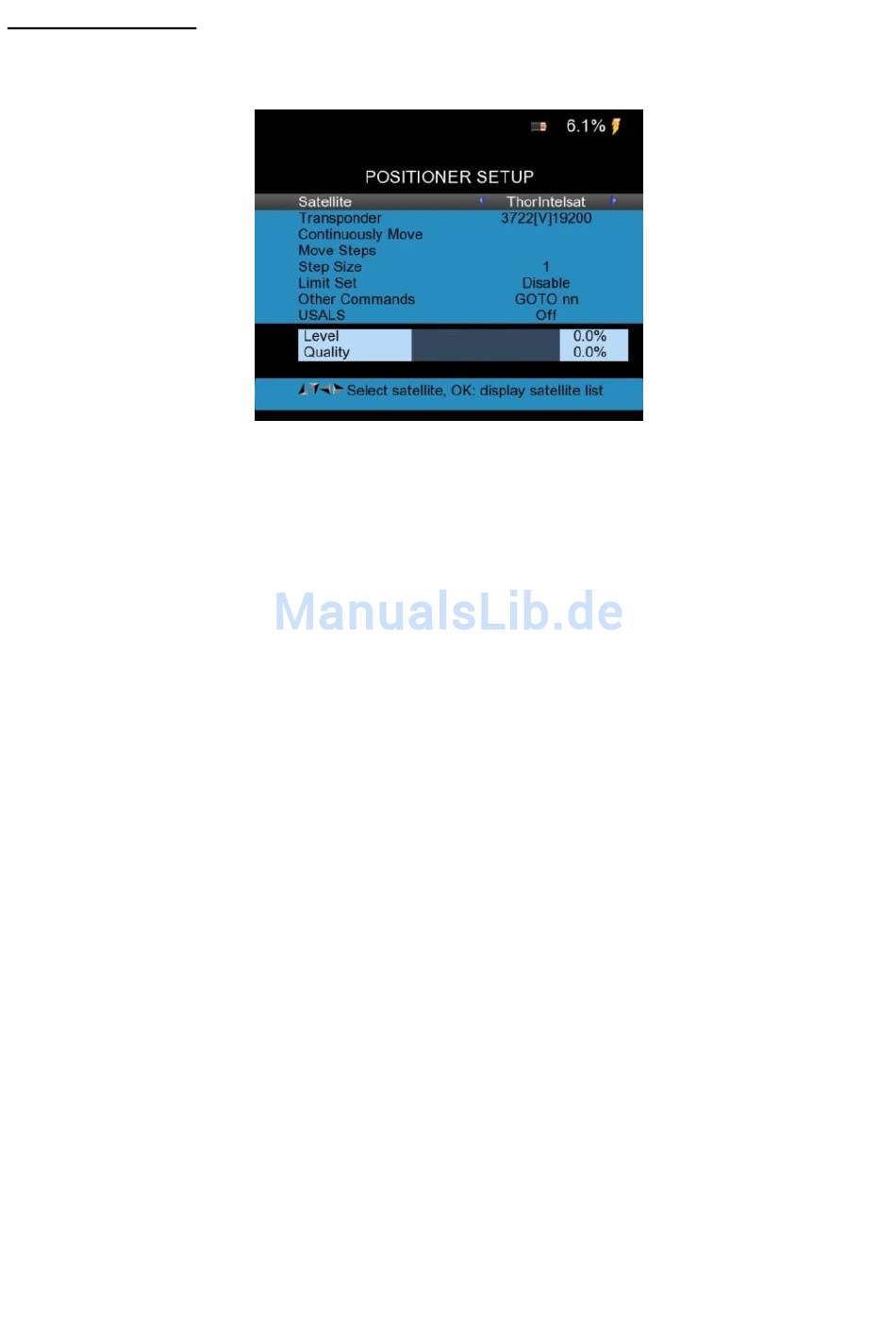

To access the menu for the positioning of electronically moving parabolic antenna, select the
"Positioner Setup" with the arrow keys from the main menu and press the OK button:
Satellite: Select the satellite with the ◄Left/ Right► arrow keys.
1.
Transponder: Select a suitable transponder with the ◄Left/ Right► arrow keys.
2.
Continuously move: Use the parabolic antenna to move the ◄Left/ Right► arrow keys
3.
continuously to the left or right and press the OK button to save the current position.
Move Steps: Use to move the ◄Left/ Right► arrow keys to move the dish in steps to the
4.
left or right and press the OK button to save the current position.
Step Size: Use to set the ◄Left/ Right► arrow keys to set the step size in degrees and the
5.
OK button to save the current setting.
Limit Set: Use to set the ◄Left/ Right► arrow keys to limiting the rotational position and the
6.
OK button to save the current setting.
Other Commands: Use to set the ◄Left/ Right► arrow keys to limiting the rotational
7.
position and the OK button to open a selection menu.
USALS: Use to switch the ◄Left/ Right► arrow keys to move between USALS (antenna
8.
positioning by reference satellite) ON and OFF.
-50-
