Fujitsu PRIMERGY TX2540 M1 Wartungshandbuch Seite 409

PSU
MoBo
USB3.0 P5
Controller
CN3
SAS/ Raid
MLC1
Controller
MLC1 MLC2

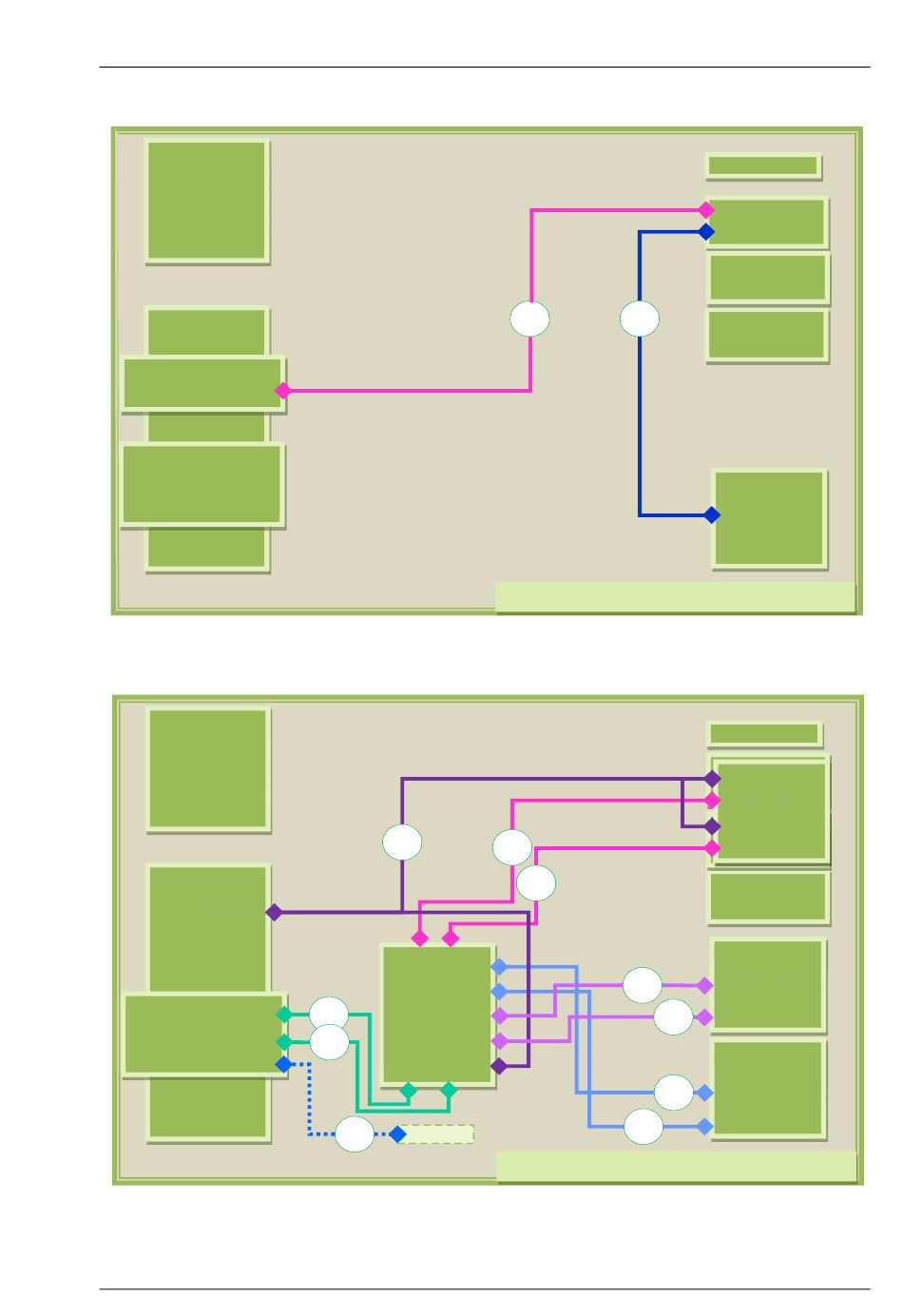

Bild 304: Verkabelung von 4x 3,5-Zoll-Festplatten und USB3.0-Back-Laufwerk
PSU
MoBo
P5
SAS/ Raid id
MLC1
Controller
MLC2
MLC1
Bild 305: Stromverkabelung mit 2,5-Zoll Festplatten und 8x 2,5-Zoll Festplatten-
Erweiterungsbox
TX2540 M1
C6
X6 X5
X2
X1
Expander der
X4
C20
X3
C20
X20
MLC1 MLC2 2
BBU
C22
Upgrade und Maintenance Manual
C37 C35
USB3.0 Backup Drive
C44
C44
C43
C43
C42
C42
Cabling HDDs SFF with Expander
Verkabelung
Op. Panel
Access. Slot Access. Slo
Backup
Access. Slot
Access. Slot
HDDs 4x
X9
HDD 1-4
X1
Op. Panel
Access. Slot
HDD Bo HDD Box
X6
Backup Drv
X1 HDD 21-24
8xSFF 8xSFF
Access. Slot
X6
Backup Drv
X1 HDD 17-20
Access. Slot
HDDs
8xSFF
X9
HDD 13-16
X1
X9
HDD 9-12
X1
HDDs
8xSFF
X9
HDD 5-8
X1
X9
HDD 1-4
X1
