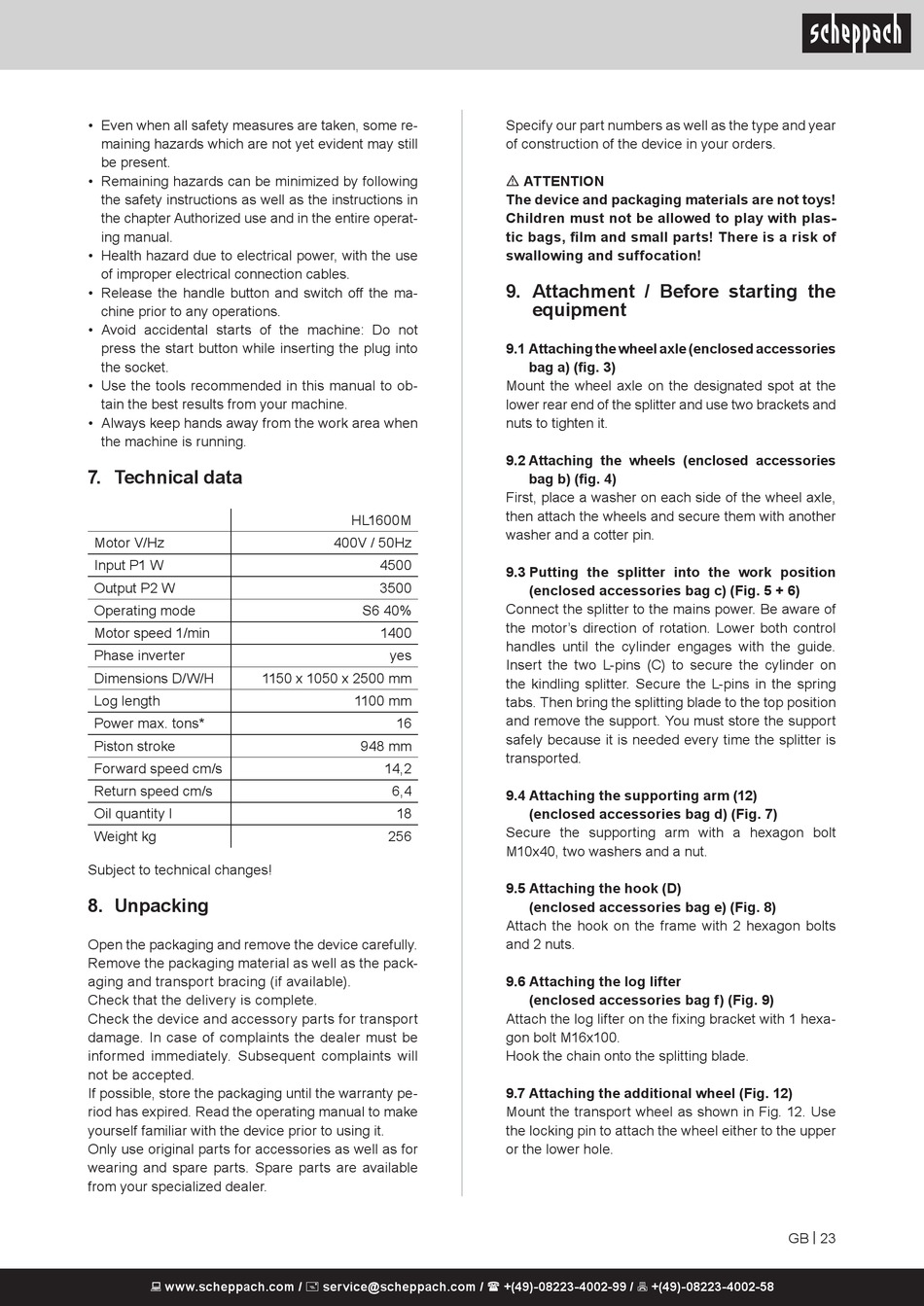

• Even when all safety measures are taken, some re-
maining hazards which are not yet evident may still
be present.
• Remaining hazards can be minimized by following
the safety instructions as well as the instructions in
the chapter Authorized use and in the entire operat-
ing manual.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Release the handle button and switch off the ma-
chine prior to any operations.
• Avoid accidental starts of the machine: Do not
press the start button while inserting the plug into
the socket.
• Use the tools recommended in this manual to ob-
tain the best results from your machine.
• Always keep hands away from the work area when
the machine is running.

7. Technical data

Motor V/Hz
Input P1 W
Output P2 W
Operating mode
Motor speed 1/min
Phase inverter
Dimensions D/W/H 1150 x 1050 x 2500 mm
Log length
Power max. tons*
Piston stroke
Forward speed cm/s
Return speed cm/s
Oil quantity l
Weight kg
Subject to technical changes!

8. Unpacking

Open the packaging and remove the device carefully.
Remove the packaging material as well as the pack-
aging and transport bracing (if available).
Check that the delivery is complete.
Check the device and accessory parts for transport
damage. In case of complaints the dealer must be
informed immediately. Subsequent complaints will
not be accepted.
If possible, store the packaging until the warranty pe-
riod has expired. Read the operating manual to make
yourself familiar with the device prior to using it.
Only use original parts for accessories as well as for
wearing and spare parts. Spare parts are available
from your specialized dealer.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Specify our part numbers as well as the type and year
of construction of the device in your orders.
m ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plas-
tic bags, film and small parts! There is a risk of
swallowing and suffocation!
9. Attachment / Before starting the
9.1 Attaching the wheel axle (enclosed accessories
Mount the wheel axle on the designated spot at the
lower rear end of the splitter and use two brackets and
nuts to tighten it.
9.2 Attaching the wheels (enclosed accessories
First, place a washer on each side of the wheel axle,
then attach the wheels and secure them with another
HL1600M
washer and a cotter pin.
400V / 50Hz
4500
9.3 Putting the splitter into the work position
3500
Connect the splitter to the mains power. Be aware of
S6 40%
the motor's direction of rotation. Lower both control
1400
handles until the cylinder engages with the guide.
yes
Insert the two L-pins (C) to secure the cylinder on
the kindling splitter. Secure the L-pins in the spring
1100 mm
tabs. Then bring the splitting blade to the top position
and remove the support. You must store the support
16
safely because it is needed every time the splitter is
948 mm
transported.
14,2
6,4
9.4 Attaching the supporting arm (12)
18
Secure the supporting arm with a hexagon bolt
256
M10x40, two washers and a nut.
9.5 Attaching the hook (D)
Attach the hook on the frame with 2 hexagon bolts
and 2 nuts.
9.6 Attaching the log lifter
Attach the log lifter on the fixing bracket with 1 hexa-
gon bolt M16x100.
Hook the chain onto the splitting blade.
9.7 Attaching the additional wheel (Fig. 12)
Mount the transport wheel as shown in Fig. 12. Use
the locking pin to attach the wheel either to the upper
or the lower hole.
equipment
bag a) (fig. 3)
bag b) (fig. 4)
(enclosed accessories bag c) (Fig. 5 + 6)
(enclosed accessories bag d) (Fig. 7)
(enclosed accessories bag e) (Fig. 8)
(enclosed accessories bag f) (Fig. 9)
