6. CH1/CH2 Protect Indicator LED (RED):
The leds will light up in three situations:
After turning on the power within 4-6 minutes and after turning
off the power.
When the temperature of the power transistor is over 90°.
When there is a defect.
7. Power On Indicator LED (RED):
Indicates that the amplifier is turned on.

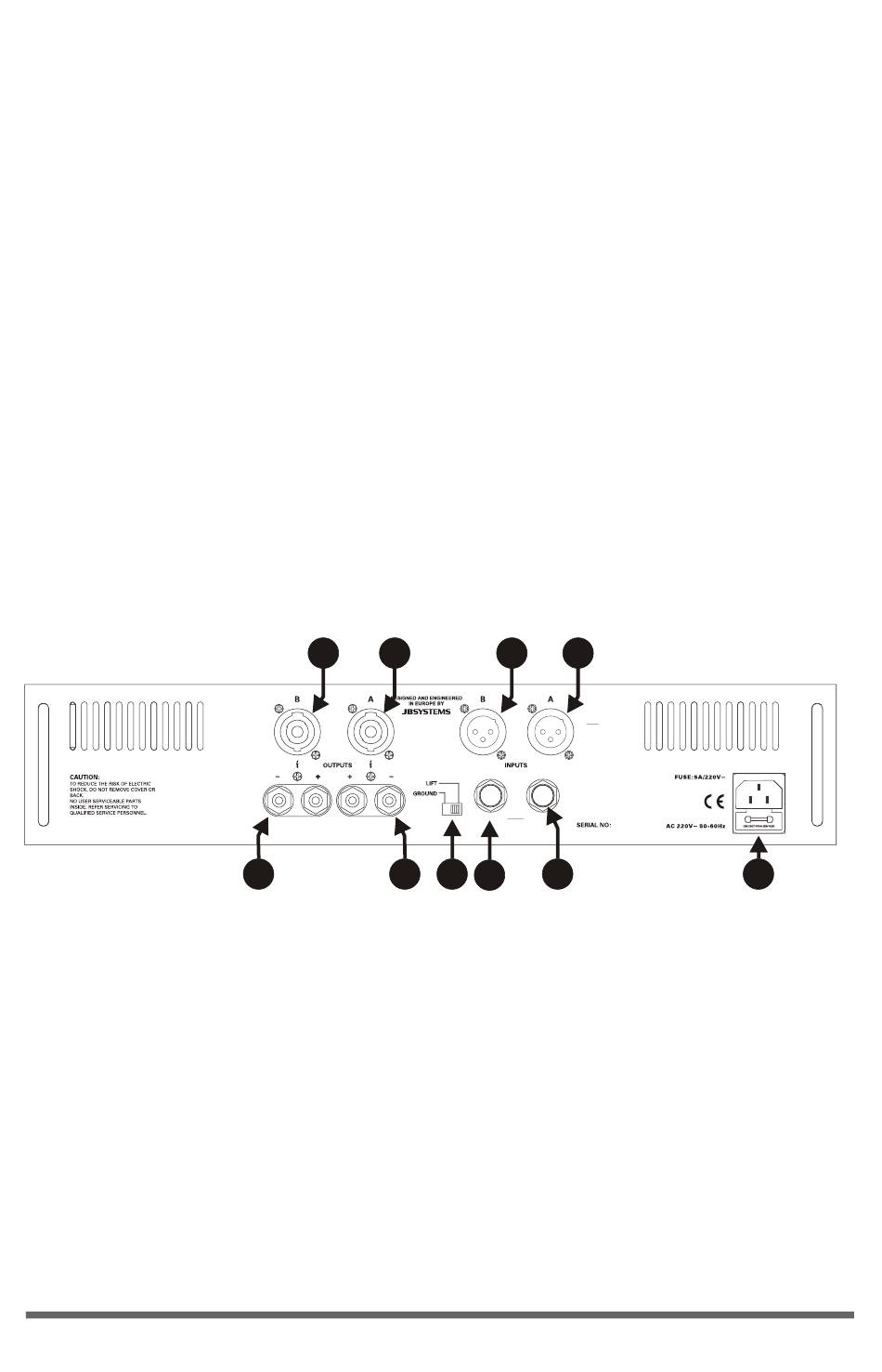

REAR PANEL

OUTPUT WIRING:
STEREO OUTPUT SPEAKON:
(PIN1+/PIN2+)+, (PIN1-/PIN2-)-
1. Standard Power Connector (Fuse Socket):
Attention: use the correct fuse when changed.
2. CH1/CH2 Output Connector: Use Speakon connector
3. CH1/CH2 Output Connector: Use Binding post connector
4. Ground Lift Switch.
5. CH1/CH2 Input Connector: Use a 1/4" connector
6. CH1/CH2 Input Connector: Use an XLR connector
AX400
2 2
STEREO OUTPUTS: 2x 200 Watt / 4 OHM
3 3
6 6
XLR:
PIN1: GND
PIN2: +
PIN3: -
JACK:
TIP: +
RING: -
SLEEVE: GND
4 5 5 1
4
