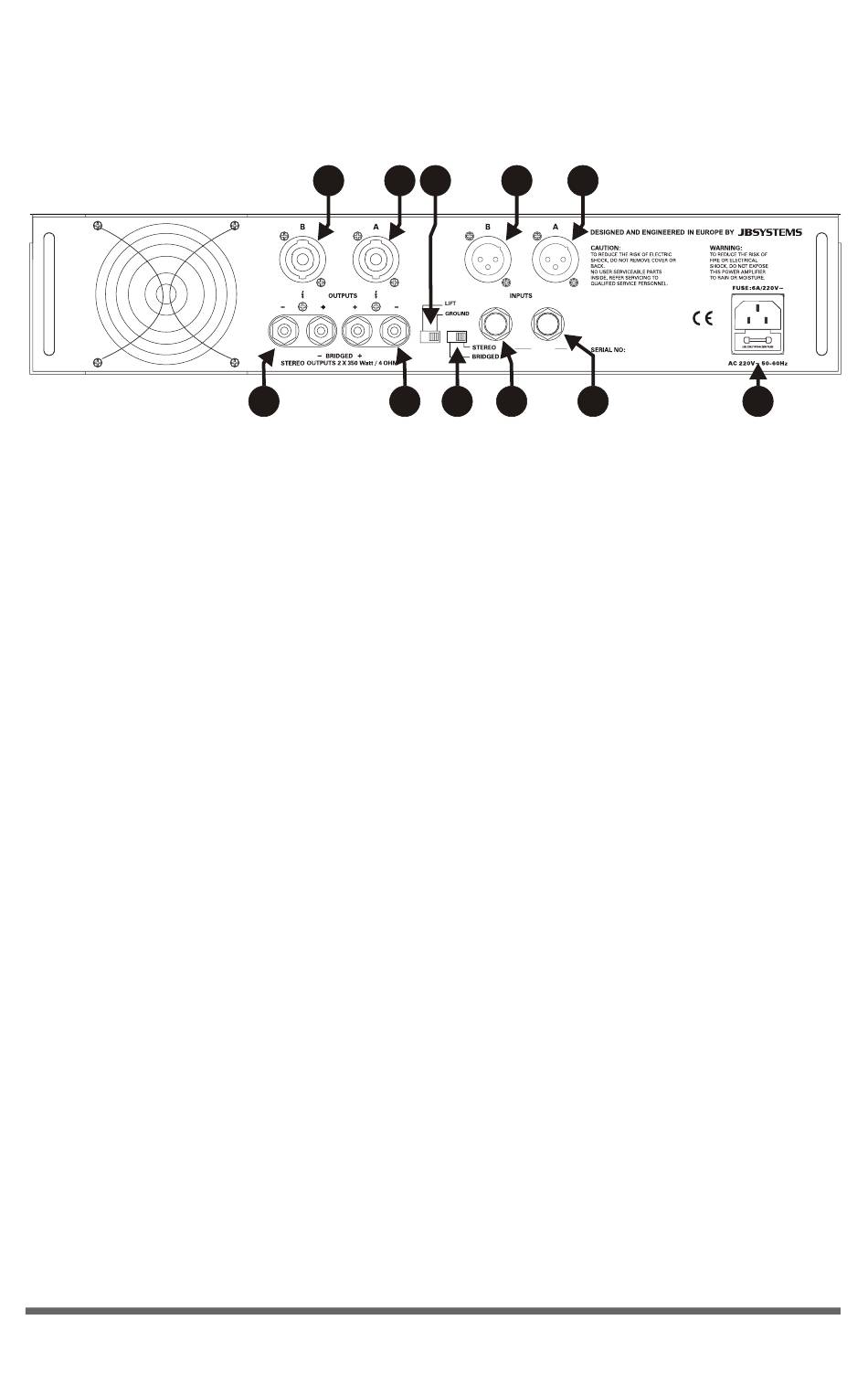

REAR PANEL

1. Standard Power Connector (Fuse Socket):
Attention: use the correct fuse when changed.
2. CH1/CH2 Output Connector: Use Speakon connector
3. CH1/CH2 Output Connector: Use Binding post connector
4. Ground Lift Switch.
5. CH1/CH2 Input Connector: Use a 1/4" connector
6. CH1/CH2 Input Connector: Use an XLR connector
7. Mode Selector: two modes to select:
A. Stereo Mode
B. Bridge Mode (CH1 working): output voltage double
AX700
2 2
3 3
4 6 6
OUTPUT WIRING:
STEREO OUTPUT SPEAKON:
(PIN1+/PIN2+)+, (PIN1-/PIN2-)-
BRIDGE OUTPUT SPEAKON:
A(PIN1+/PIN2+)+, B(PIN1+/PIN2+)-
JACK: XLR:
TIP: + PIN1: GND
RING: - PIN2: +
SLEEVE: GND PIN3: -
7 5 5 1
4
