In the instance where the recess is created before installation
of the shower enclosure, refer to drawings
depict some examples; we recommend the following space, in
particular, is provided:
- between the panel (L) and the tray (R) - (only Frame 100/120);
- between the panel (L1) and the frame (C).
This space is necessary for installation of the shower tray and
other shower enclosure components.

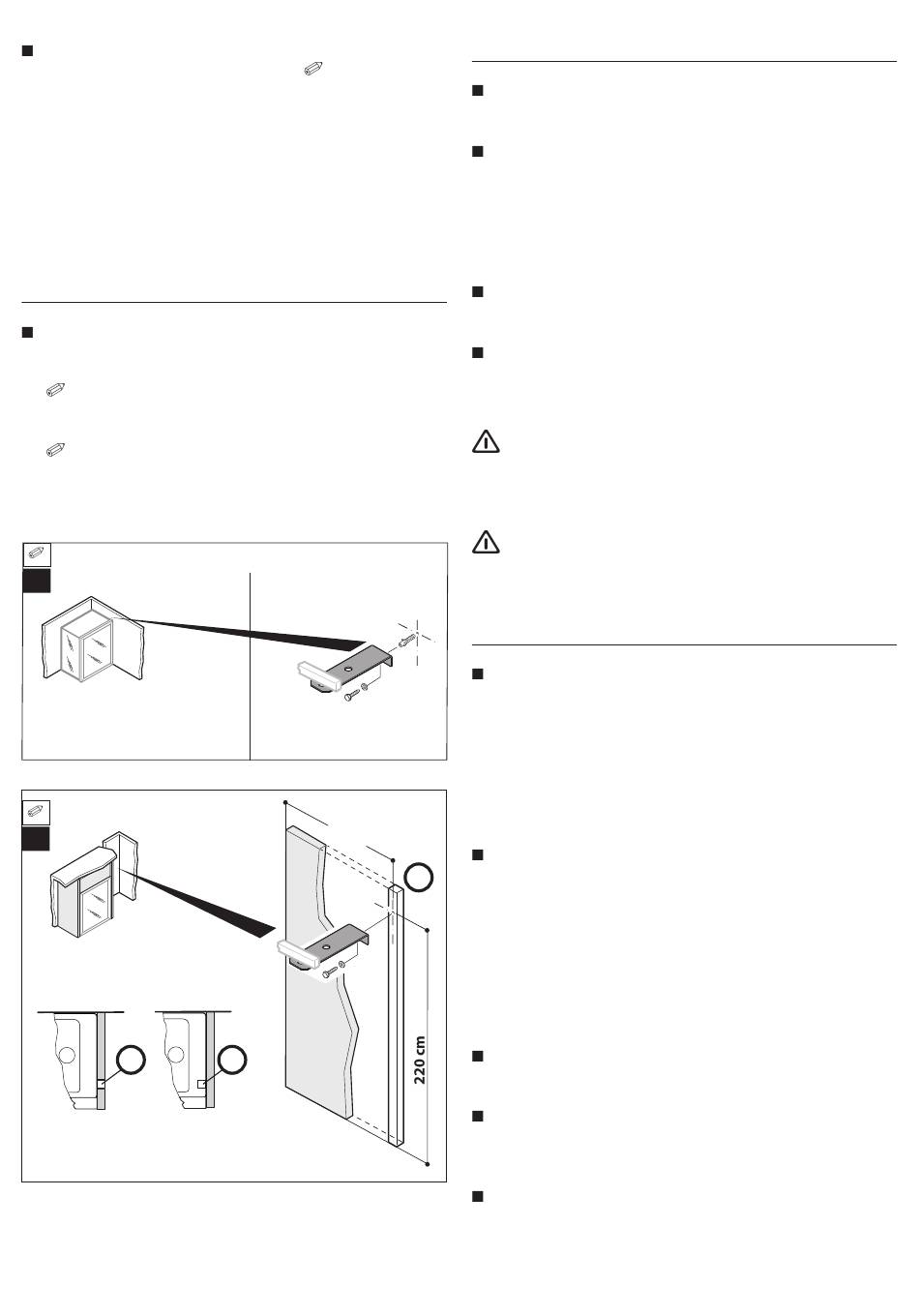

Shower enclosure assembly
The Frame shower enclosure includes an assembly point
alongside the panel metal frame which houses the brassware.
( 4a) Where installed in a corner, seeing as the frame is
next to walls, there are no particular problems.
( 4b) Where installed in an alcove, a suitable structure
(S) must be provided next to the indicated point, to which the
shower enclosure can be linked.
4a
4b
S
OK
3-3a-3b-3c which
60 cm (frame 100)
62,5 cm (frame 120)
S
NO!
Drain preparations and water connections
We recommend arranging the shower enclosure drainage as
demonstrated in positions 1 or 1a.
To connect to the hot-cold water system, we recommend us-
ing 90° - 1/2" joints and placing them in the indicated area (posi-
tion 5).
Where installed in an alcove, provided enough space is left, the
water supply can emerge from behind the shower enclosure
(position 5b).
We recommend avoiding junctions on supply pipes to avoid
pressure drop and subsequently, reduced water device power.
To ensure correct appliance operation, the pressure and flow
rate values which power the shower enclosure must comply
with the values specified in the table "Hydraulic specifications".
Where "hard" water is present, it is advisable to install
a decalcifier in the water system supplying water to the
appliance, in order to reduce and/or avoid calcareous
deposits.
ATTENTION: (IEC 60335-1/A2) The pressure of the wa-
ter system supplying water to the appliance must not
exceed 600 kPa (6 bar).

Electrical connections

The power supply cable must be installed near the indicated
position (ref. 2), leaving it long enough so it can be connected
to the box (fastened to the frame). The cable can follow various
paths provided that there are no loose connections; refer to the
chapter on "Electrical safety".
Where installed in an alcove, provided enough space is left,
the electrical supply can emerge from behind the shower enclo-
sure (position 2b).
The electrical connection can be made as follows:
S
Frame 100 - Frame 120
- single-phase line (220-240V 1~)
Frame In 2
- single-phase line (220-240V 1~)
- three-phase line consisting of two phase conductors + neu-
tral conductor (380-415V 2N~)
The rated power supply voltage of the equipment is al-
ways 220-240V.
The equipment can also be installed in Countries where
the 220-240V voltage is supplied by a two-phase system. For
the connection please refer to the instruction manual.
Some models allow you to connect the appliance to an alarm
circuit (provided, in the area marked with the bell symbol), a
bipolar cable with characteristics not inferior to type H 05 VV-F
