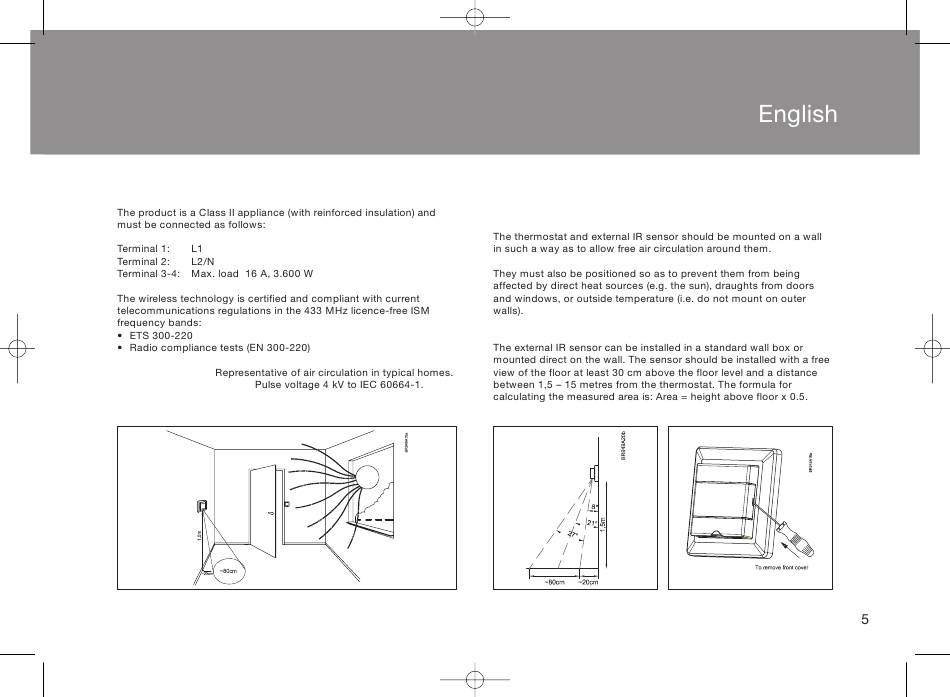

Type OTD2 with wireless IR floor sensor
classification
Pollution class: 2 -
Overvoltage category: III -
Fig. 1
9:14 Side 5
© 2011 OJ Electronics A/S

INSTALLATION

Thermostat with built-in room sensor and IR sensor
IR sensor
Fig. 2 Fig. 3
