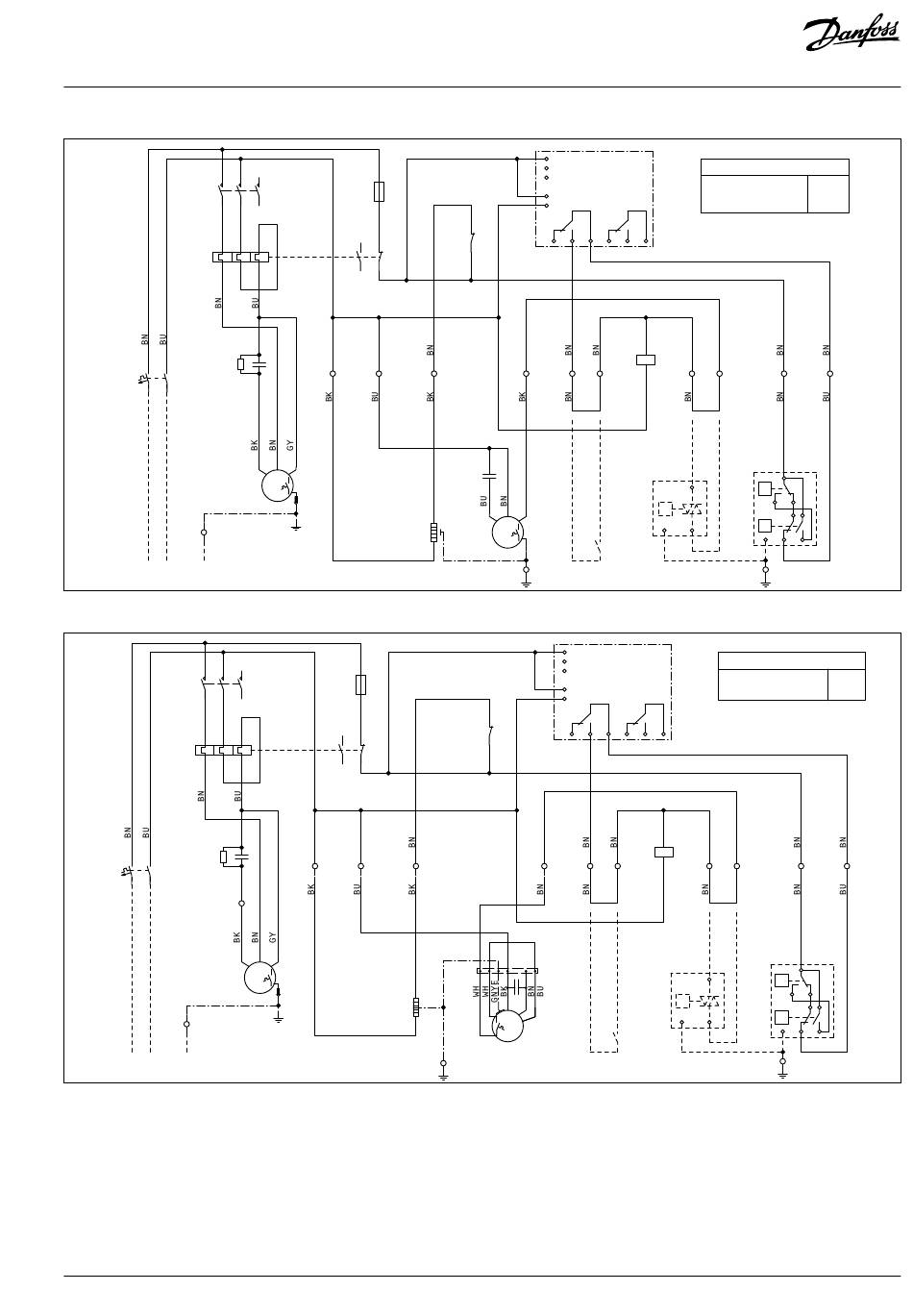

Instructions
Code G : OP-MSXM034 - 046 - 057
1
-K1
2
1
-F2
xxA
2
-C1
-F1
-R1
-M1
-X1
PE
L N PE
230V1N~/50Hz
Code G : OP-MSXM068 - 080
1 3
-K1
2 4
1 3
-F2
xxA
2 4
-C1
-F1
-R1
-X1
-M1
-X1
PE
L N PE
230V1N~/50Hz
Legend
BK black
BU blue
BN brown
GY grey
RD red
WH white
FRCC.PI.026.A8.02
1
3 5
-F3
3A
4 6
2
3 5
95
97
98
96
4 6
N1 N2
S C R
M
1~
PE
-E1
1
5
-F3
3A
6
2
5
95
97
98
96
6
N1 N2
S
S C R
M
1~
PE
-E1
-X1
A1 Voltage relay
B1* Fan speed controller (option)
B2 High and Low pressure switch
C1 Run capacitor compressor
C3 Run capacitor fan
E1 Crankcase heater
F1 Main switch
F2 Overload relay
F3 Fuse control circuit
-A1
L1
L2
L3
P
N
21
-K1
16 18 15
22
1 2 3
-C3
1
M
-M2
1~
2
-X1
PE
-A1
L1
L2
L3
P
N
21
-K1
16 18 15
22
1 2
-C3
1
-M2
1~
2
M
PE
M1
M2
K1
K2
R1
S1*
X1
*
-F2
SM500
MG73BF
OP-MSXM034MLW05G
OP-MSXM046MLW05G
OP-MSXM057MLW05G
26 28 25
-K1
A1
A2
4 5 6
-B2
-B1*
2
P<
P
P>
PE 1
-S1*
-X1
SM500
MG73BF
OP-MSXM068MLW05G
OP-MSXM080MLW05G
26 28 25
-K1
A1
A2
3 4 5 6
-B1*
2
P
PE 1
-S1*
-X1
Compressor
Fan motor
Contactor
Start relay
Bleeder resistor
Room thermostat (option)
Terminals
Option (remove bridge)
© Danfoss | DCS (CC) | 2016.11 | 7
19A
25A
26A
7 8
A
B
D
PE C
№3
PE
-F2
32A
38A
7 8
-B2
A
P<
B
P>
D
PE C
№4
PE
