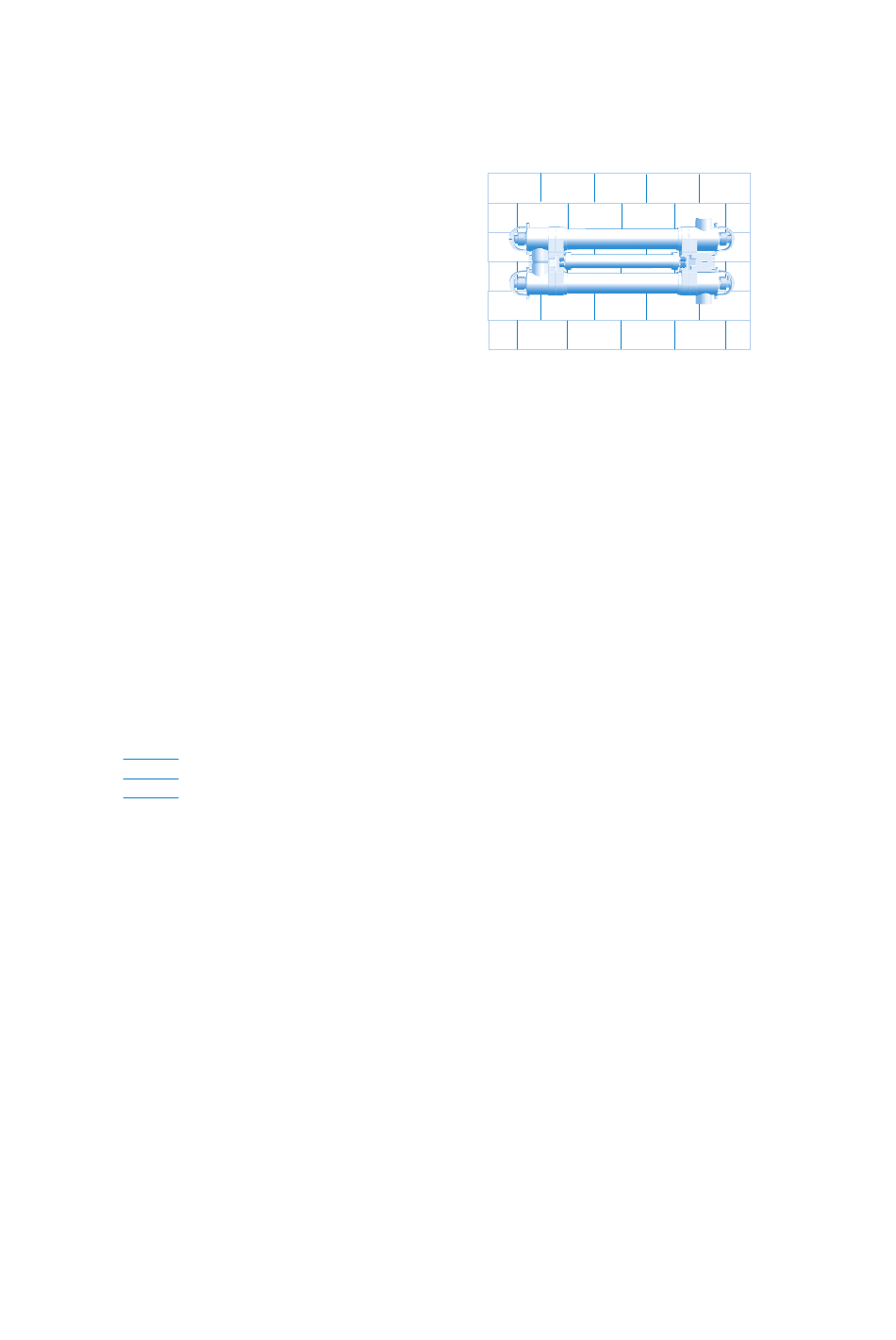

MOUNTING ON A WALL OR OTHER VERTICAL SURFACE
This unit may be mounted on a wall or other suitable vertical surface. When full of water the unit is too heavy
to mount onto a conventional wooden fence panel and therefore it should be mounted on a wall as shown in
the diagram below, using the mounting kit provided.
Caution: To prevent this unit falling into water, do not
install it above or alongside your pool. Do not make the
electrical connection to your unit until it has been
plumbed in and fixed securely.
The mounting kit consists of six sets of screws, washers and
rawlplugs. If mounting onto brick use the rawlplugs. Identify
the mounting plate at either end of the unit. Assuming the
unit is mounted as shown above, use the open slot in the left
hand mounting plate and the long centre slot in the right hand mounting plate to register and fix the unit. Then
mark the upper and lower slots on each mounting plate. Use all six fixings to mount the unit, and ensure the
washer is fitted between the head of the screw and plastic mounting plate.
CONNECTION TO THE WATER SUPPLY
This unit has stepped inlet and outlet ports, allowing the use of either 2" or 63mm rigid BSP plastic pipe. If using 2" BSP
plastic pipe the glued connection will be made into the inner, second stepped stage of the inlet and outlet ports. If using
63mm rigid plastic pipe the connection will be made to the outer, first stepped stage of the inlet and outlet ports.
The unit may also be connected to flexible plumbing using the appropriate plumbing fittings (not supplied). To
ensure unrestricted flow, it is recommended that the unit is not plumbed in with anything less than 1
pipework.
FLOW RATES
Please note that, for optimum performance, we recommend that you pass the entire volume of your pool
through the UV unit approximately once every 3 hours.
Unit
UV110
CONNECTION TO ELECTRICAL SUPPLY
Consult a qualified electrician.
Caution: Use in the area of the pool only if the installation complies with the relevant wiring regulations.
Caution: Always disconnect all pool appliances from the mains electricity supply before servicing
Caution: Power must be supplied through a Residual Current Device (RCD) with a rated residual operating current
not exceeding 30mA.
Important: This unit is designed to be permanently wired to the mains supply using the three core 0.75mm
cable fitted to the unit. This unit must be permanently connected to the mains supply inside a dry, weatherproof
enclosure and through a double pole switched fused spur with a minimum contact gap of 3mm.The fused spur must
only be fitted with a 3 amp fuse. For safety never use a higher rated fuse.
This unit is fitted with 5 metres of power cable.To prevent the unit inadvertently being dropped into the pool,
we strongly recommend that it is securely positioned at least 2 metres from the edge of the pool. Any flexible
cabling used between the unit and the permanent wiring should also be kept to a minimum length. We recommend a
maximum length of 1.5 metres.
Mains supply cable colour coding: Brown Live, Blue Neutral,Yellow/Green Earth.
INTERNAL FUSE REPLACEMENT
Always isolate unit from mains supply before undertaking any maintenance.
The control gear on this unit is fitted with a 5mm x 20mm 3.15 Amp quick blow fuse.
Maximum Flow Rate
8000 imp gal/36000 litres/9400 US gal per hour.
2
"/50mm
1 /
2
2
rubber
